Inspection

INSPECTION

BATTERY

Measure the battery voltage and specific gravity of the electrolyte.

Standard voltage: 12 V or more

Specific gravity: 1.260 or more

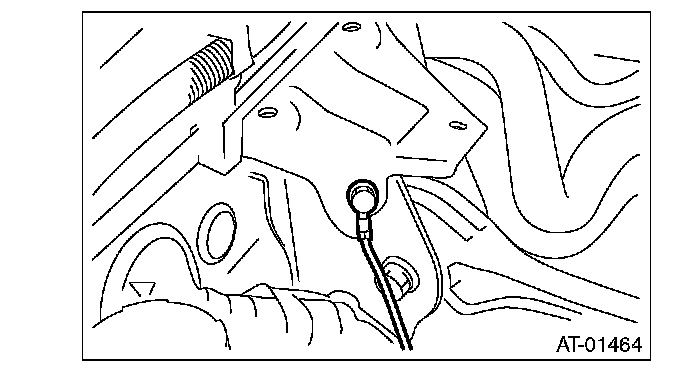

TRANSMISSION GROUND

Make sure that the ground terminal bolt is tightened securely.

^ Chassis side

Tightening torque: 13 N-m (1.3 kgf-m, 9.6 ft-lb)

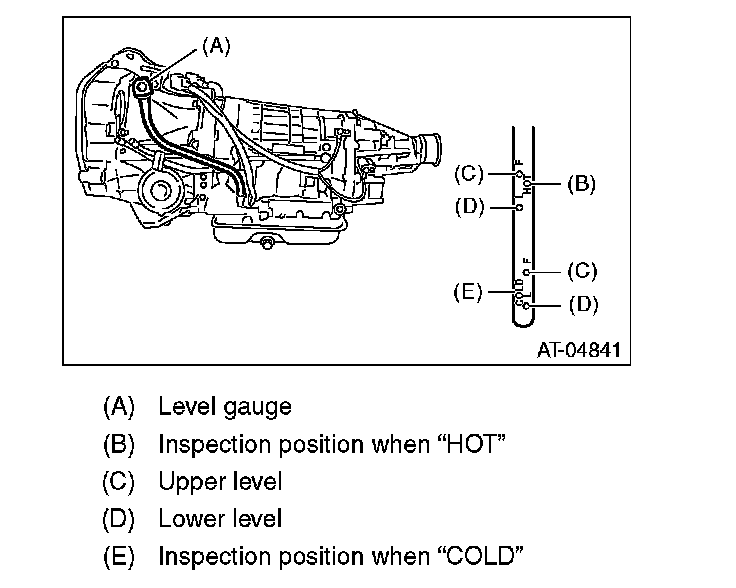

ATF LEVEL

Make sure that ATF level is the specified amount.

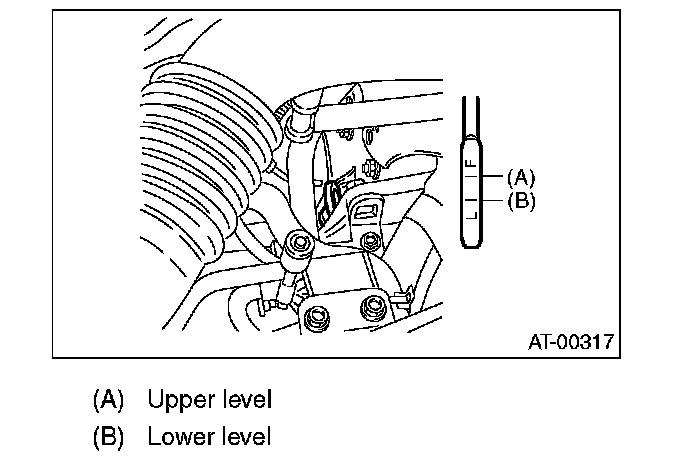

FRONT DIFFERENTIAL OIL LEVEL

Make sure the front differential oil level is at the specified amount.





OPERATION OF SELECT LEVER

Make sure there is no noise, dragging or contact pattern in each select lever range.

WARNING:
Stop the engine while checking the operation of the select lever.
