Tightening Torques

Cylinder head bolts Specifications
Camshaft caps Specifications
Cylinder block connecting bolts Specifications
Connecting rod 45 Nm (4.6 kgf-m, 33.2 ft lb)
Crank Pulley Specifications
Flywheel/Flexplate 72 Nm (7.3 kgf-m, 53.1 ft lb)
Oil pump 6.4 N-m (0.7 kgf-m, 4.7 ft-lb)

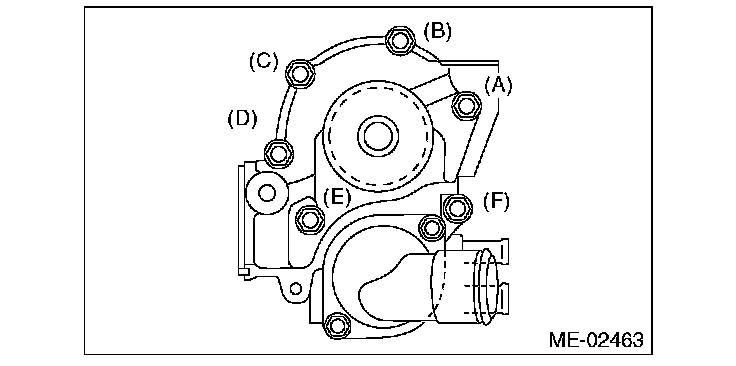

Water pump
1st 12 N-m (1.2 kgf-m, 8.9 ft-lb)
2nd 12 N-m (1.2 kgf-m, 8.9 ft-lb)
