Read Diagnostic Trouble Code (DTC)

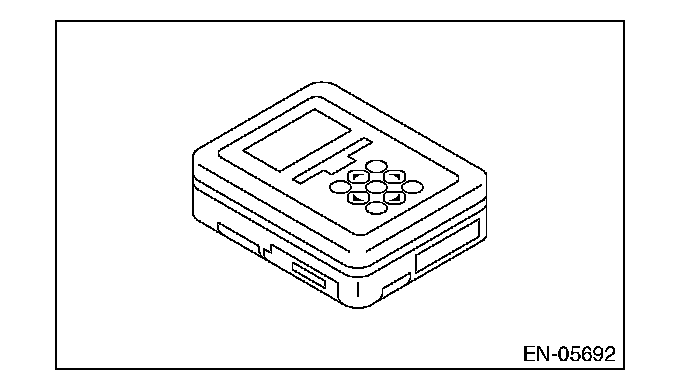

Subaru Select MonitorOPERATION
1) Prepare the Subaru Select Monitor kit.
2) Prepare PC with Subaru Select Monitor installed.
3) Connect the SDI (Subaru Diagnostic Interface) to the PC USB port (exclusively for Subaru Selector Monitor) using a USB cable.
NOTE:
Port exclusively for Subaru Select Monitor refers to the USB port used when installing Subaru Select Monitor.
4) Connect the diagnosis cable to SDI.

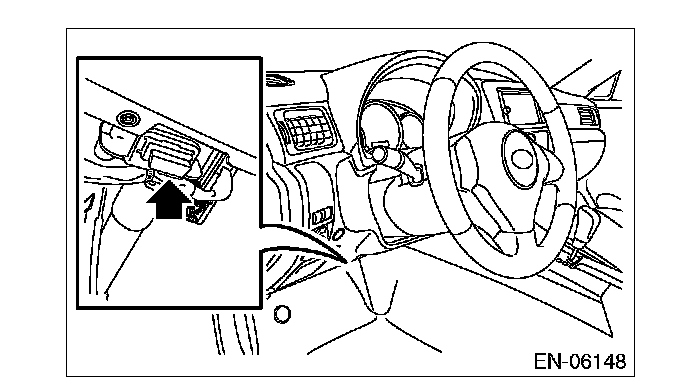

5) Connect the SDI to data link connector located in the lower portion of the instrument panel (on the driver's side).
CAUTION:
Do not connect the scan tools other than the Subaru Select Monitor.
6) Start the PC.
7) Turn the ignition switch to ON.
8) Run the "PC application for Subaru Select Monitor".
Read Diagnostic Trouble Code (DTC)
OPERATION
1) Using the Subaru Select Monitor, select (Each System Check) in the [Main Menu].
2) On the [Each System Check Menu] screen, select (Transmission Control System).
3) After transmission type information is displayed, select [OK].
4) On the [Transmission Diagnosis], select (Diagnostic Code(s) Display).
5) On the [DTC Display] screen, select (Temporary Diagnostic Code(s)) or (Memorized Diagnostic Code(s))
NOTE:
^ For details concerning the work procedure, refer to the "PC application help for Subaru Select Monitor".
^ For details concerning DTC, refer to List of Diagnostic Trouble Code (DTC). List of Diagnostic Trouble Codes (A/T)
