Camshaft Position Sensor: Service and Repair
Camshaft Position SensorREMOVAL
1. CAMSHAFT POSITION SENSOR RH

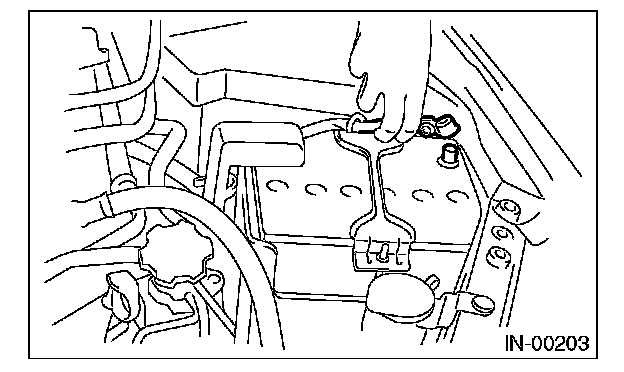

1. Disconnect the ground cable from battery.

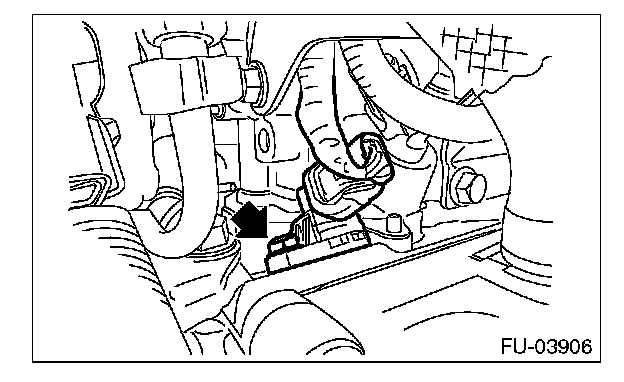

2. Disconnect the connector from camshaft position sensor RH.
3. Remove the camshaft position sensor RH from the rear side of the cylinder head.
2. CAMSHAFT POSITION SENSOR LH
1. Disconnect the ground cable from battery.
2. Remove the intake manifold.

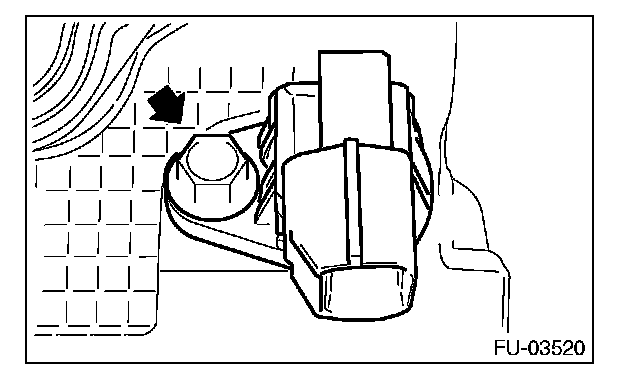

3. Remove the camshaft position sensor LH.
INSTALLATION
Install in the reverse order of removal.
Tightening torque: 6.4 N.m (0.7 kgf.m, 4.7 ft.lb)
