Manifold Pressure/Vacuum Sensor: Service and Repair

Manifold Absolute Pressure Sensor

REMOVAL

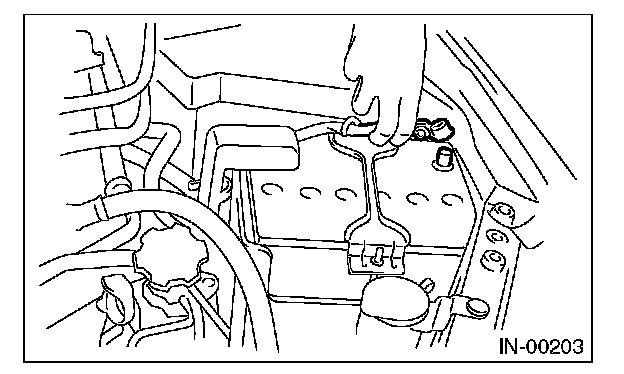

1. Disconnect the ground cable from battery.

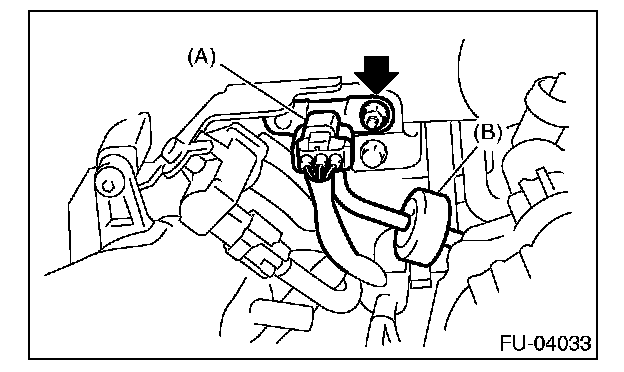

2. Disconnect the connector from manifold absolute pressure sensor (A), and remove the filter assembly (B) from intake manifold.
3. Remove the manifold absolute pressure sensor from the solenoid valve bracket.

INSTALLATION
Install in the reverse order of removal.

Tightening torque: 6.4 N.m (0.7 kgf.m, 4.7 ft.lb)
