System Specifications

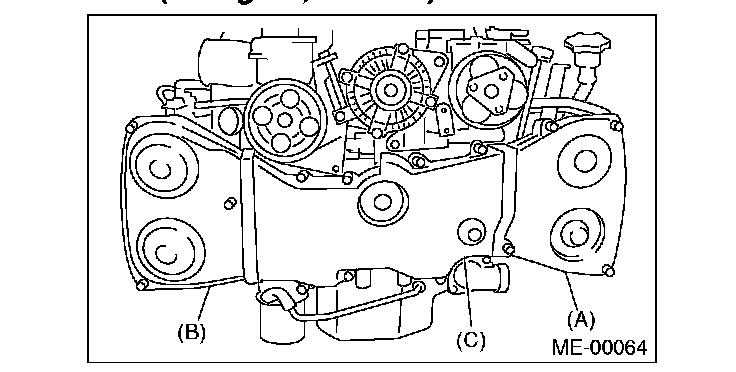

Timing belt cover (C) 5 Nm (0.5 kgf-m, 3.7 ft-lb)
Timing belt cover RH (B) 5 Nm (0.5 kgf-m, 3.7 ft-lb)
Timing belt cover LH (A) 5 Nm (0.5 kgf-m, 3.7 ft-lb)





Crank Pulley
AT MODEL
Tighten temporarily 44 Nm (4.5 kgf-m, 32.5 ft-lb)
Tightening torque 130 Nm (13.3 kgf-m, 95.9 ft-lb)
MT MODEL
Tighten temporarily 44 Nm (4.5 kgf-m, 32.5 ft-lb)
Tighten 65° to 75°

Automatic belt tension adjuster 39 Nm (4.0 kgf-m, 28.8 ft-lb)
