Keyless Entry Receiver: Service and Repair
Keyless Entry Control ModuleREMOVAL 1.
Disconnect tine ground cable from battery.
2.
Remove the left rear quarter trim.
3.
Disconnect the harness connector.
4.

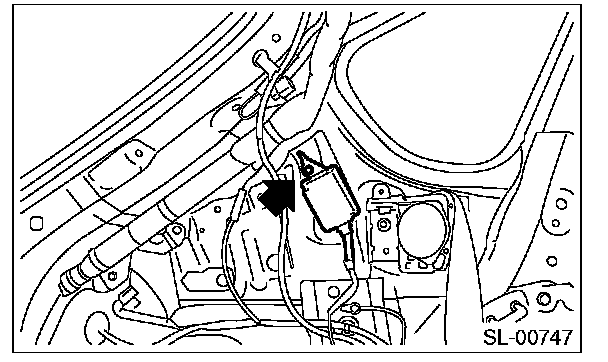

Remove the bolt and then remove the
keyless entry control module.
INSTALLATIONInstall in the reverse order of removal.
Tightening torque: 13 N.m (1.33 kgf-m, 9.6 ft-lb)
