Keyless Entry Transmitter Battery: Testing and Inspection

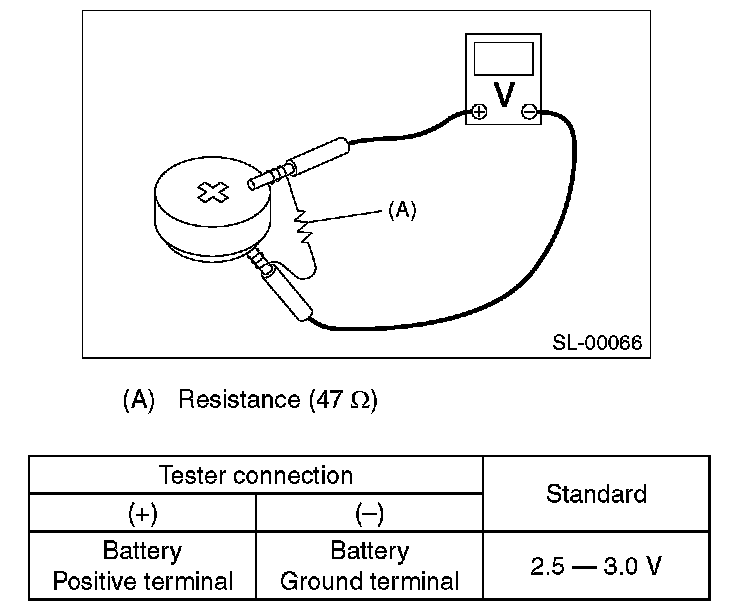

TransmitterINSPECTION 1. TRANSMITTER BATTERY Measure the voltage between the keyless transmitter battery (+) terminal and (-) terminal.
NOTE: Battery discharge occurs during the measurement. Complete the measurement within
5 seconds.
If NG, replace the battery. (Use CR2025 or equivalent.)
