Cruise Control Switch: Service and Repair

Cruise Control Command Switch

REMOVAL

WARNING: Before servicing, be sure to read the notes in Restraint Systems for proper handling of the driver's airbag module.

1. Set the front wheels in straight ahead position.
2. Turn the ignition switch to OFF.
3. Disconnect the ground cable from battery and wait for at least 20 seconds before starting work.

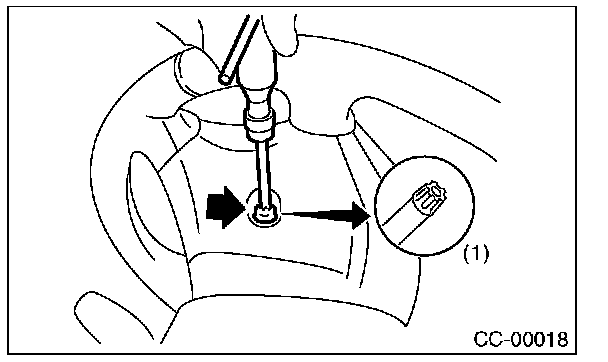

4. Using TORX(R) bit T30 (1), loosen two TORX(R) bolts which secure the driver's airbag module.






5. Disconnect the horn harness.
6. Disconnect the airbag module connector on back of the airbag module.






7. Remove the steering wheel.

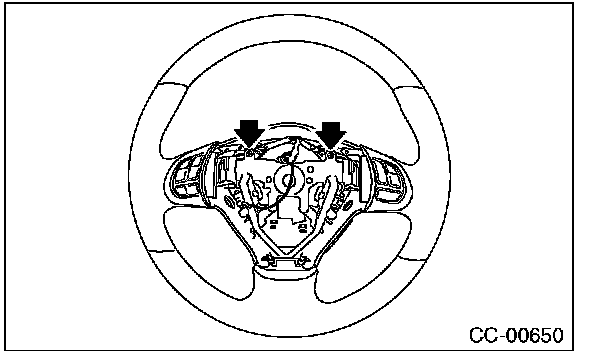

8. Remove the screws to remove the lower cover from steering wheel.

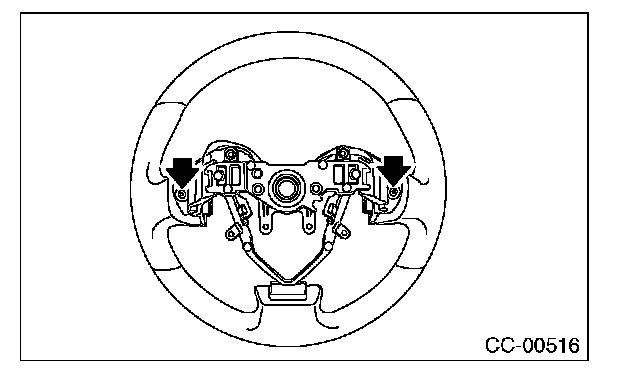

9. Remove the screws on the backside of the steering wheel to remove the cruise control command switch.






INSTALLATION

Install in the reverse order of removal.
