Control Assembly: Service and Repair
Control Unit (Auto A/C Model)REMOVAL 1.
Disconnect the ground cable from battery.
2.
Remove the ornament panel.
3.

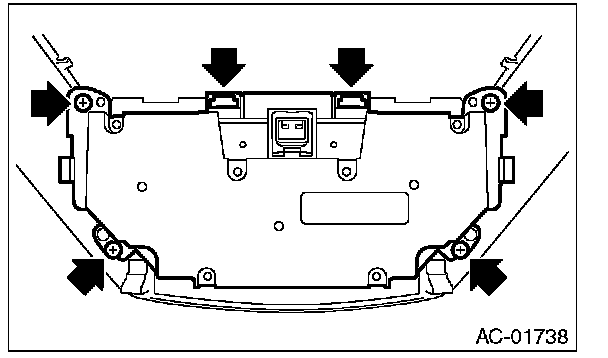

Remove the screws and claws, and remove the control module from the ornament panel RH.
INSTALLATIONInstall in the reverse order of removal.
Tightening torque: N.m (kgf-m, ft-lb)
T: 2 (0.2, 1.48)
