Front Suspension

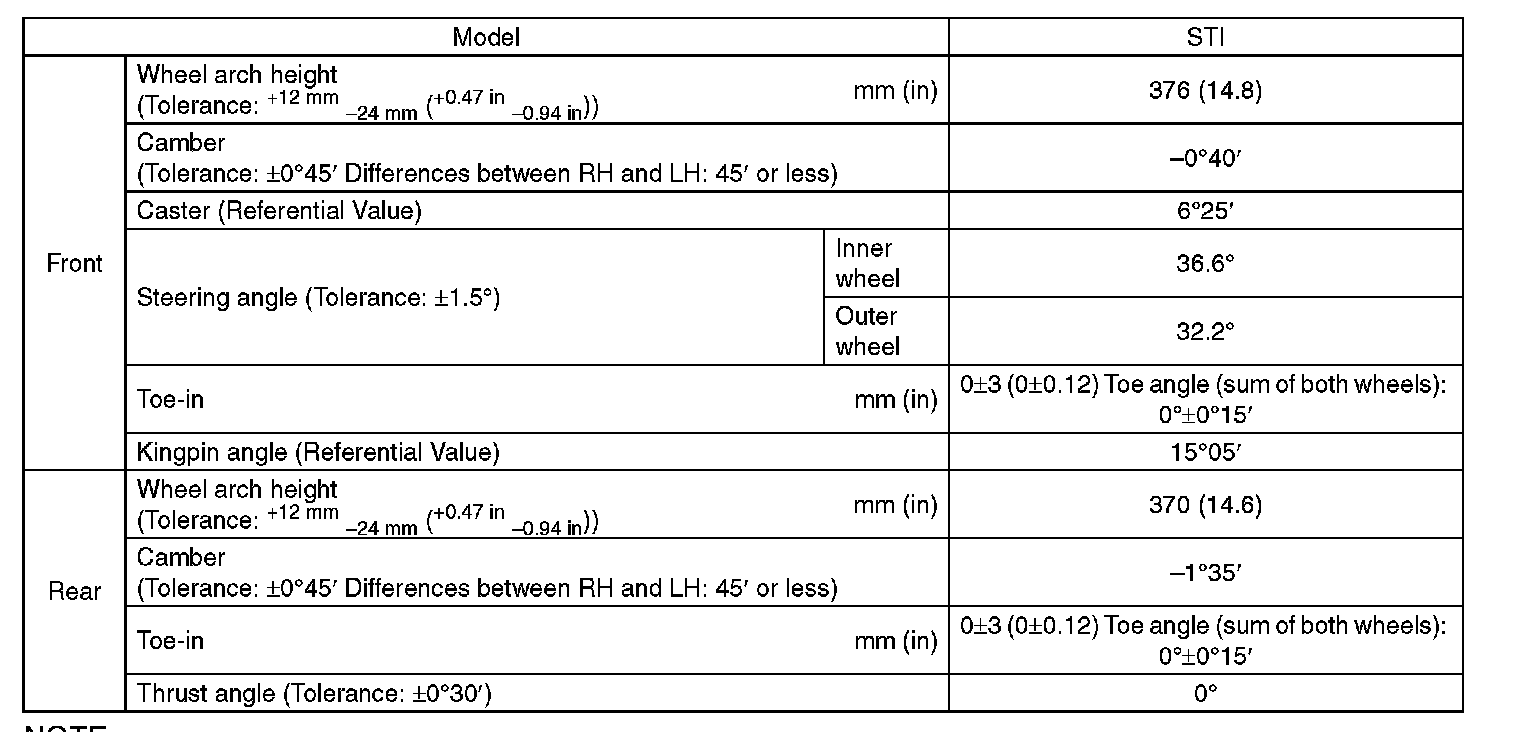

General DescriptionSPECIFICATION NOTE: ^

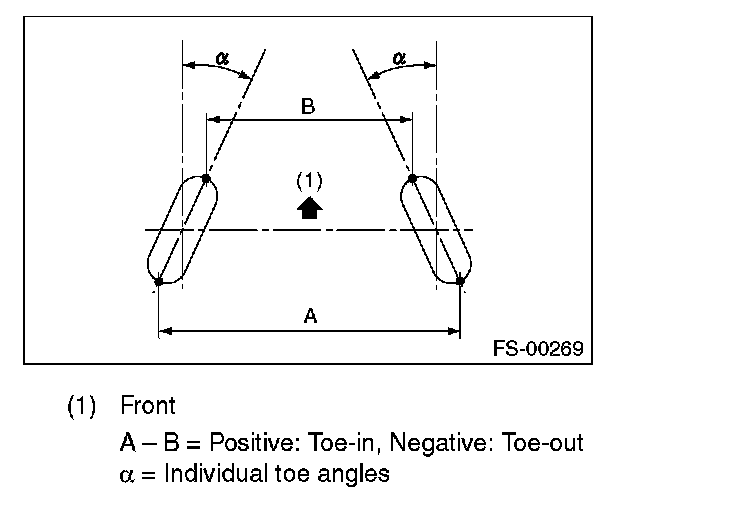

Front and rear toe-in and front camber can be adjusted. Adjust if the toe-in or camber tolerance exceeds specifications.
^
Other items indicated in the specifications is not equipped with adjustment mechanisms. If other items exceed specifications, check the suspension parts and connections for deformation, and replace with new parts as required.
