Crankshaft Position Sensor: Service and Repair
Crankshaft Position SensorREMOVAL 1.

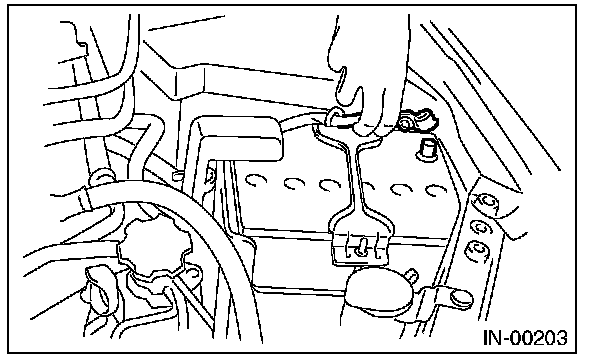

Disconnect the ground cable from battery.
2.

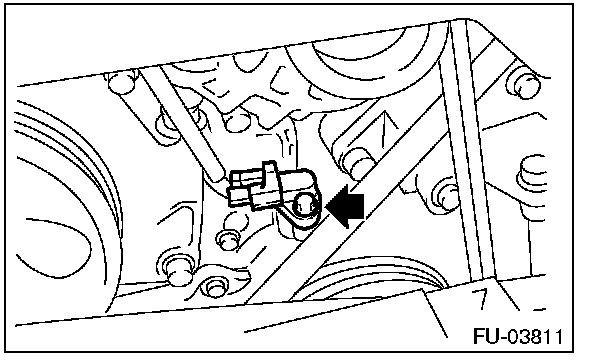

Remove the bolt which secures
crankshaft position sensor to oil pump.
3.
Remove the
crankshaft position sensor, and then disconnect the connector from it.

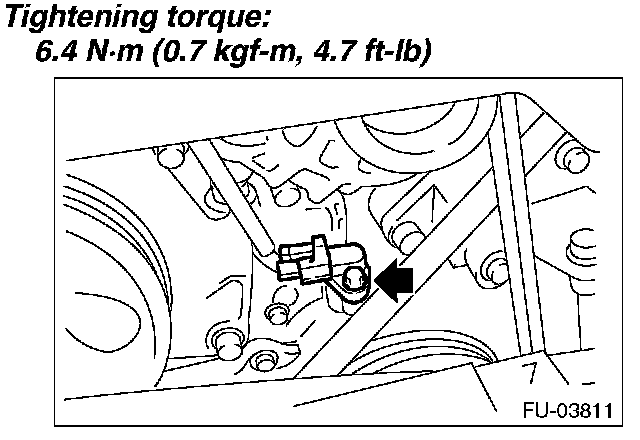

INSTALLATIONInstall in the reverse order of removal.
