Engine Mode Switch: Service and Repair

SI-DRIVE (SUBARU Intelligent Drive) Selector

REMOVAL

1. Disconnect the ground cable from the battery.






2. Remove the console box.
3. Remove the multi-selector switch connector from the console box.

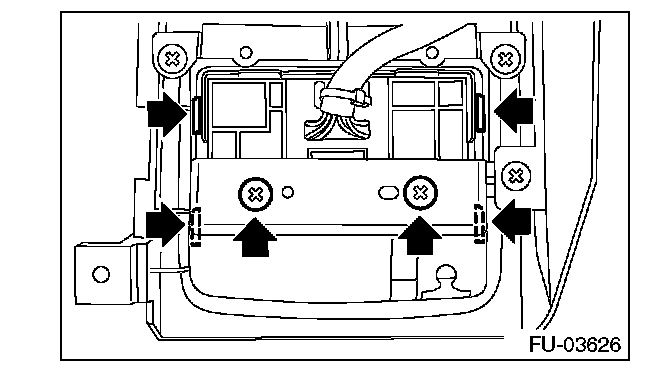

4. Remove the screws and tabs holding the multi-selector switch to the console box and the multi-selector switch.






INSTALLATION

Install in the reverse order of removal.






INSPECTION

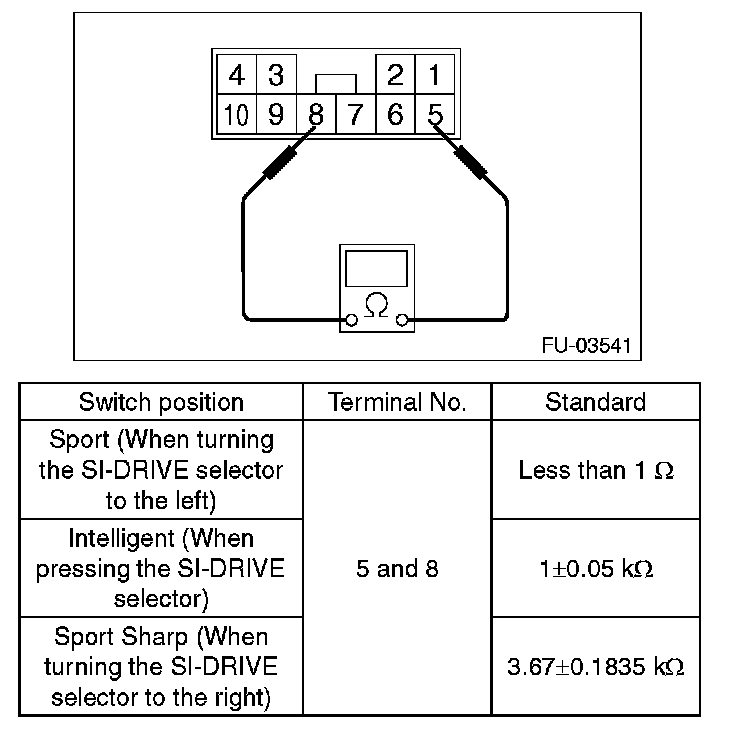

Measure the resistance between terminals of the SI-DRIVE selector.
