Fuel Tank Pressure Sensor: Service and Repair
Fuel Tank Pressure SensorREMOVAL
WARNING: Place "NO OPEN FLAMES" signs near the working area.
1. Set the vehicle on a lift.

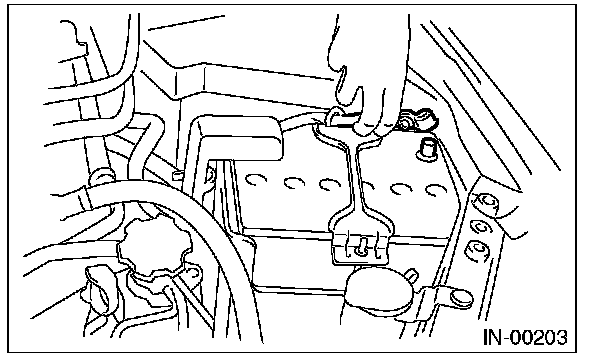

2. Disconnect the around cable from battery.
3. Open the fuel filler lid and remove the fuel filler cap.
4. Lift up the vehicle.

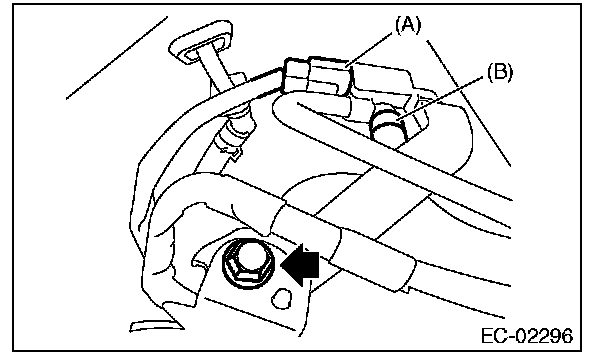

5. Disconnect the connector from the fuel tank pressure sensor (A).
6. Disconnect the pressure hose from the fuel tank pressure sensor (B).
7. Remove the fuel tank pressure sensor along with the bracket.

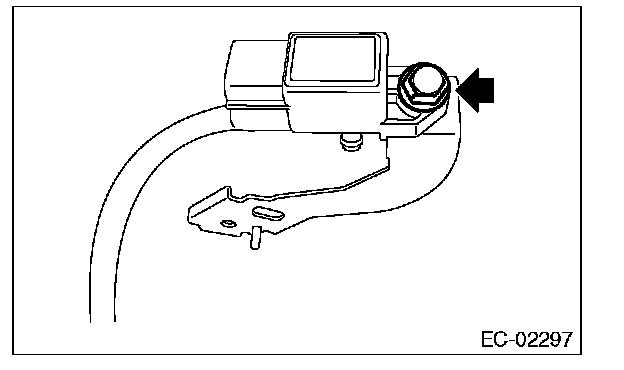

8. Remove the fuel pressure sensor from the bracket.
INSTALLATION

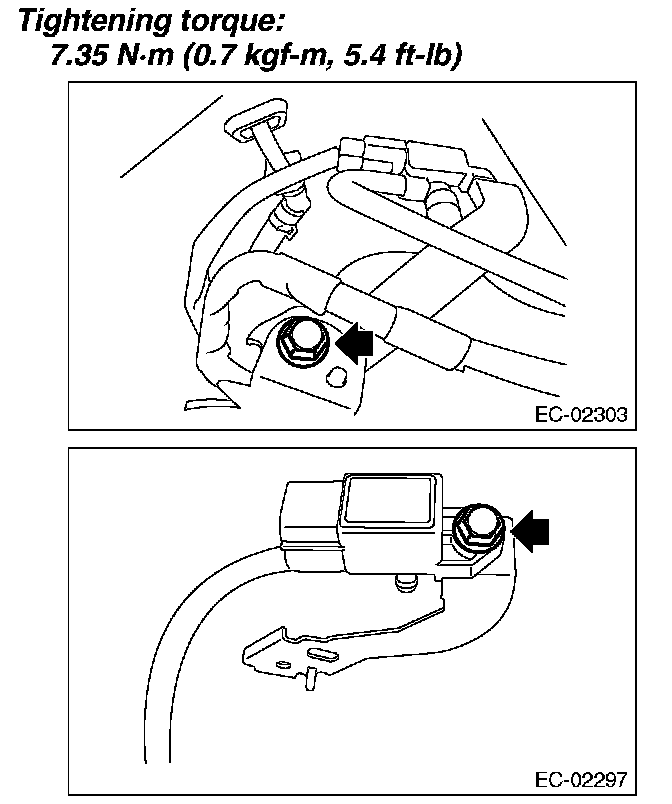

Install in the reverse order of removal.
