Fuel Tank Pressure Sensor: Testing and Inspection
Fuel Tank Pressure SensorINSPECTION 1.

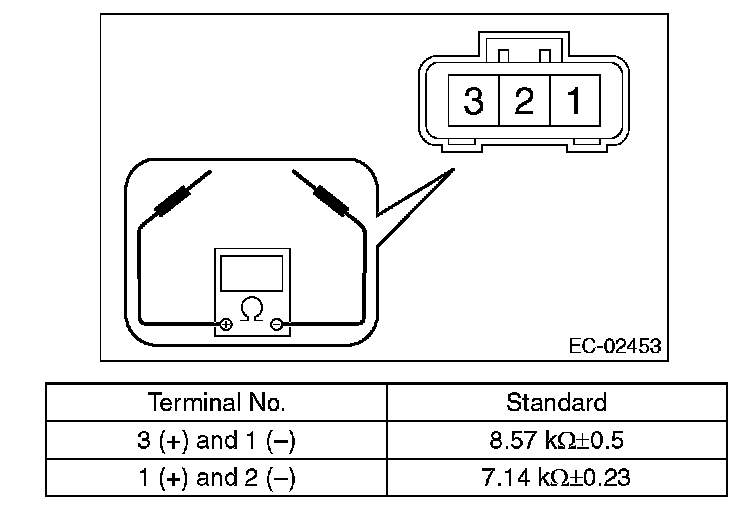

FUEL TANK PRESSURE SENSOR CAUTION: Pay attention to polarity when measuring the resistance in fuel tank pressure sensor. Measure the resistance between
fuel tank pressure sensor terminals.
2.
OTHER INSPECTIONS
Make sure the hoses are not cracked or loose.
