Manifold Pressure/Vacuum Sensor: Service and Repair
Manifold Absolute Pressure SensorREMOVAL 1.

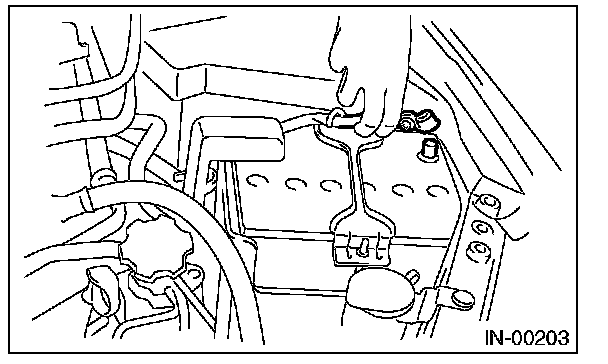

Disconnect the ground cable from the battery.
2.
Disconnect the connector from manifold absolute pressure sensor.
3.
Remove the manifold absolute pressure sensor from throttle body.
INSTALLATIONInstall in the reverse order of removal.
NOTE: Use new O-rings.
Tightening torque: 1.6 N.m (0.2 kgf.m, 1.2 ft.lb)
