Spark Plug: Service and Repair
Spark PlugREMOVAL
Spark plug:
Refer to "SPECIFICATION" for the spark plug.
1. RH SIDE

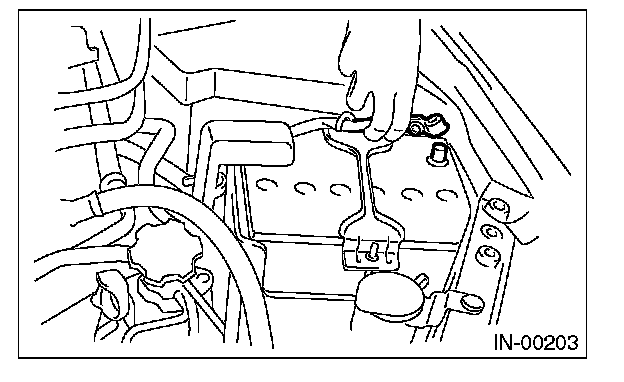

1. Disconnect the ground cable from the battery.
2. Remove the air cleaner case.
3. Disconnect the connector from ignition coil.

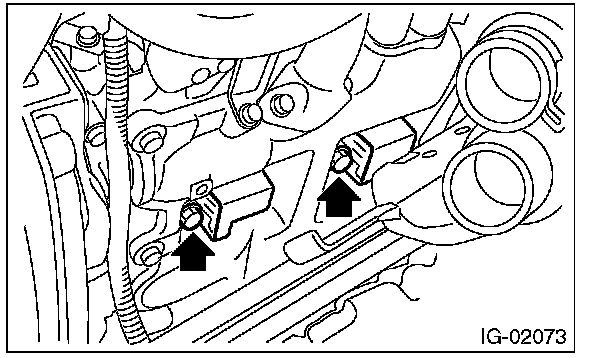

4. Remove the ignition coil.
NOTE: Turn #3 ignition coil by 180 degrees to remove it.
5. Remove the spark plug with a spark plug socket.
2. LH SIDE
1. Remove the battery.
2. Remove the secondary air pump.

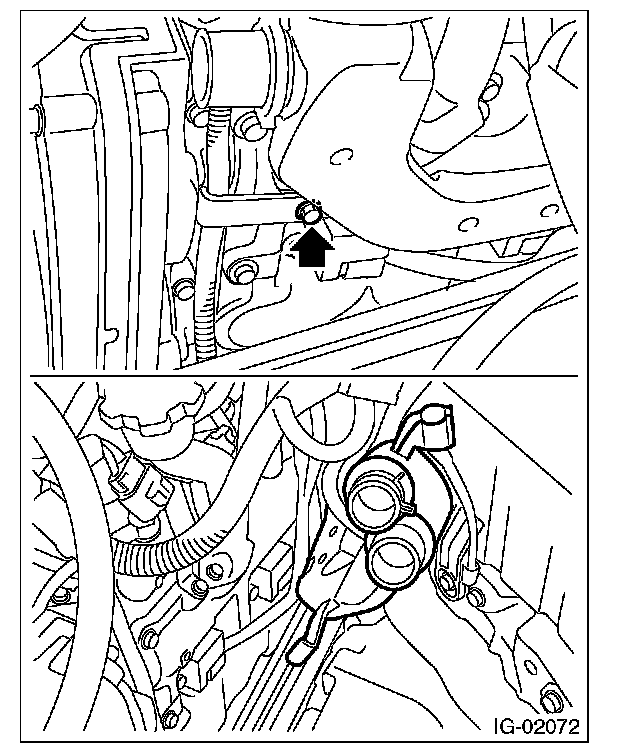

3. Remove the bolts that secure the air duct to the rocker cover LH, and lift the air duct.
4. Disconnect the connector from ignition coil.

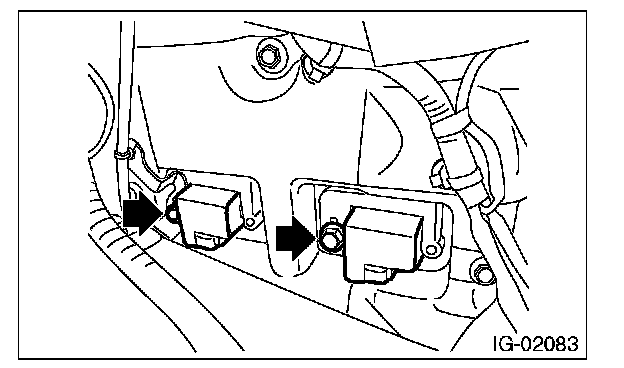

5. Remove the ignition coil.
NOTE: Turn #4 ignition coil by 180 degrees to remove it.
6. Remove the spark plug with a spark plug socket
INSTALLATION
1. RH SIDE
Install in the reverse order of removal.
Tightening torque (Spark plug): 21 N.m (2.1 kgf.m, 15.5 ft.lb)
Tightening torque (Ignition coil): 16 N.m (1.6 kgf.m, 11.8 ft.lb)
2. LH SIDE
Install in the reverse order of removal.
Tightening torque (Spark plug): 21 N.m (2.1 kgf.m, 15.5 ft.lb)
Tightening torque (Ignition coil): 16 N.m (1.6 kgf.m, 11.8 ft.lb)
Tightening torque (air pump duct): 9 N.m (0.9 kgf.m, 6.6 ft.lb)
