Engine Control Module: Testing and Inspection

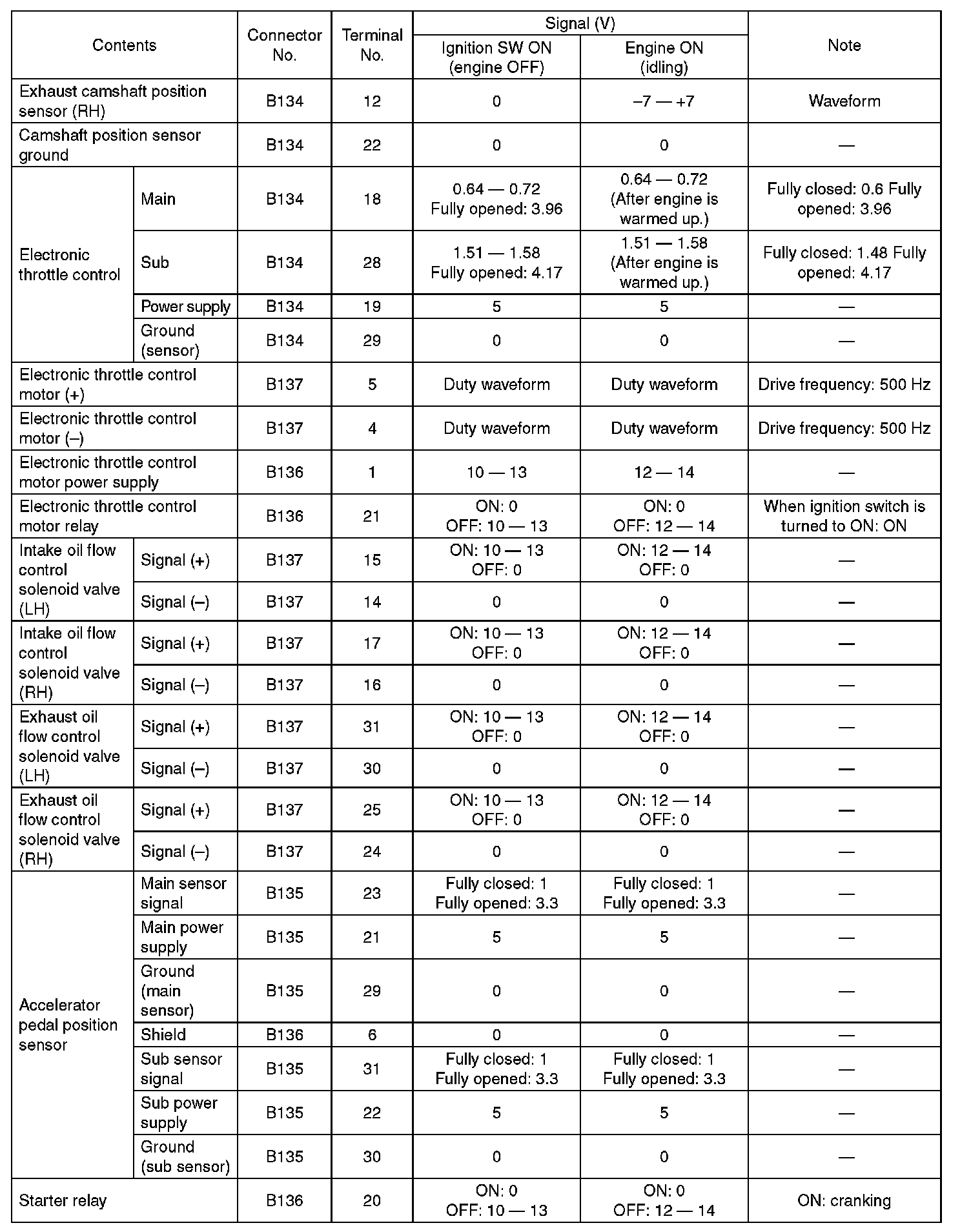

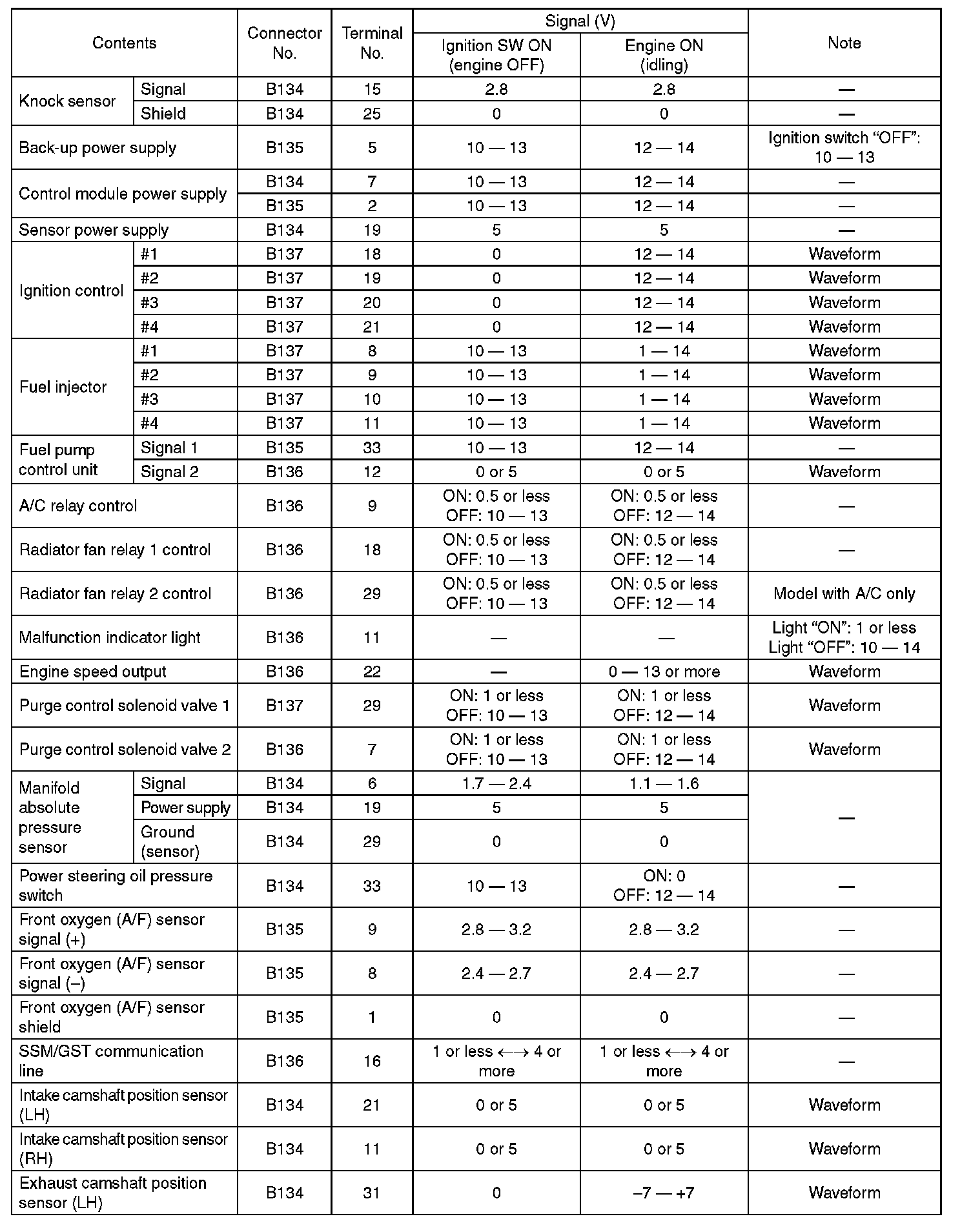

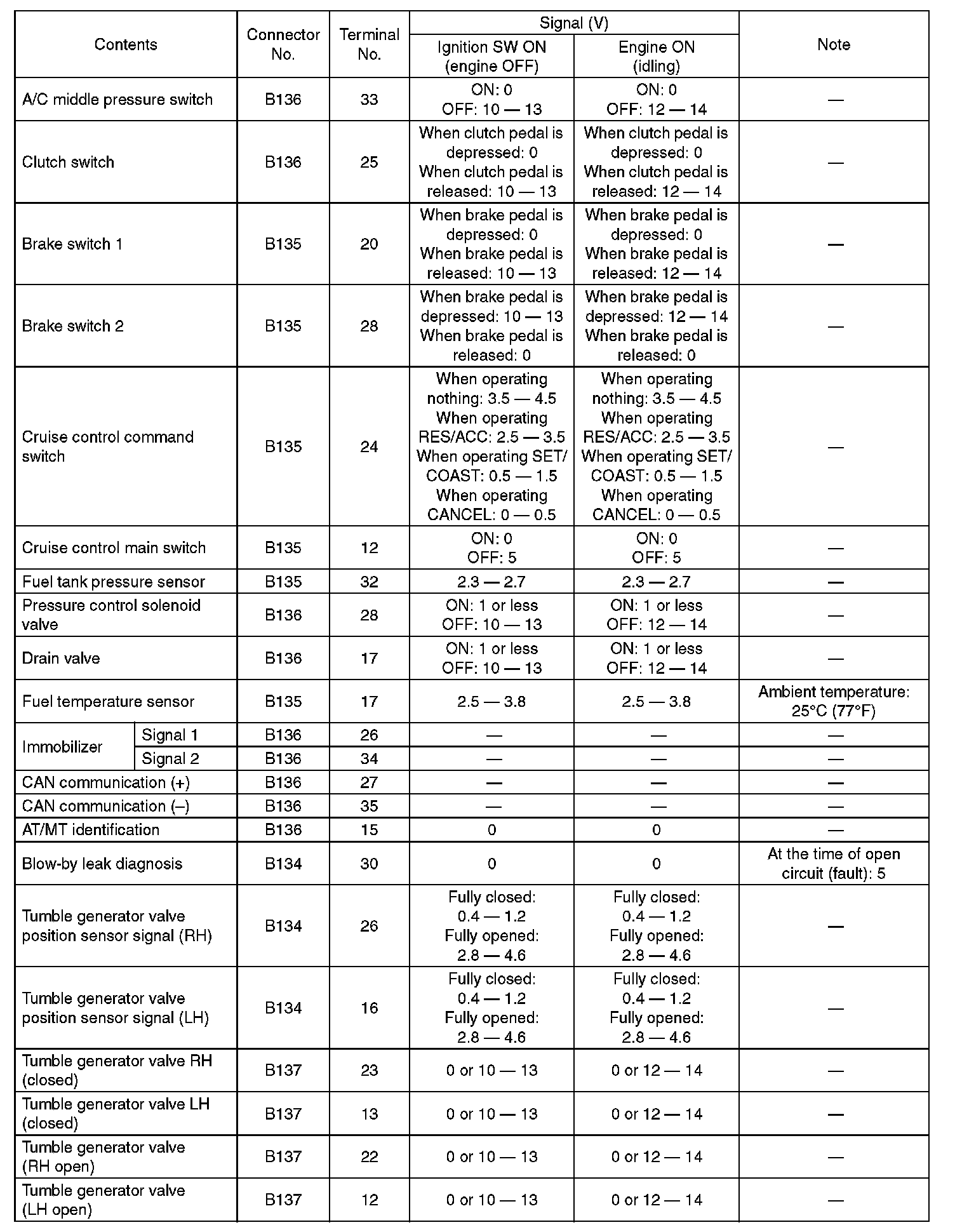

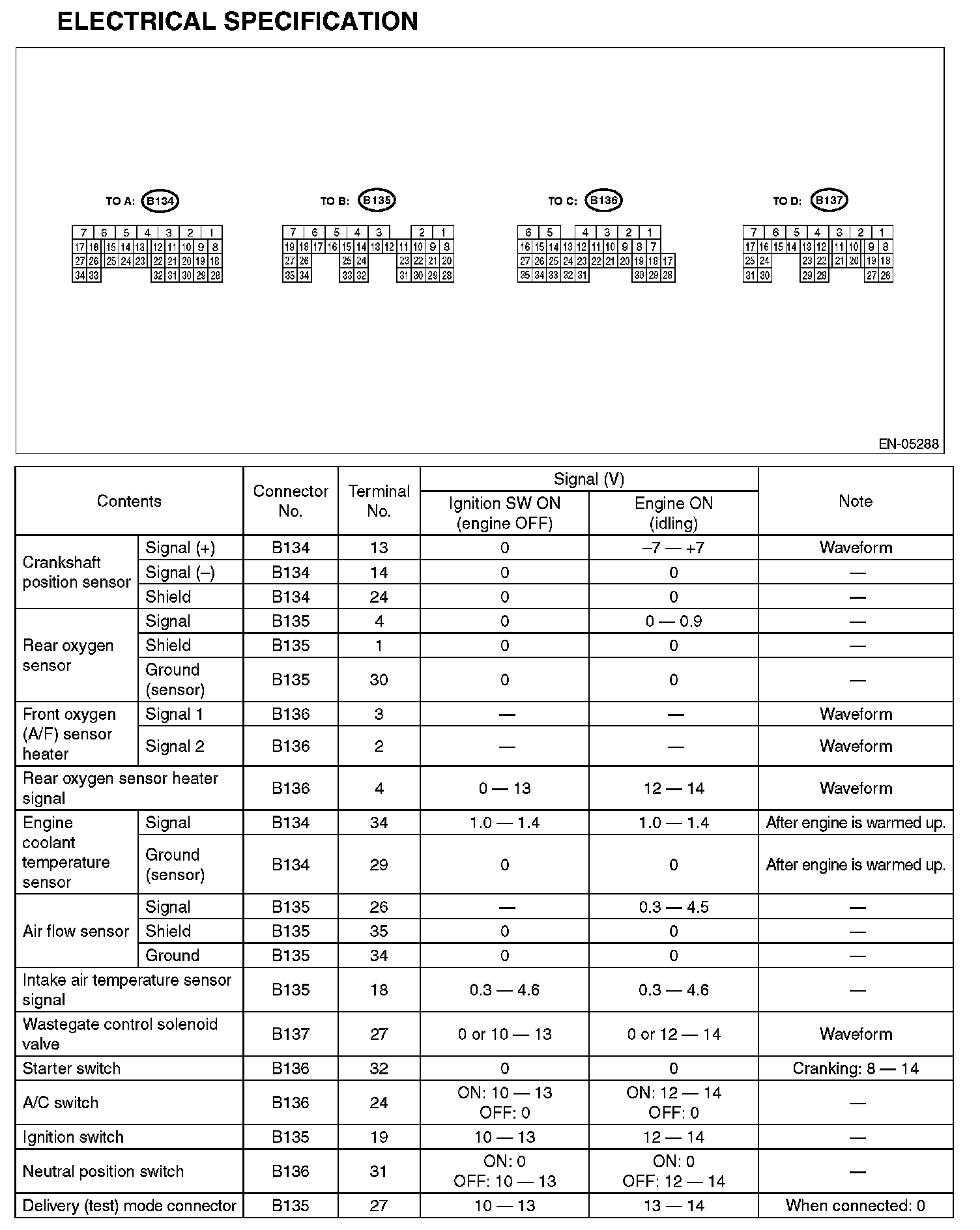

Engine Control Module (ECM) I/O Signal-Electrical Specification (Part 1):

Engine Control Module (ECM) I/O Signal-Electrical Specification (Part 2):

Engine Control Module (ECM) I/O Signal-Electrical Specification (Part 3):

Engine Control Module (ECM) I/O Signal-Electrical Specification (Part 4):

Engine Control Module (ECM) I/O Signal-Electrical Specification (Part 5):

Engine Control Module (ECM) I/O Signal-Electrical Specification (Part 6):

Engine Control Module (ECM) I/O Signal-Electrical Specification (Part 7):

Engine Control Module (ECM) I/O Signal-Electrical Specification (Part 8):

Engine Control Module (ECM) I/O Signal-Electrical Specification (Part 9):

Engine Control Module (ECM) I/O Signal-Electrical Specification (Part 10):
