Keyless Entry

Keyless Entry System

ELECTRICAL SPECIFICATION

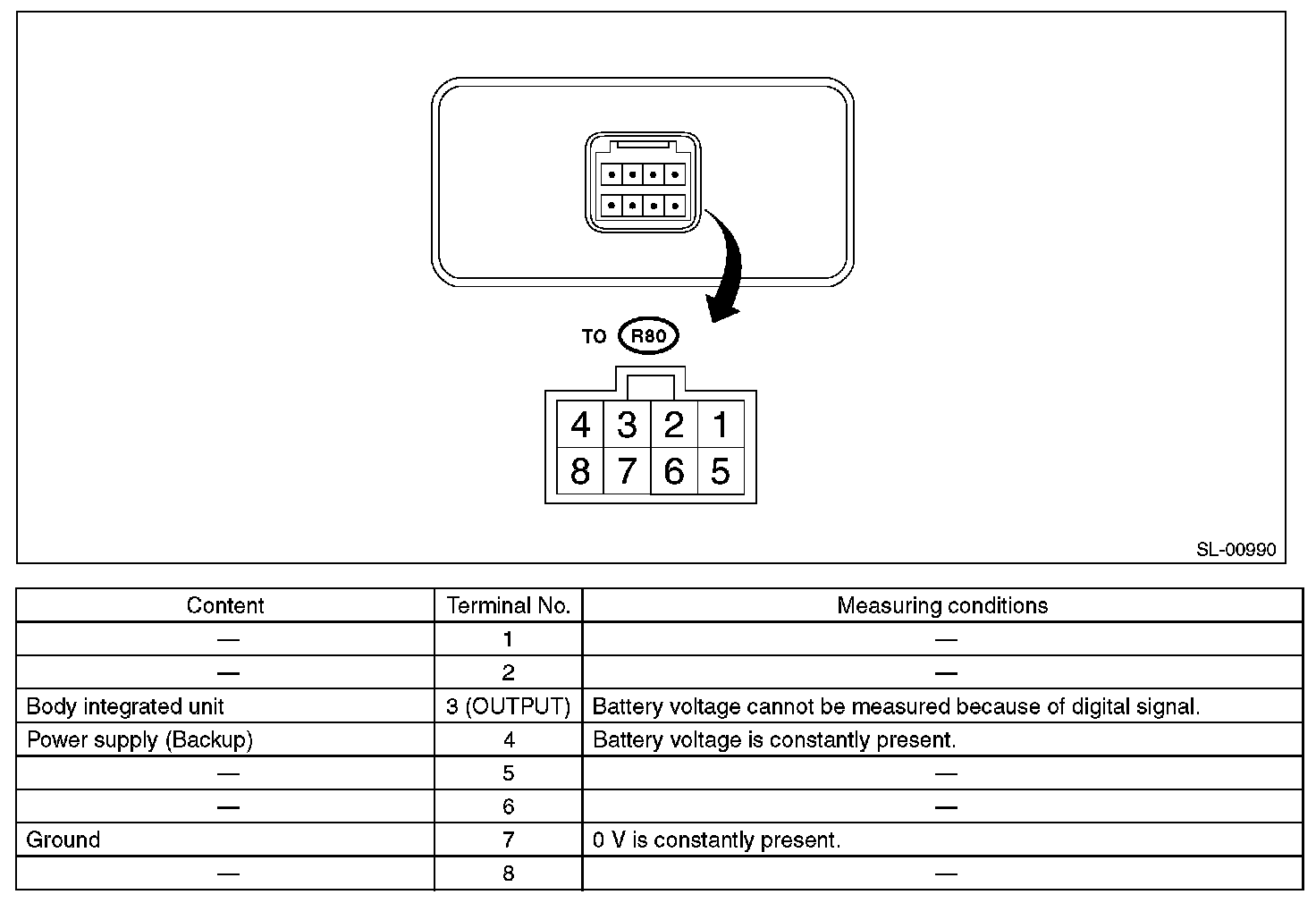

1. KEYLESS ENTRY CONTROL MODULE

2. BODY INTEGRATED UNIT
Refer to the Control Module I/O Signal of the LAN SYSTEM (DIAGNOSTICS). Control Module I/O Signal
