SI-DRIVE (SUBARU Intelligent Drive) Selector

SI-DRIVE (SUBARU Intelligent Drive) Selector

REMOVAL

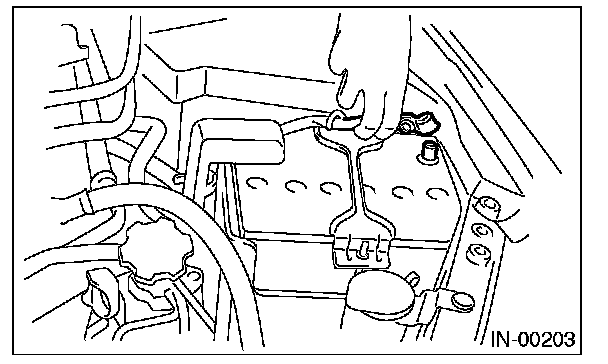

1. Disconnect the ground cable from battery.

2. Remove the console box.

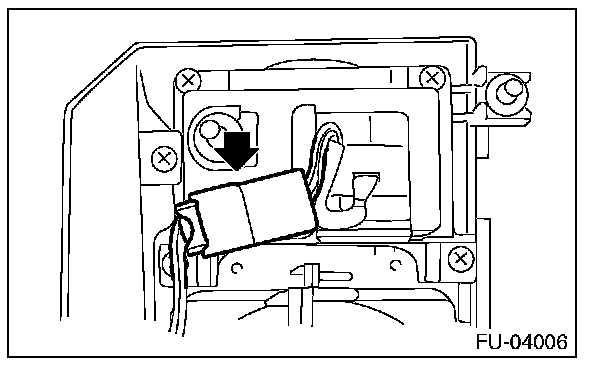

3. Disconnect the SI-DRIVE selector connector.

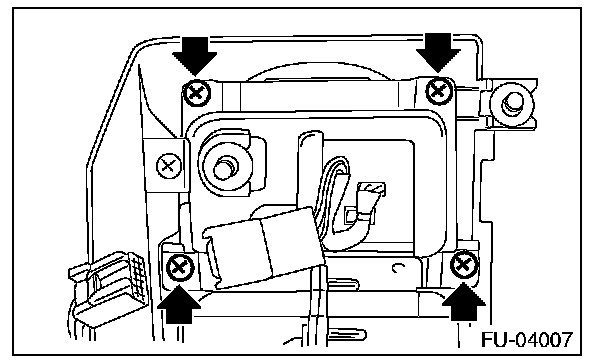

4. Remove the screws which secure the SI-DRIVE selector to the console box.

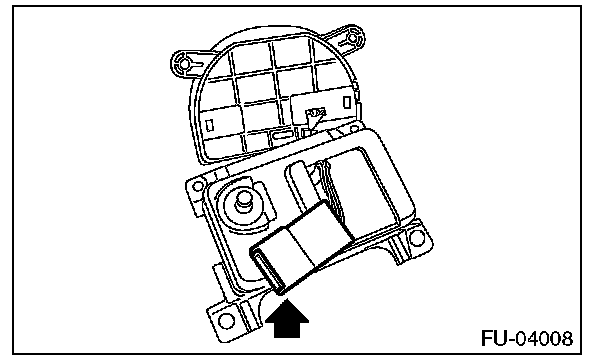

5. Disconnect the connector from SI-DRIVE selector cover, and remove the SI-DRIVE selector.

INSTALLATION

Install in the reverse order of removal.
