Trailer Hitch: Service and Repair

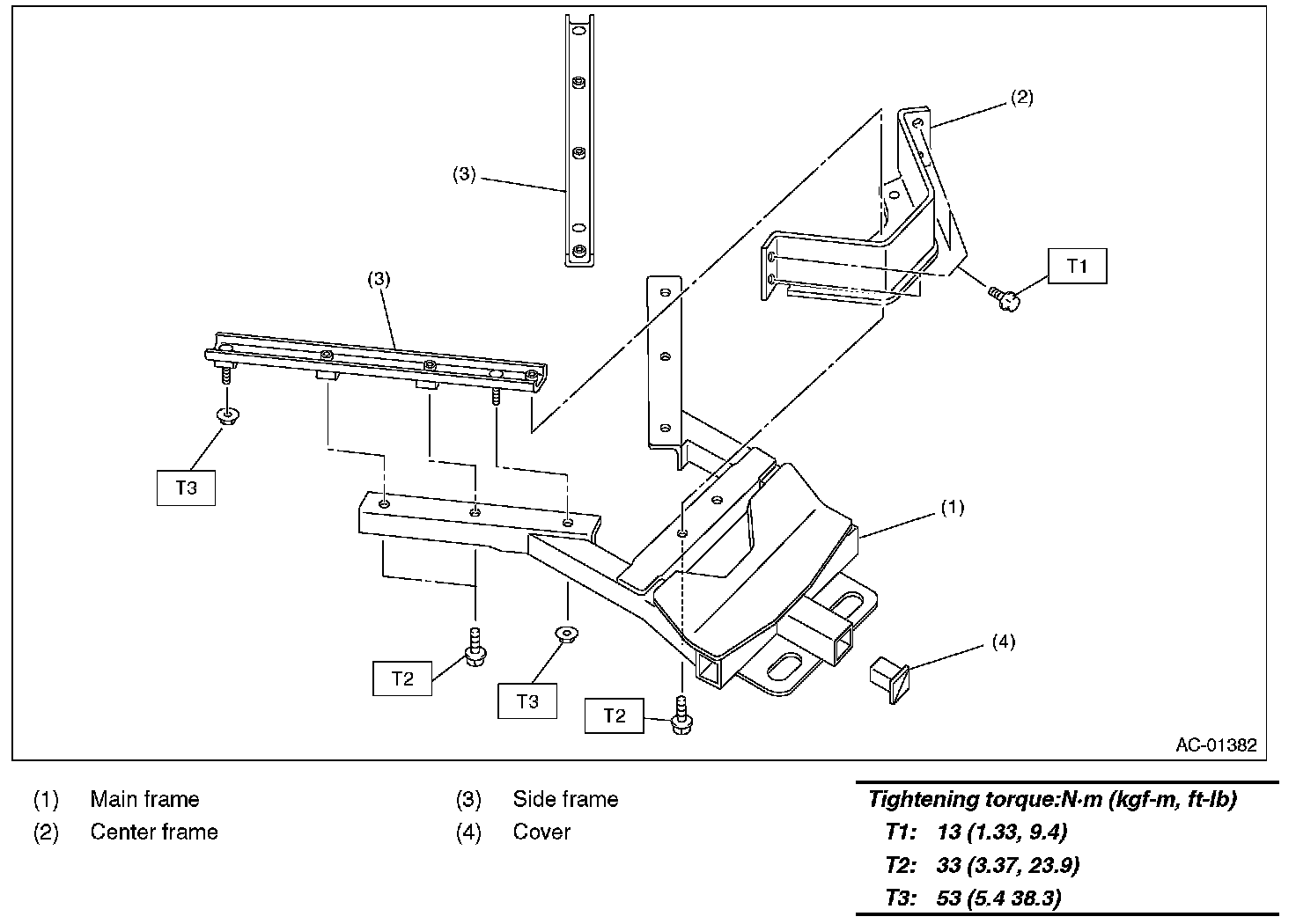

TRAILER HITCHTrailer Hitch:
REMOVAL 1.

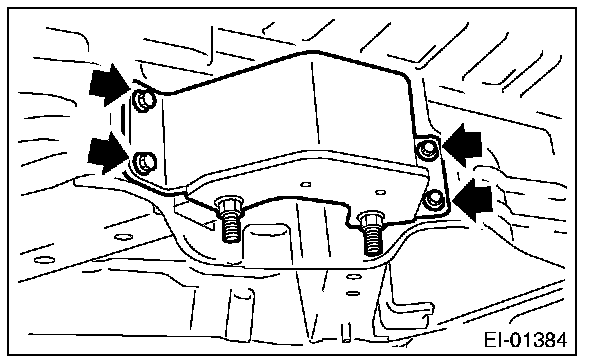

Remove the spare tire hoist.
2.

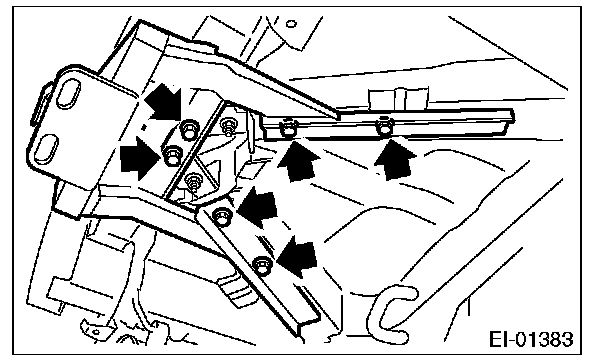

Remove the bolt, and then detach the main frame.
CAUTION: The trailer hitch main frame is heavy. Be careful when removing. 3.
Remove the bolts, and then remove the center frame.
4.
Remove the side frame from the vehicle.
INSTALLATIONInstall in the reverse order of removal.
