Power Locks: Testing and Inspection
Door Lock Control SystemINSPECTION 1.

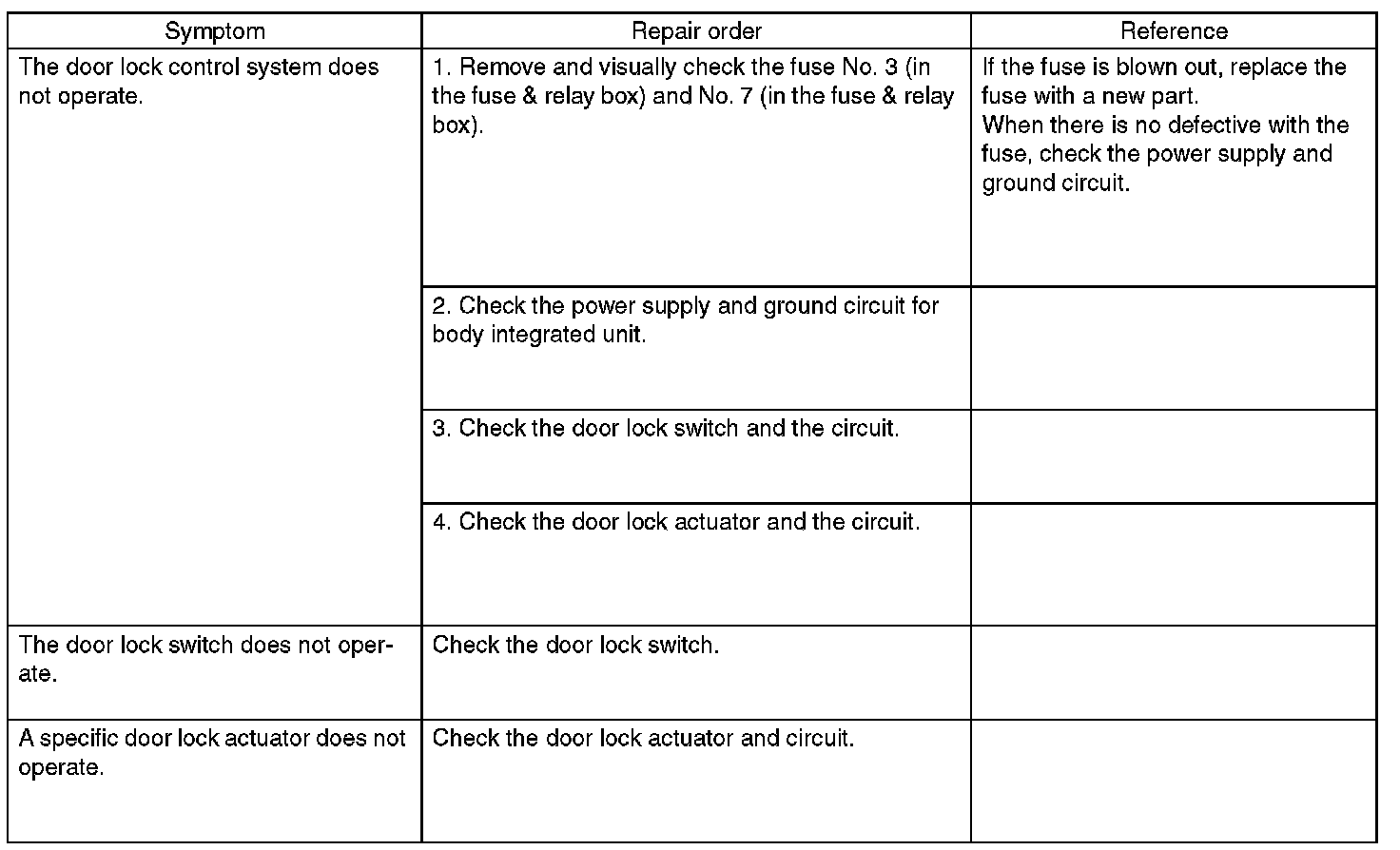

SYMPTOM CHART
2.

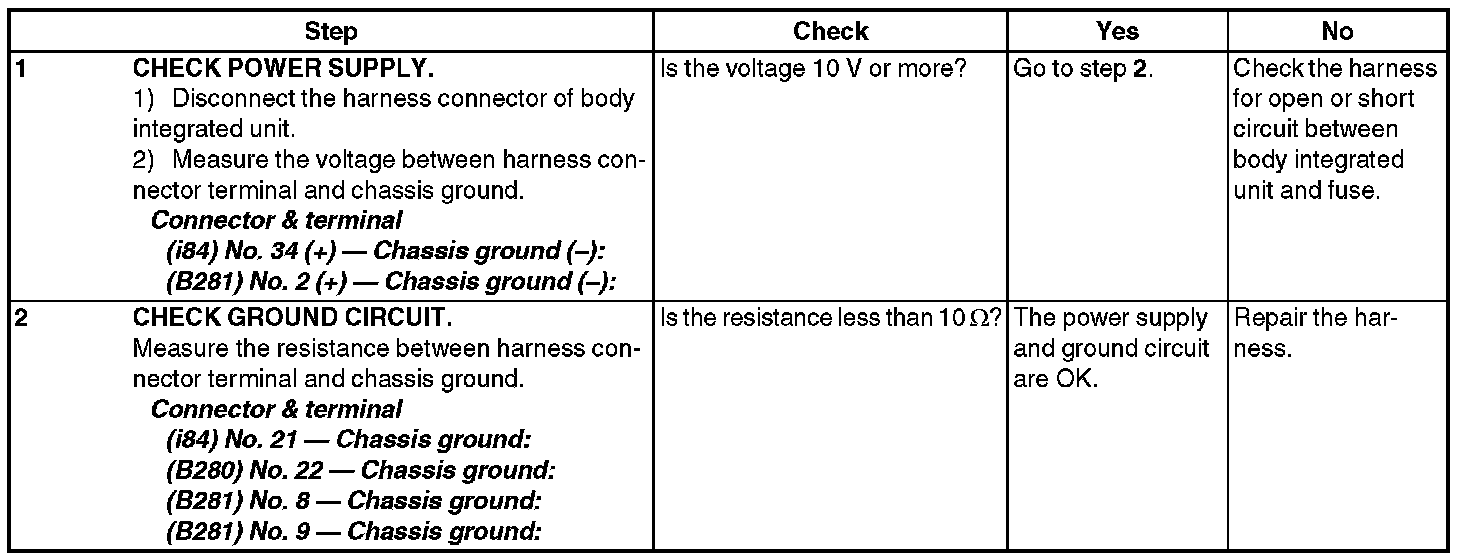

CHECK POWER SUPPLY & GROUND CIRCUIT
Step 1-2:
3.

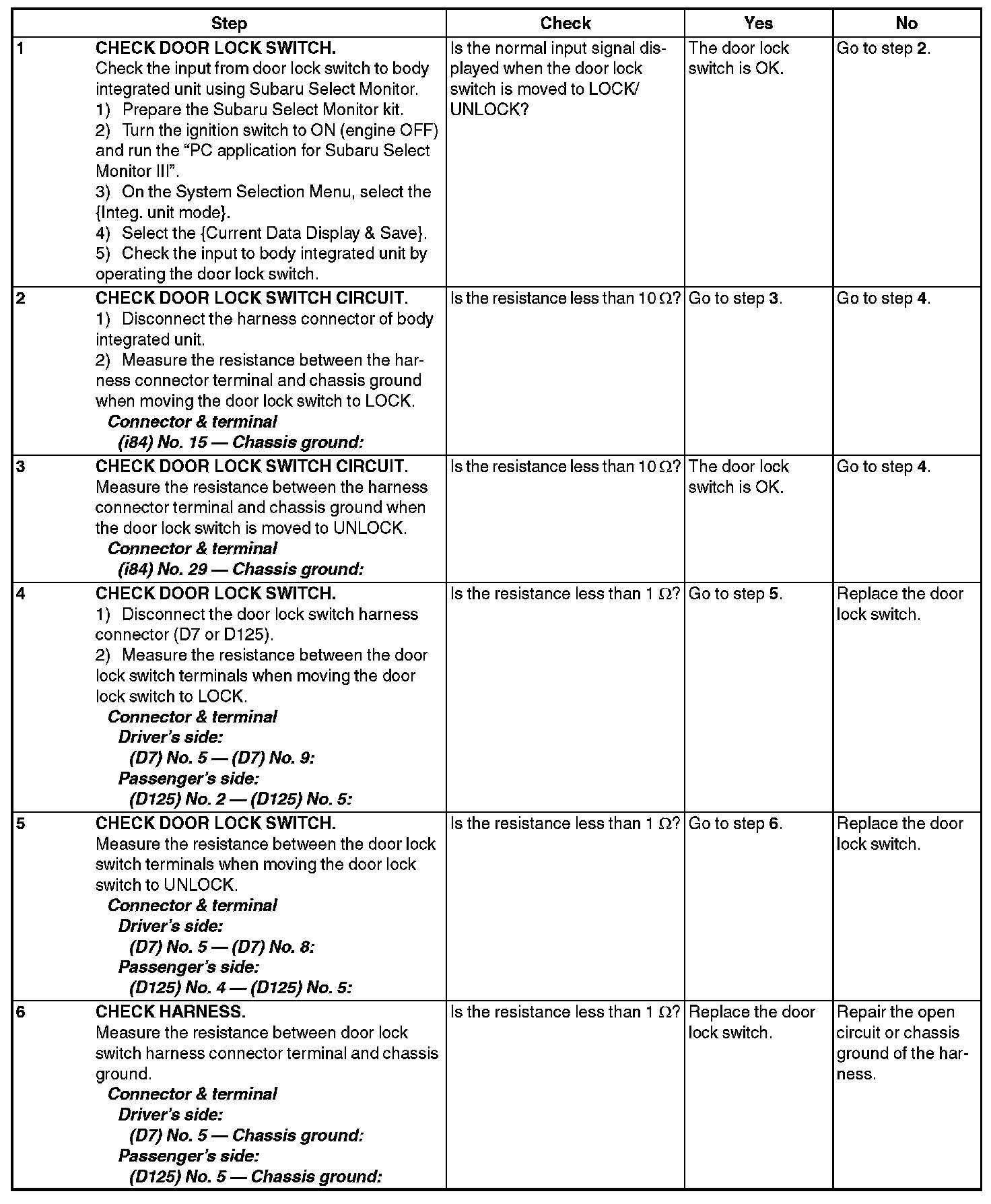

CHECK DOOR LOCK SWITCH
Step 1-6:
4.

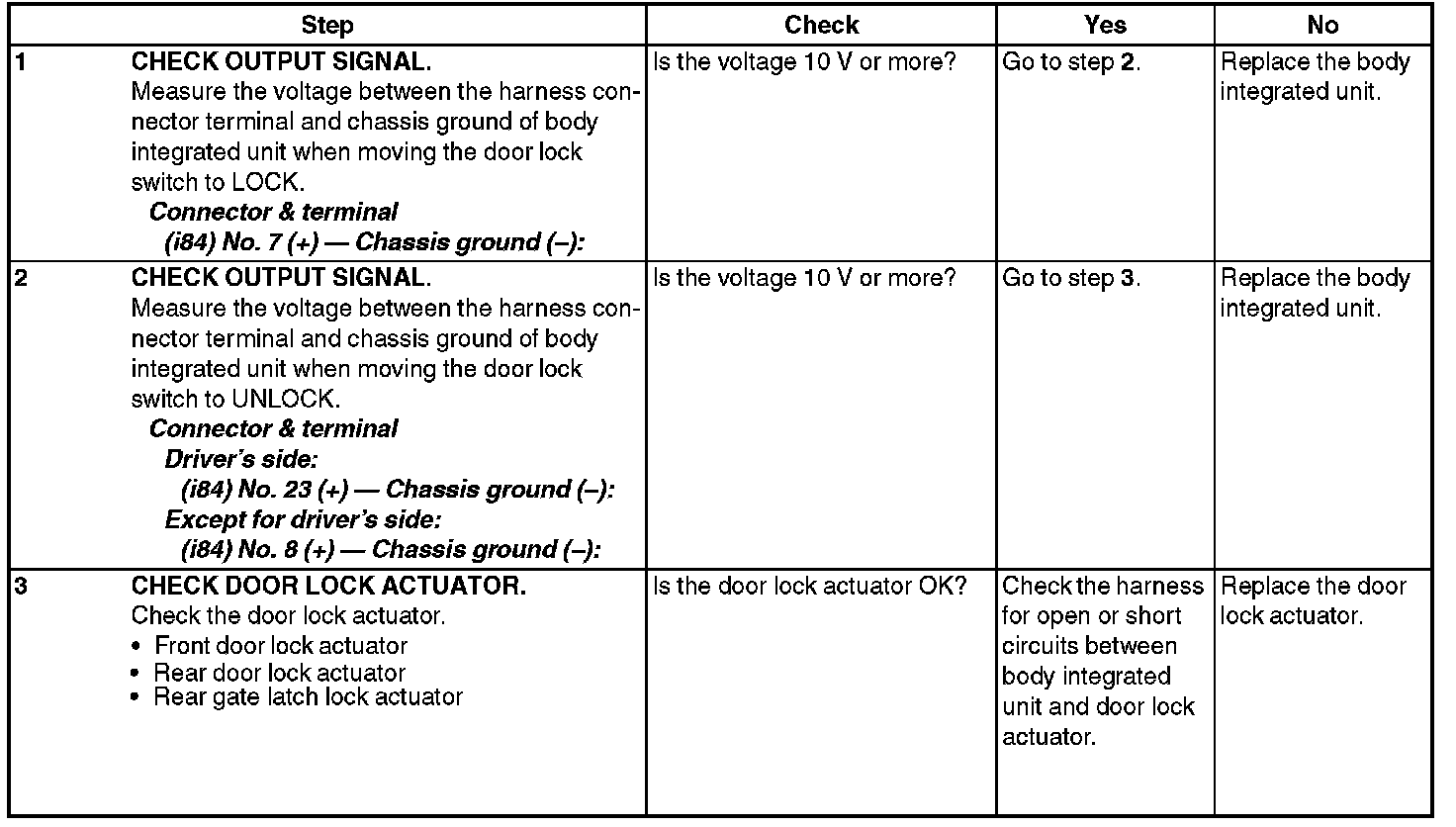

CHECK DOOR LOCK ACTUATOR & CIRCUIT
Step 1-3:
