Rearview Mirror
REARVIEW MIRRORMirror:
REMOVAL

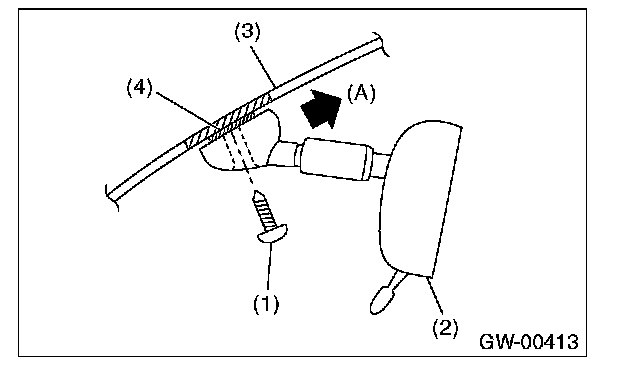

1. Remove the TORX(R) screw (1).
2. Slide the rearview mirror (2) to the upper side (A) of windshield glass (3), and remove the mirror from mount (4).
CAUTION:
- Be careful not to damage the mirror surface.
- Be careful not to damage the windshield glass.
INSTALLATION
CAUTION: When tightening the mounting TORX(R) screw, be sure to observe the tightening torque. Otherwise, the mount may be damaged in over-torque conditions.
Install in the reverse order of removal.
