Traction Control Switch: Service and Repair

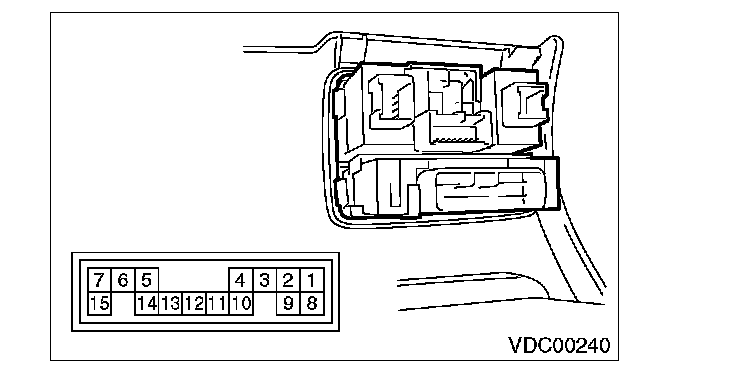

TCS OFF Switch REMOVAL 1)
Remove the instrument panel lower cover.
2)
Remove the screws, and then remove the TCS OFF switch.
INSTALLATION Install in the reverse order of removal.

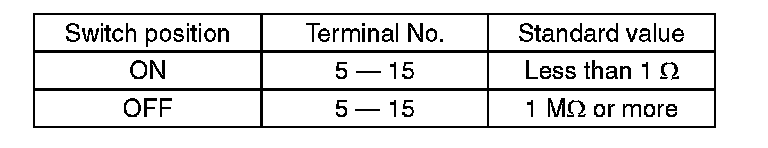

INSPECTION Measure the resistance between the TCS OFF switch terminals.
If NG, replace the TCS OFF switch.
