System Diagram

COMPONENT

1. FRONT HOOD

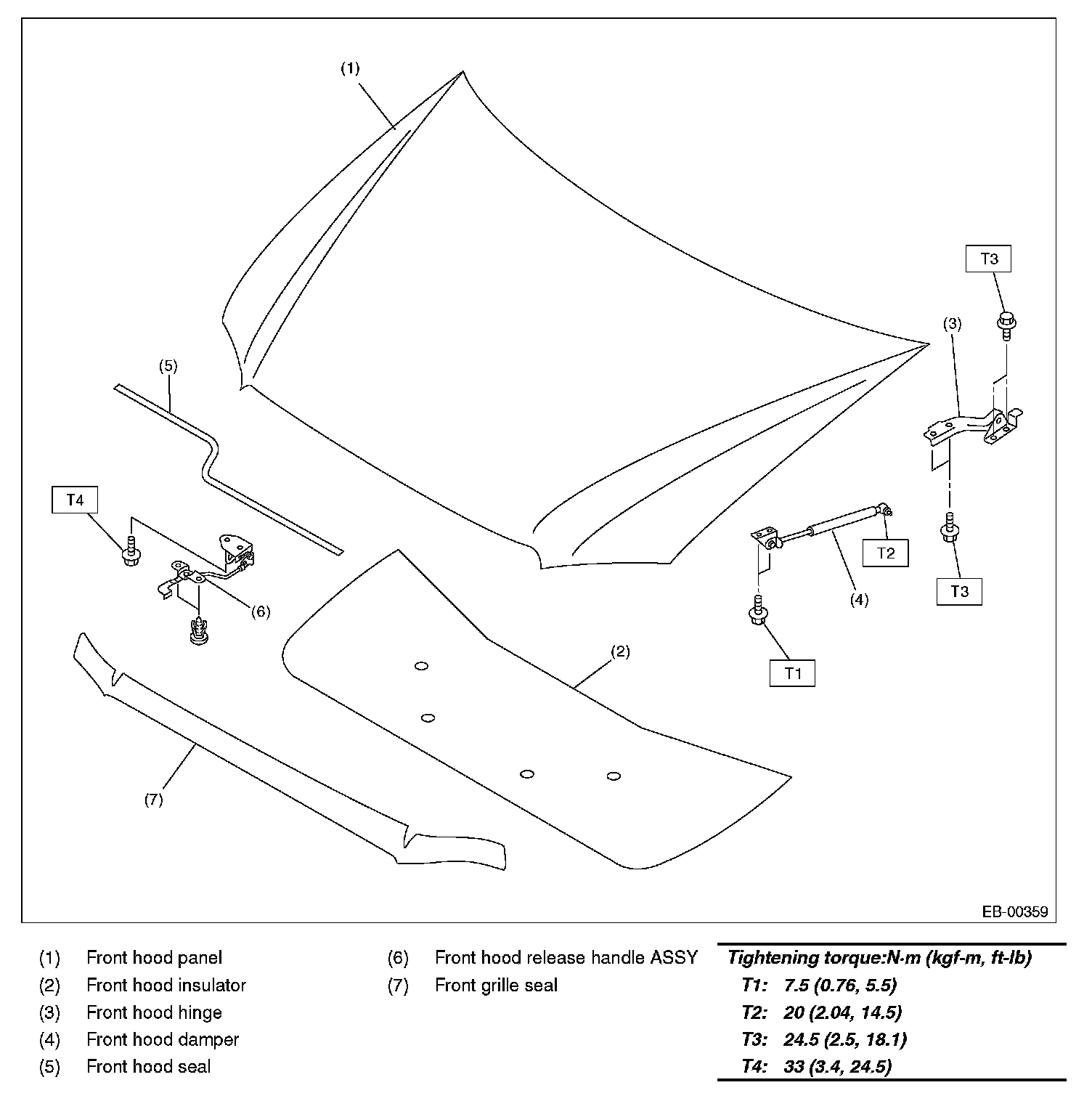

Front Hood:






2. FRONT FENDER PANEL

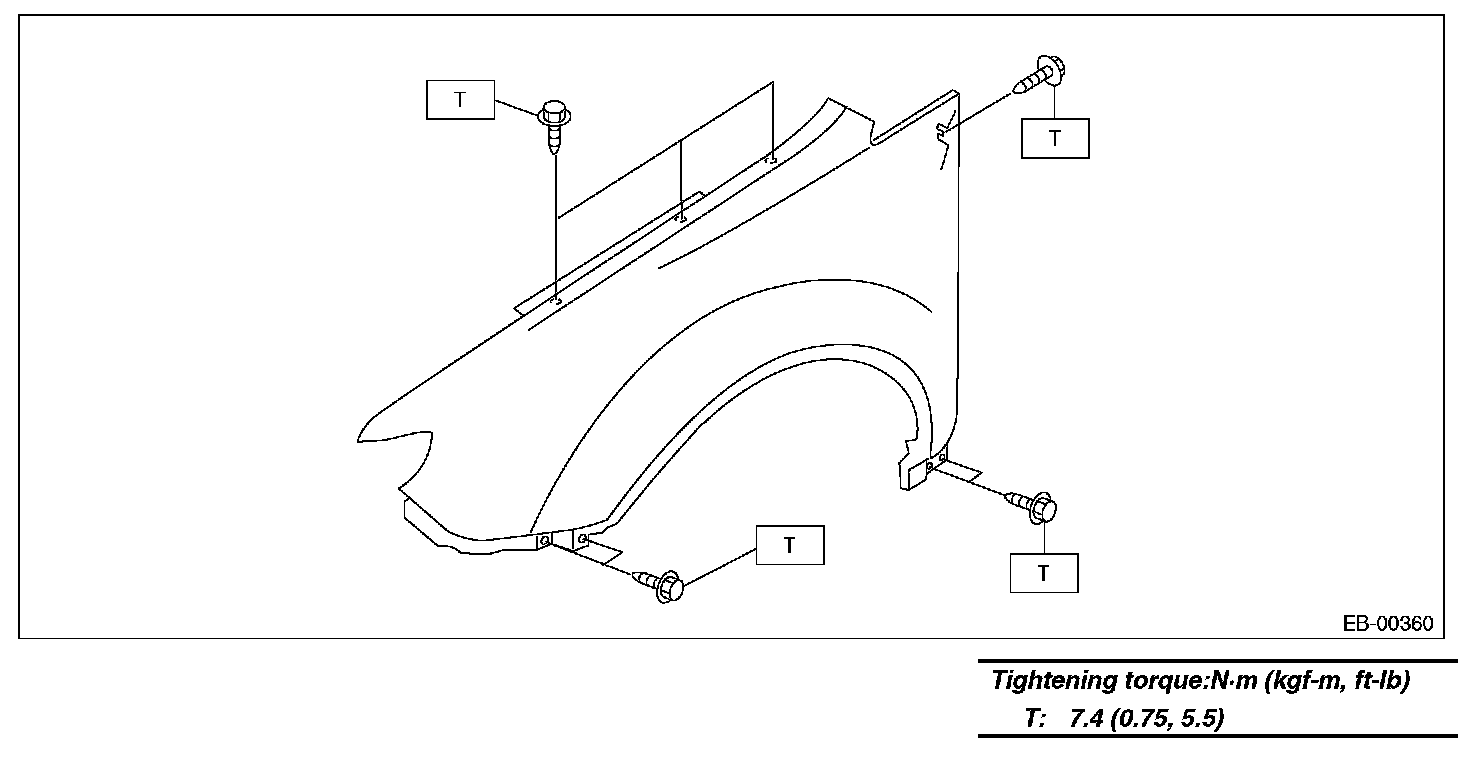

Front Fender Panel:






3. FRONT DOOR PANEL

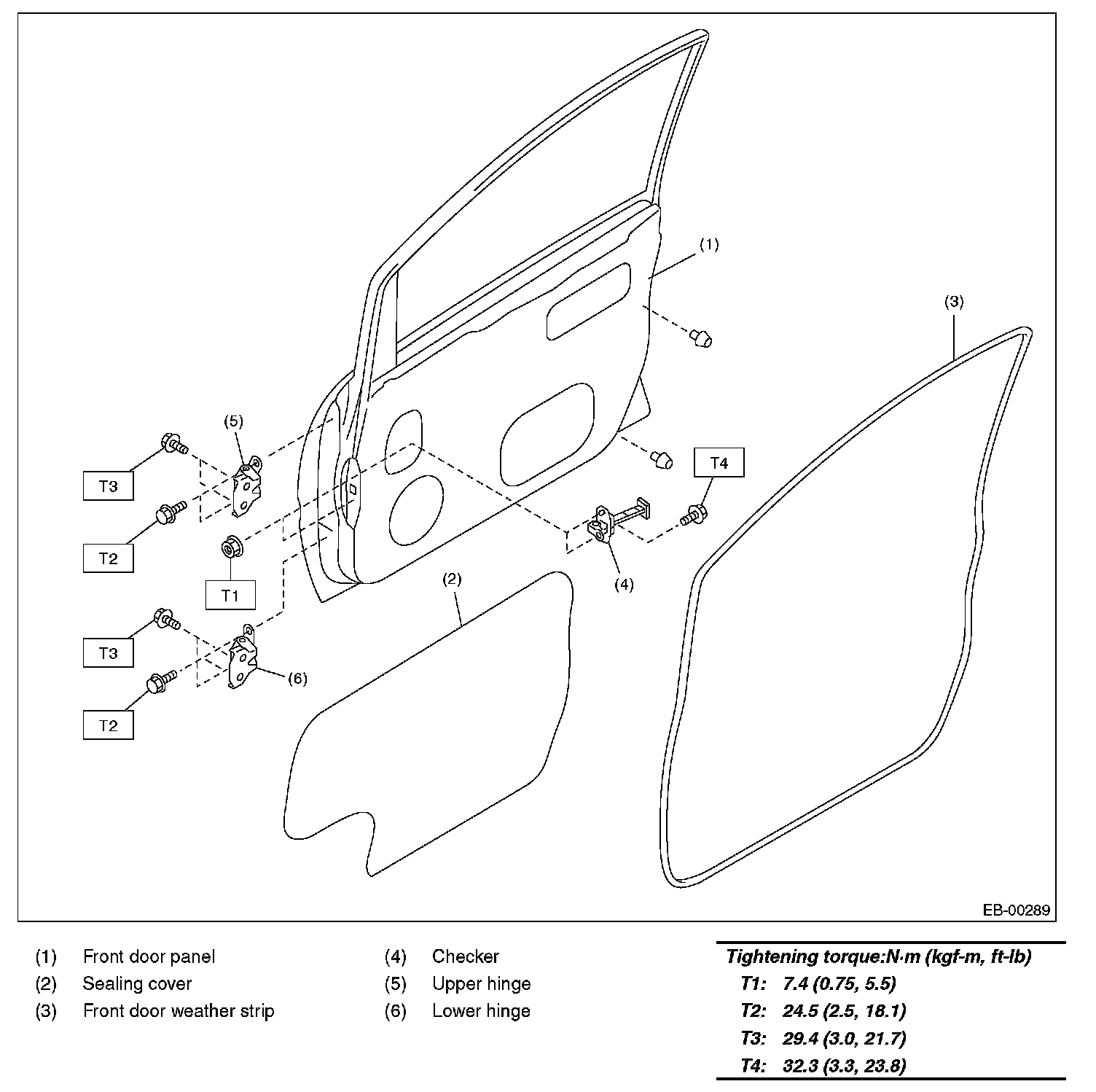

Front Door Panel:






4. REAR DOOR PANEL

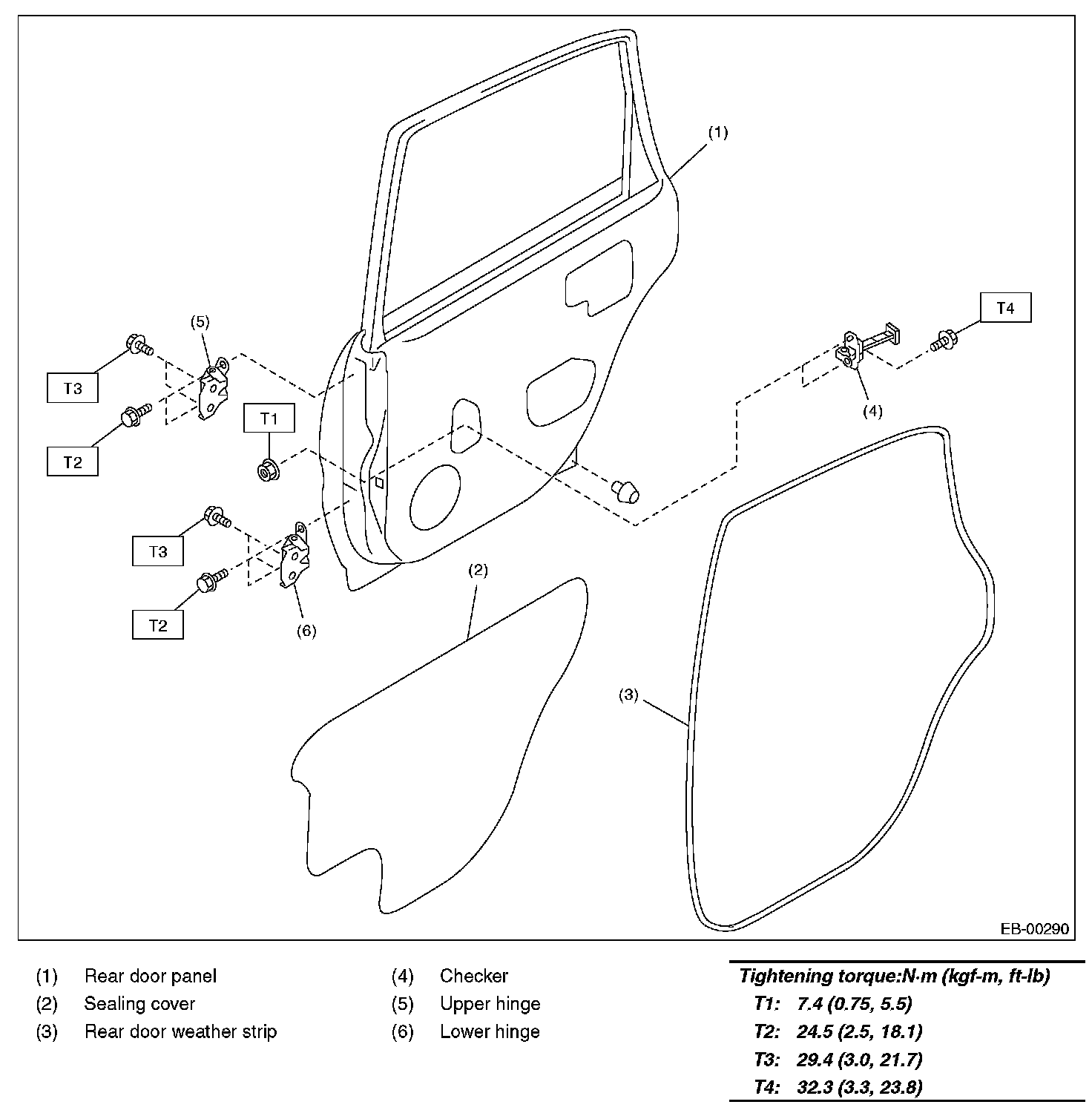

Rear Door Panel:






5. REAR GATE PANEL

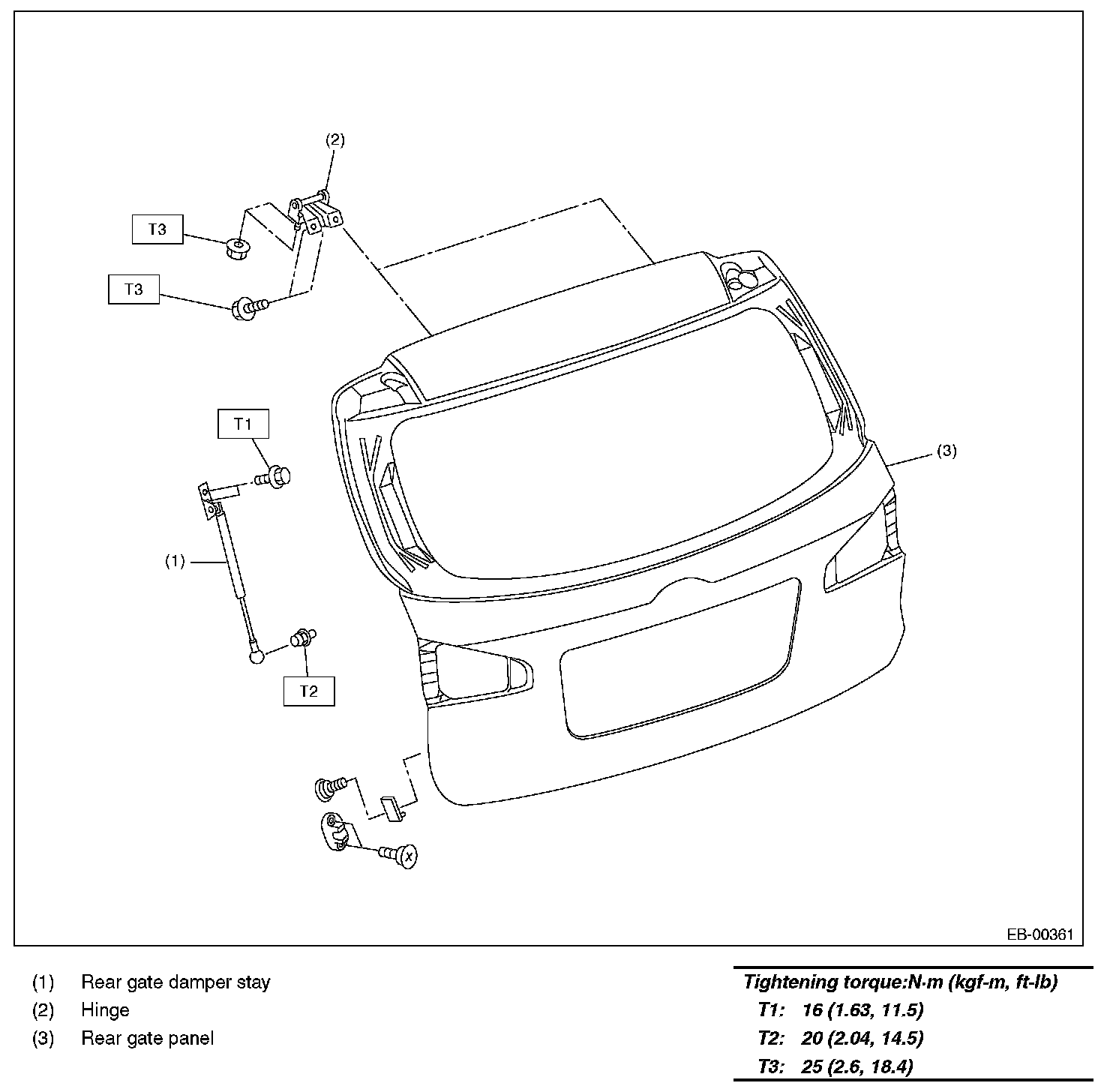

Rear Gate Panel:
