Engine Harness

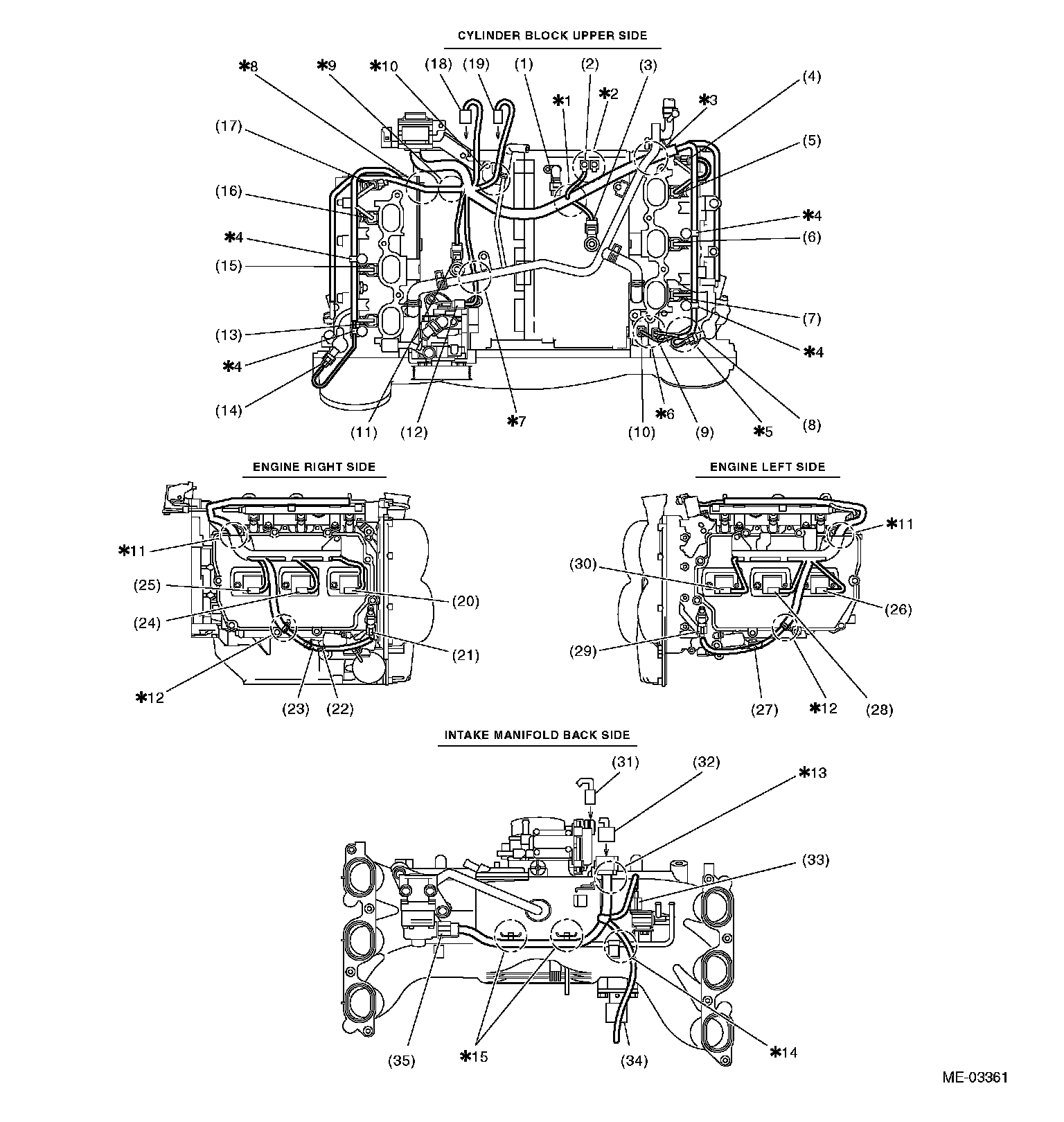

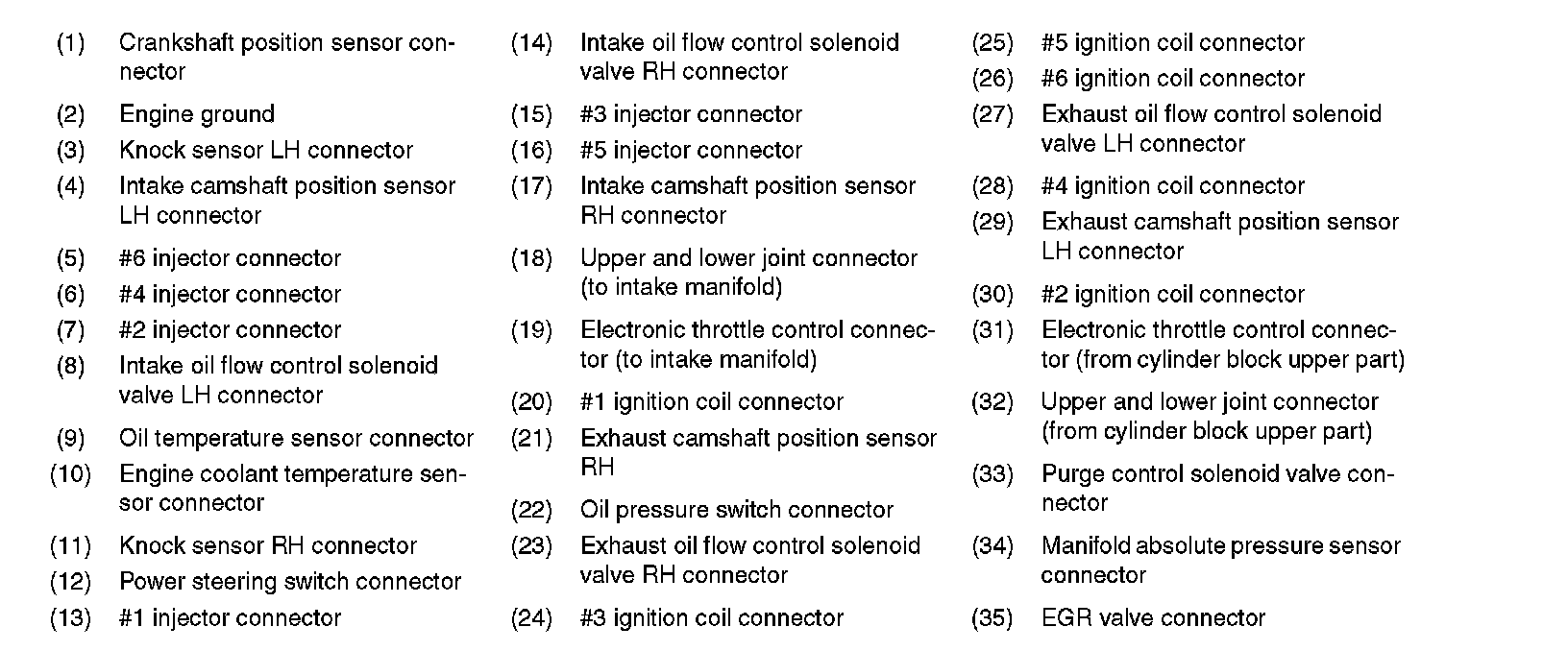

ENGINE HARNESS








*1: Route the harness between the crankshaft position sensor and the knock sensor LH.

*2: Install the engine ground terminal so that it faces the rear of the vehicle.

*3: Route the harness under the heater hose pipe.

*4: Install the engine harness fixing clip to the fuel pipe stay.

*5: Route the harness from the cutout portion of the fuel pipe protector LH.

*6: Do not confuse the oil temperature sensor connector and the engine coolant temperature sensor connector.

*7: Route the harness under the heater hose pipe.

*8: Route the harness under the fuel pipe.

*9: Install the engine harness fixing clip to the fixing boss of the cylinder block.

*10: Route the harness over the heater hose pipe stay.

*11: Align the edges of the engine harness stay and the engine harness identification tape.

*12: Install the engine harness fixing clip to the fixing boss of the rocker cover.

*13: Install the engine harness fixing stay securely.

*14: Route the harness outside the fuel pipe.

*15: Install the engine harness fixing clip to the fixing stay of the intake manifold.
