Power Transistor (Auto A/C Model)
Power Transistor (Auto A/C Model)REMOVAL 1.
Remove the glove box lower cover on the passenger's side.
2.
Disconnect the power transistor connector.
3.

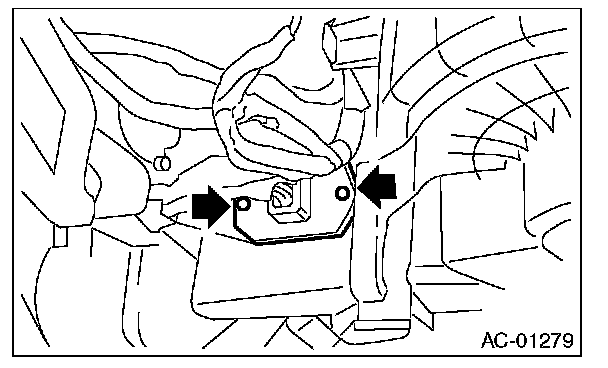

Remove the two screws and remove the power transistor.
INSTALLATIONInstall in the reverse order of removal.
