Map Light: Service and Repair
Spot Map LightREMOVAL 1.
Disconnect the ground cable from the battery.
2.

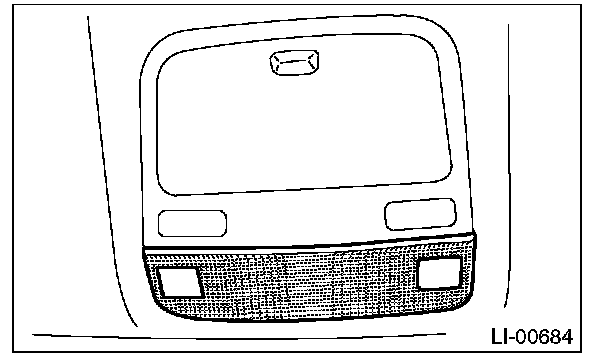

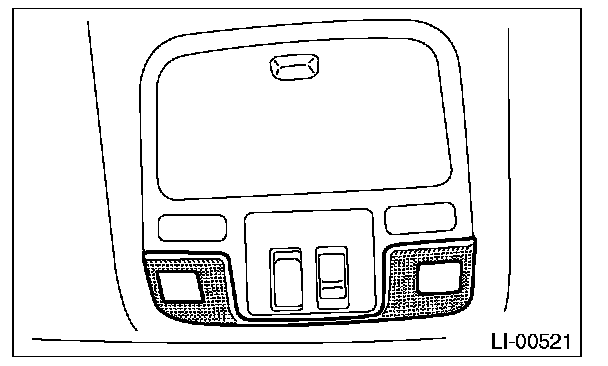

Remove the lens.
-
Model with sunroof
-
Model with standard roof
3.

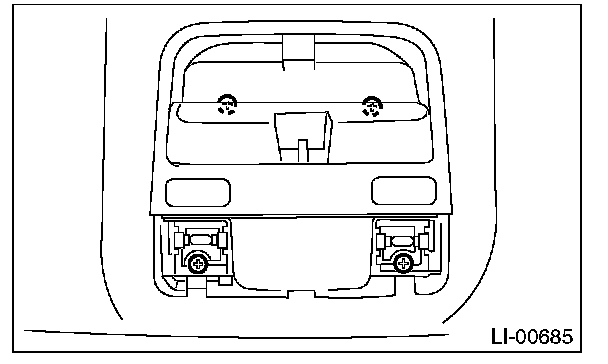

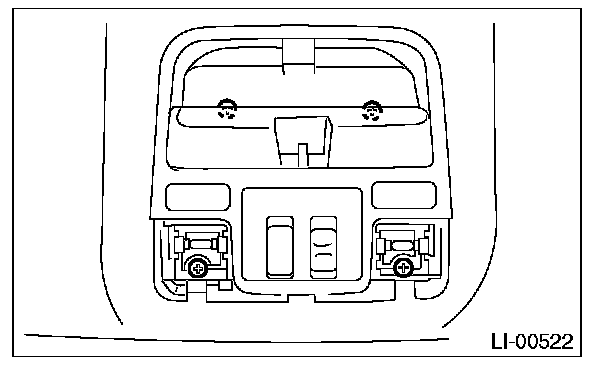

Remove the four bolts used for mounting the spot
map light.
-
Model with sunroof
-
Model with standard roof
4.
Disconnect the harness connectors and remove the spot
map light.
INSTALLATIONInstall in the reverse order of removal.
