Map Light: Testing and Inspection
Spot Map LightINSPECTION 1.
SPOT
MAP LIGHT BULB 1.
Visually check the bulb for blow out.
2.
Check the bulb specification.
Specifications 3.
If NG, replace the bulb with a new part.
2.
SPOT
MAP LIGHT SWITCH

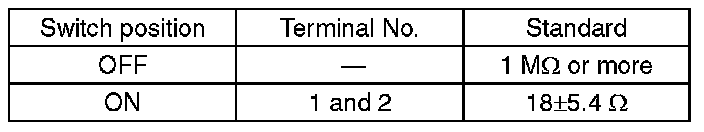

Measure the resistance between spot map light switch terminals.
