Turn Signals: Service and Repair
Side Turn Signal Light AssemblyREMOVAL 1.
Disconnect the ground cable from battery.
2.
Remove the mirror.
3.
Remove the scalp cap.
4.

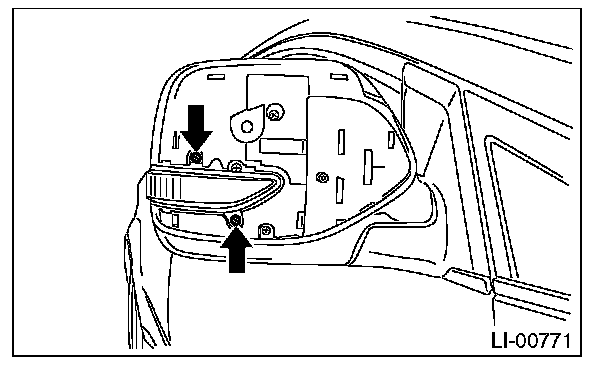

Remove the 2 mounting screws, disconnect the harness connector and then remove the side turn signal light assembly.
INSTALLATIONInstall in the reverse order of removal.
Tightening torque: 0.8 N.m (0.08 kgf.m, 0.59 ft.lb)
