Tire Pressure Module: Testing and Inspection

TIRE PRESSURE MONITORING CONTROL MODULE

^ The location of the valve (transmitter) with the ID registered is not shown on the Select Monitor display.
^ If the transmitter is replaced, ID registration for the transmitter is required.

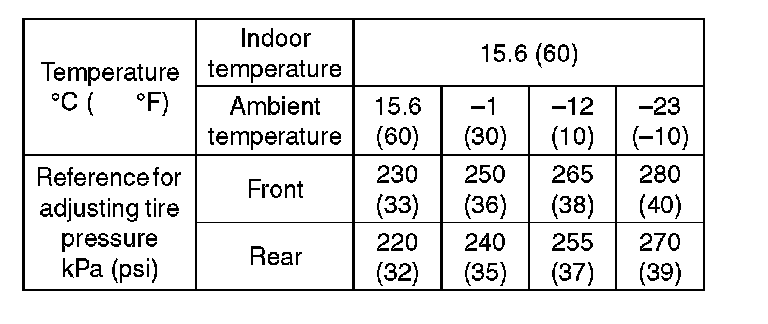

^ When adjusting tire pressure indoors in winter, there is a big temperature difference between the indoor facilities and outside. Once the car is outside where the temperature is lower, the tire pressure will drop, causing the tire pressure warning light to come on, even if the tire pressure was adjusted to standard values indoors. To avoid this, it is necessary to adjust the tire pressure to the high side in consideration of the difference in temperature between inside and outside.
