Crankshaft Position Sensor: Service and Repair
Crankshaft Position SensorREMOVAL 1.
Remove the collector cover.
2.
Disconnect the ground cable from battery.
3.
Remove the air intake chamber.
4.

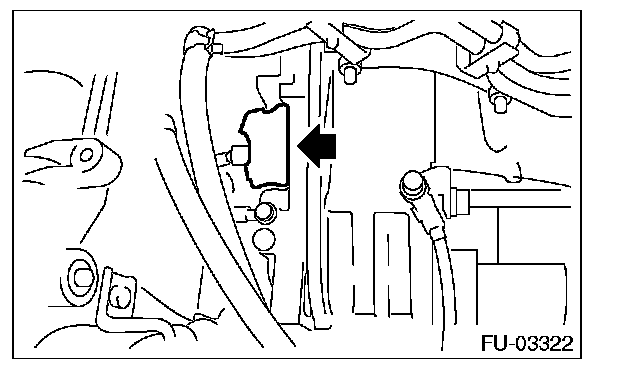

Remove the service hole cover.
5.

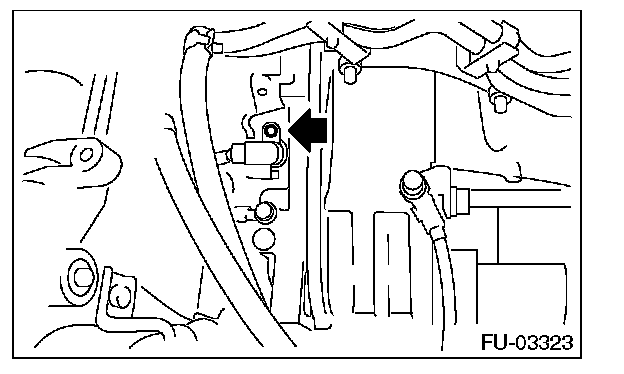

Remove the
crankshaft position sensor.
6.
Disconnect the connector from
crankshaft position sensor.

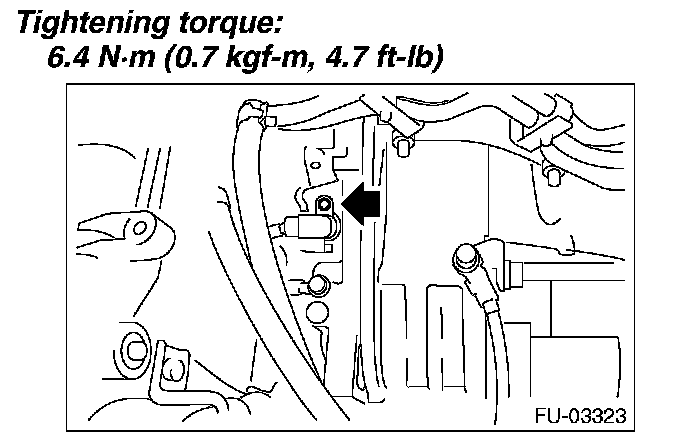

INSTALLATIONInstall in the reverse order of removal.
