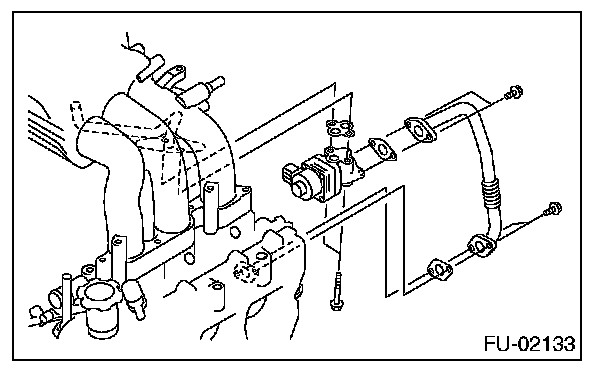

EGR Valve: Service and Repair
EGR ValveREMOVAL 1.
Remove the collector cover and engine side cover.
2.
Disconnect the ground cable from battery.
3.
Remove the air intake chamber.
4.
Remove the starter.
5.
Remove the EGR pipe from
EGR valve and cylinder head.
6.
Remove the
EGR valve from intake manifold.
7.
Disconnect connector from
EGR valve.
INSTALLATIONInstall in the reverse order of removal.
NOTE: Use a new gasket.
