Radiator Cooling Fan Control Module: Service and Repair

Radiator Fan Control Unit

REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the air intake duct.

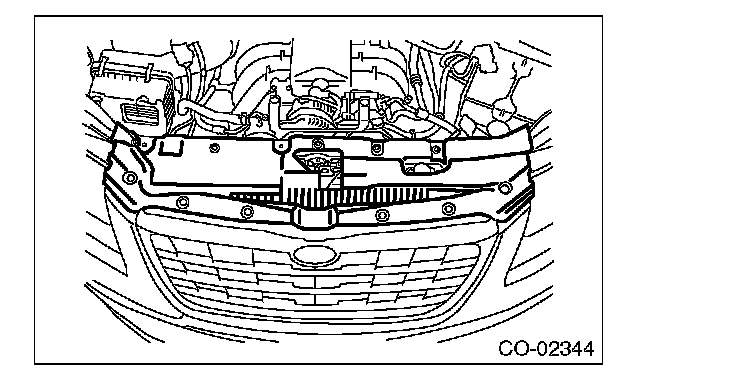

3) Remove the front upper cover.

4) Remove the radiator fan control unit.

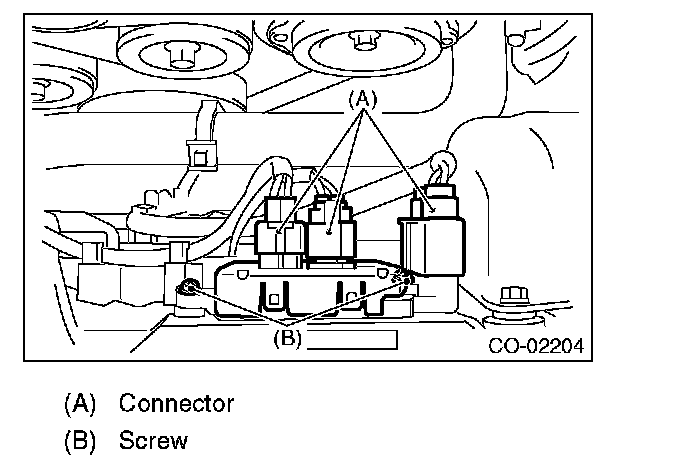

(1) Disconnect the connector from radiator fan control unit.
(2) Remove the screw which secures the radiator fan control unit.

INSTALLATION
Install in the reverse order of removal.

Tightening torque: 2.6 N-m (0.3 kgf-m, 1.9 ft-lb)
