Removal and Replacement
GeneratorREMOVAL 1.
Remove the collector cover.
2.
Disconnect the ground cable from the battery.
3.

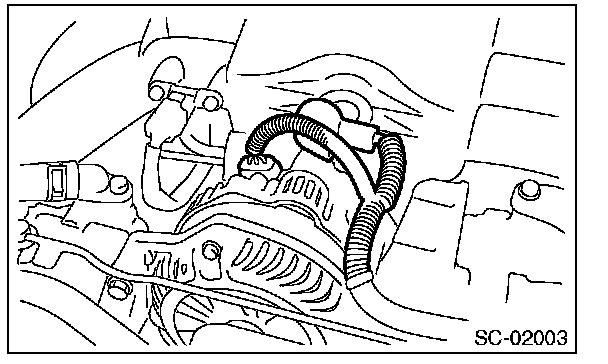

Disconnect the connector and terminal B from generator.
4.
Remove the V-belt.
5.
Remove the generator.
INSTALLATIONInstall in the reverse order of removal.
Tightening torque: 25 N.m (2.5 kgf.m, 18.4 ft.lb)CAUTION: Check and adjust the V-belt tension.
