Power Window Switch: Service and Repair

POWER WINDOW CONTROL SWITCH

REMOVAL

1. MAIN SWITCH
1. Disconnect the ground cable from battery.

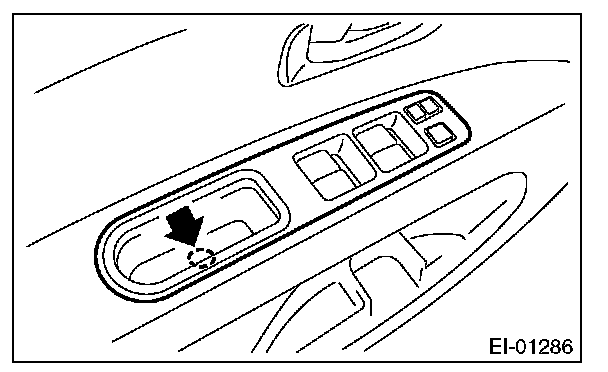

2. Peel the cover inside the hand grip, and remove the screw.
3. Remove the power window switch cover assembly.







4. Disconnect the harness connector.
5. Detach the claw, and remove the power window main switch assembly.

2. SUB-SWITCH
1. Disconnect the ground cable from battery.

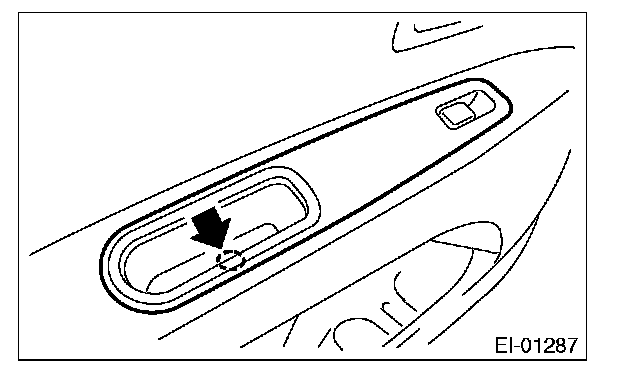

2. Peel the cover inside the hand grip, and remove the screw.
3. Remove the power window switch cover assembly.







4. Disconnect the connector.
5. Detach the claw and remove the power window sub-switch.

INSTALLATION

Install in the reverse order of removal.
