Front Door Window Glass: Service and Repair

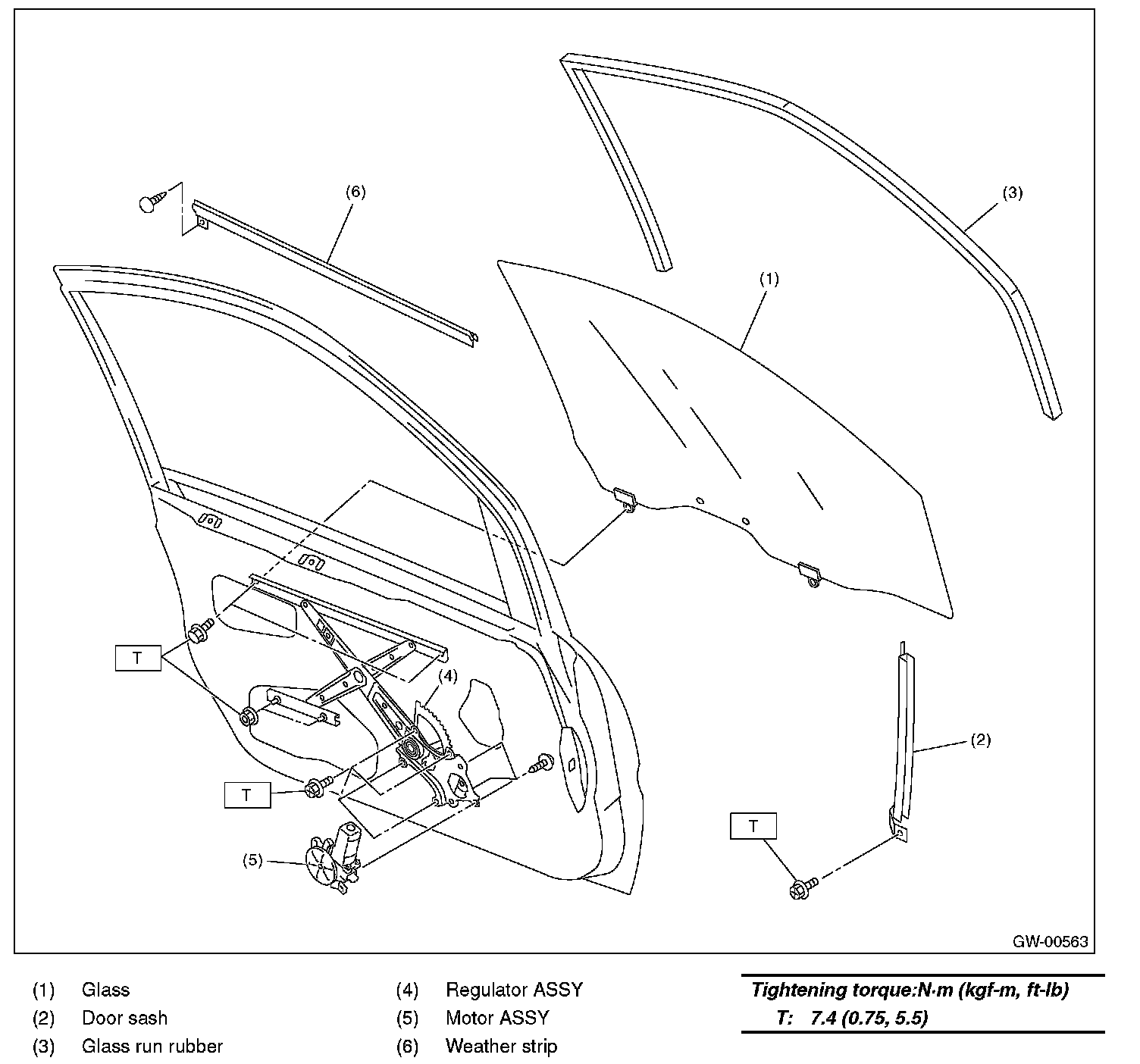

FRONT DOOR GLASS

Front Door Glass:

REMOVAL

1. Remove the front door trim.
2. Remove the sealing cover.
3. Connect the battery ground cable and power window switch connector.

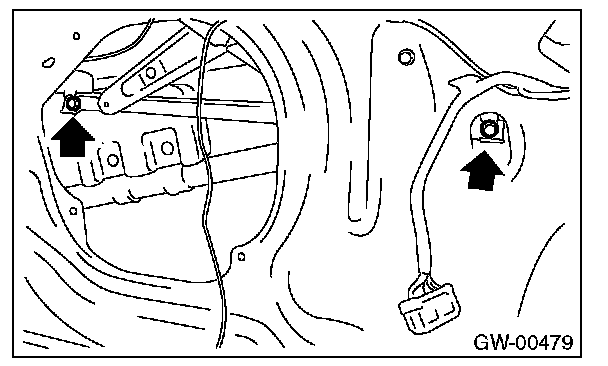

4. Operate the power window switch to move the glass to the position shown in the figure, and then remove the two bolts through service holes.

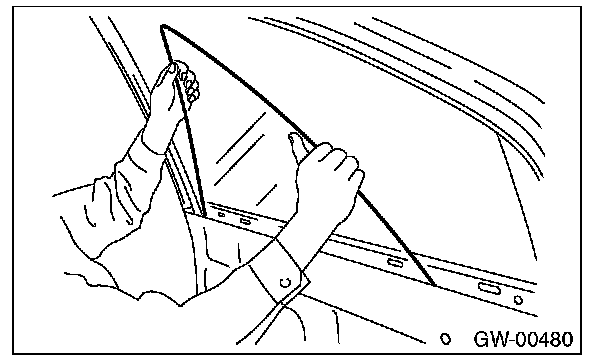

5. Tilt the door glass forward, then remove the door glass from the glass run rubber.
6. Remove the door glass.

CAUTION:
- Since the gear may be disengaged, do not turn regulator in the closing direction after removing glass.
- Avoid impact and damage to the glass.

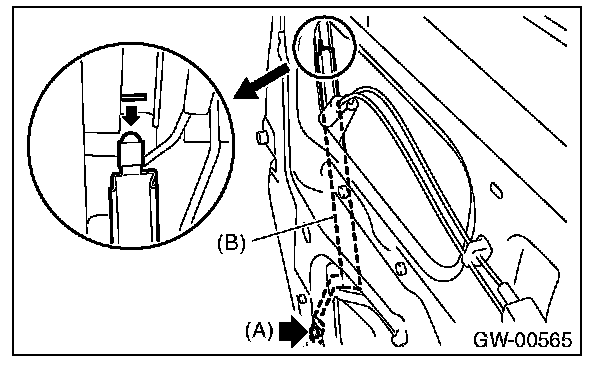

7. Remove the bolt (A), and then remove the door sash (B).







INSTALLATION

CAUTION: Make sure that the glass run rubber is placed securely in door frame and sash. Install in the reverse order of removal.
