Air Register: Service and Repair

Air Vent Grille

REMOVAL

1. UPPER GRILLE
1. Disconnect the ground cable from battery.

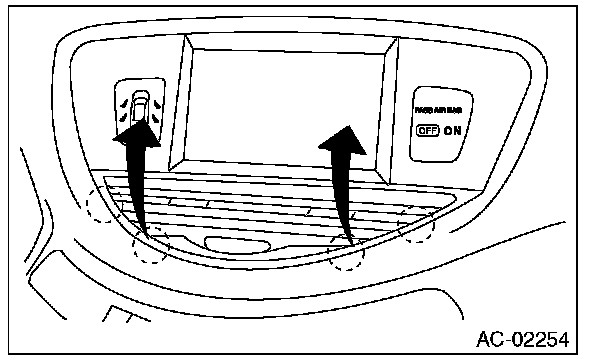

2. Lift the upper grille (speaker grille for harman/kardon audio spec), and remove the catch on the hazard switch side.






3. Hold the side of the monitor and remove the catch on the upper, right and left sides.






4. Detach the connectors and remove the panel.

2. CENTER GRILLE
1. Disconnect the ground cable from battery.
2. Remove the front control panel.

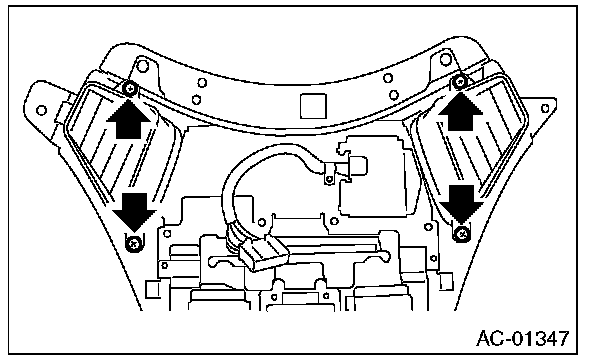

3. Remove the screw, and remove the center grille






3. SIDE GRILLE

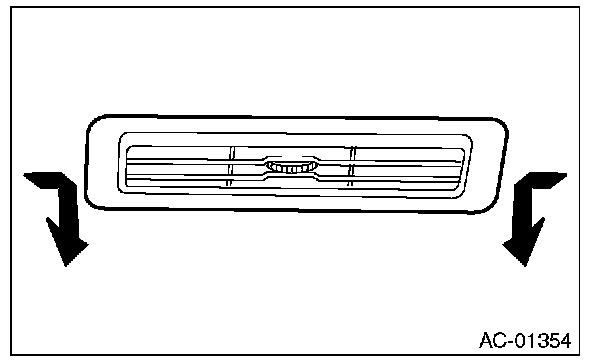

Remove the catch in 2 locations to remove the side air vent grille.






4. ROOF GRILLE
Remove the catch, and remove the roof air vent grille.






INSTALLATION

Install in the reverse order of removal.
