Exhaust System
Exhaust System

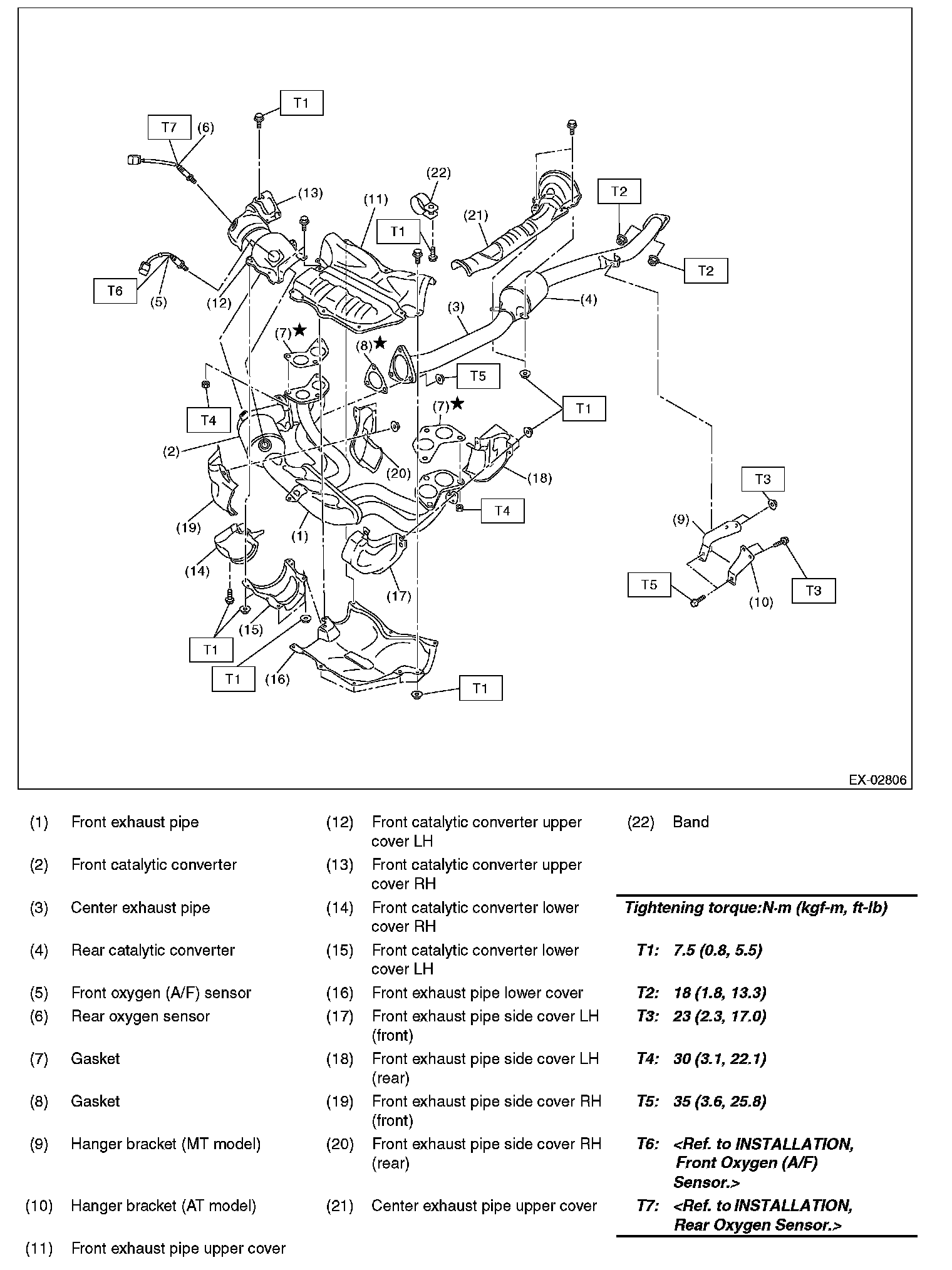

FRONT
EXHAUST PIPE
AND CENTER EXHAUST PIPE

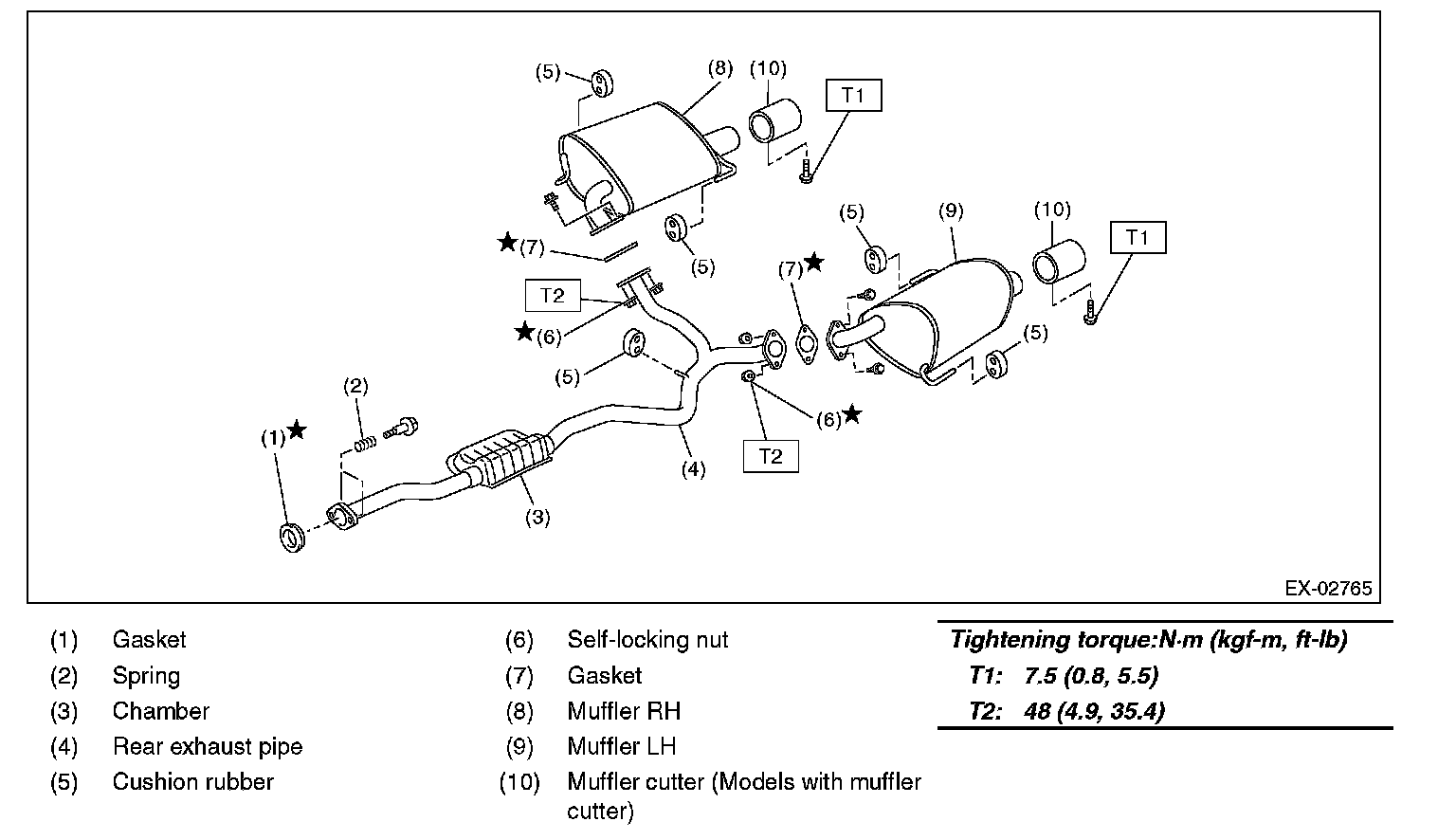

REAR
EXHAUST PIPE
AND
MUFFLER
