Air Register: Service and Repair

AIR VENT GRILLE

REMOVAL

1. CENTER GRILLE

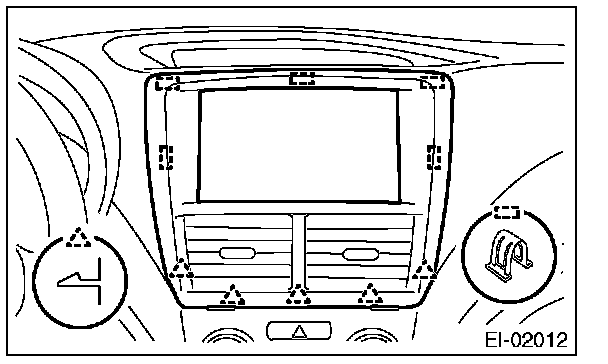

1. Insert a plastic remover into the slit at the bottom of the center panel, to lift the panel.
2. Remove the claws and resin hook and then remove the center panel.






3. Remove the claws, and remove the air vent center grille from the center panel.

2. SIDE GRILLE
1. Remove the ornament panel.

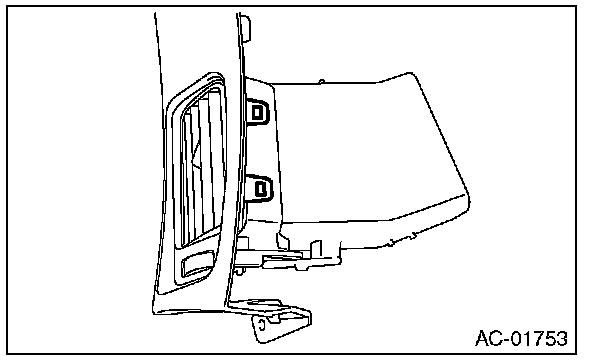

2. Remove the claws, and remove the air vent side grille.






INSTALLATION
Install each part in the reverse order of removal.
