Engine (Diagnostics)

ELECTRICAL COMPONENT LOCATION

LOCATION

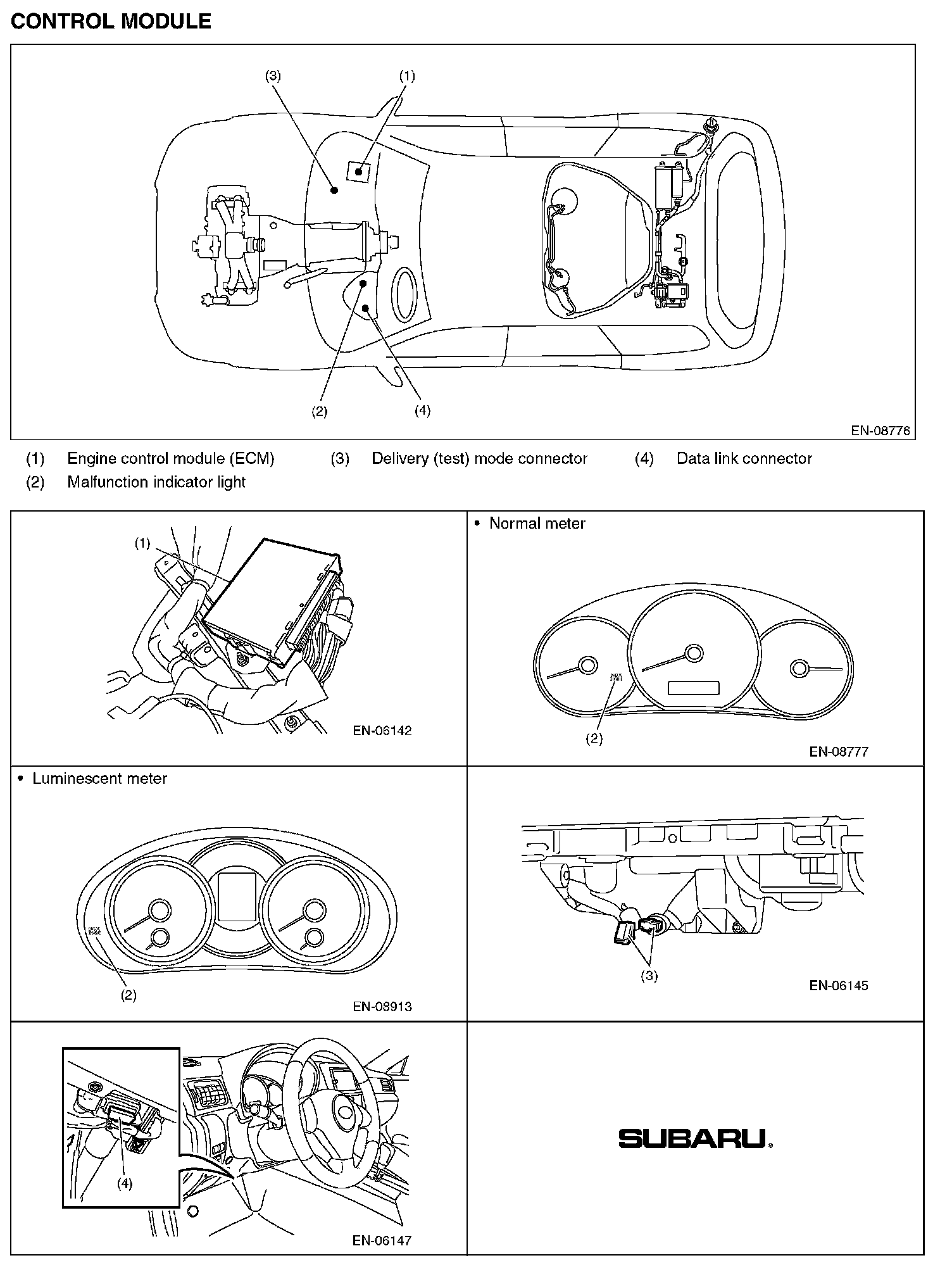

1. CONTROL MODULE

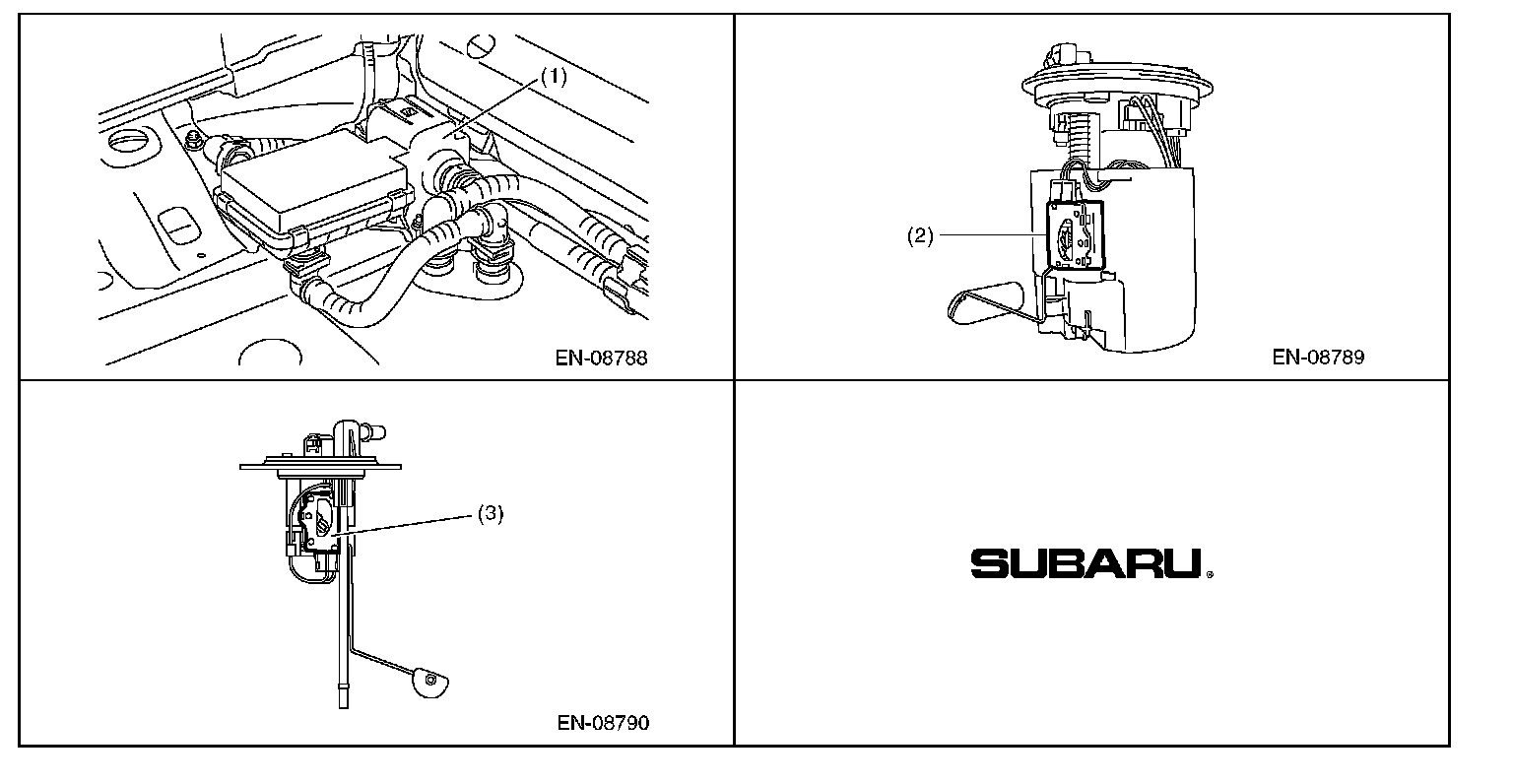

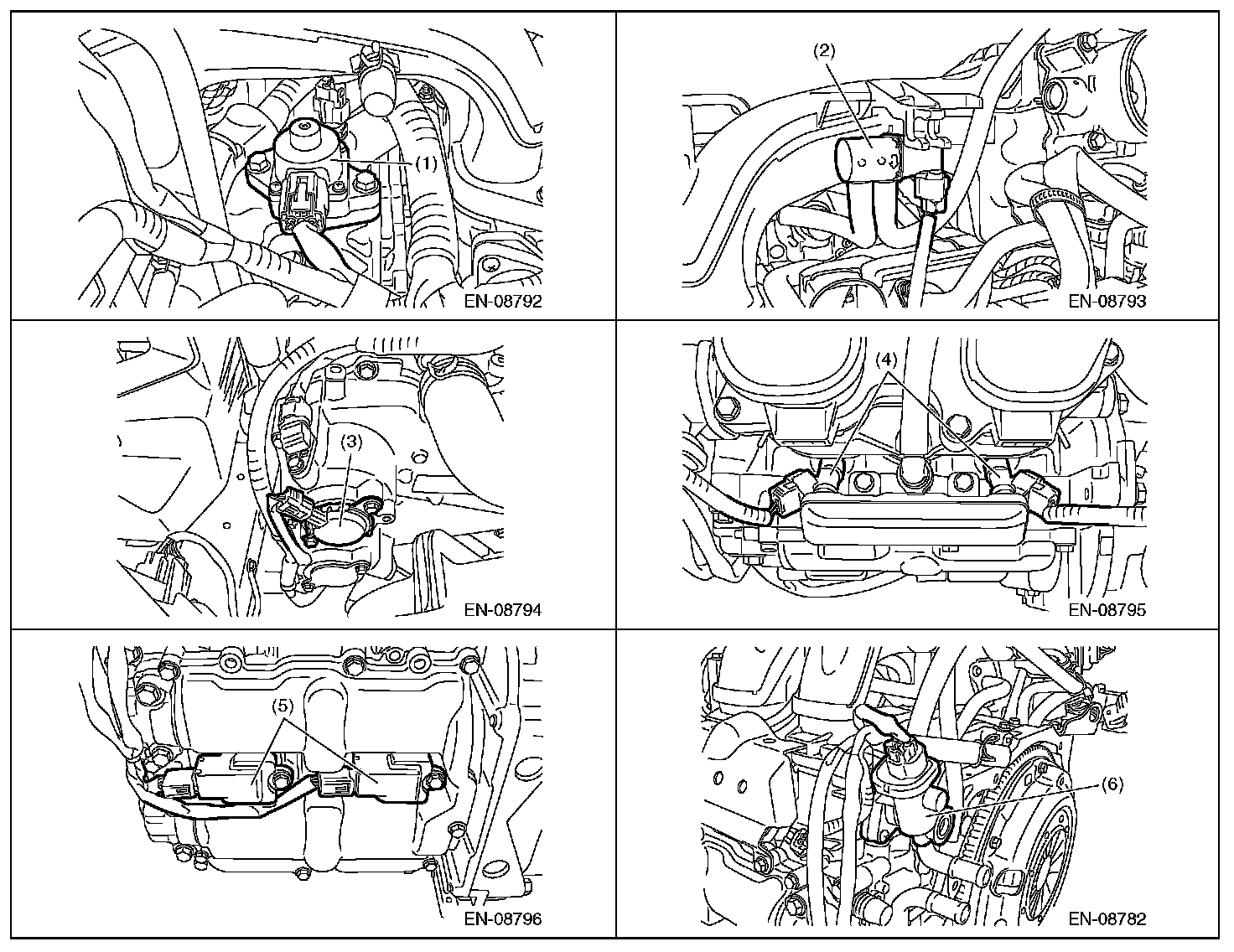

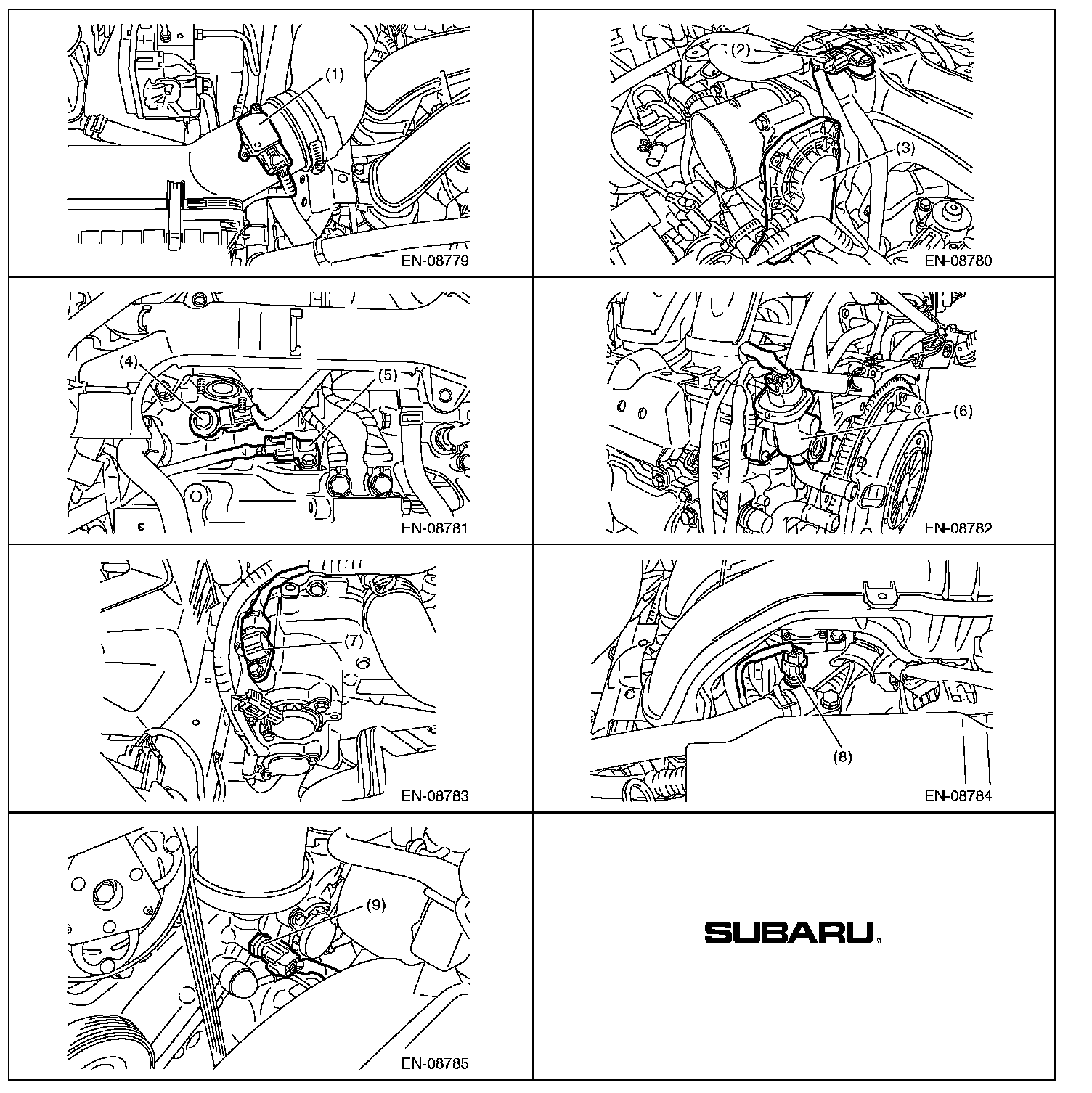

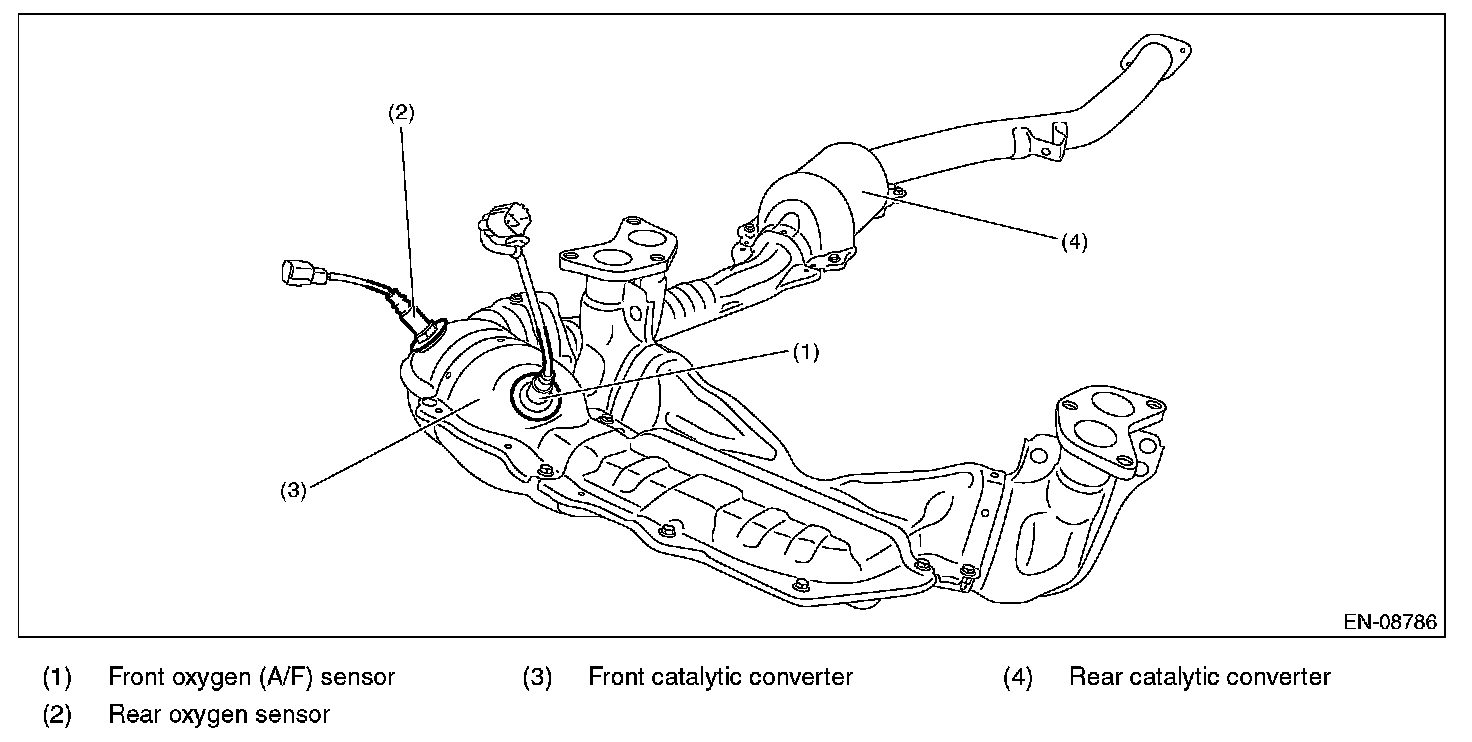

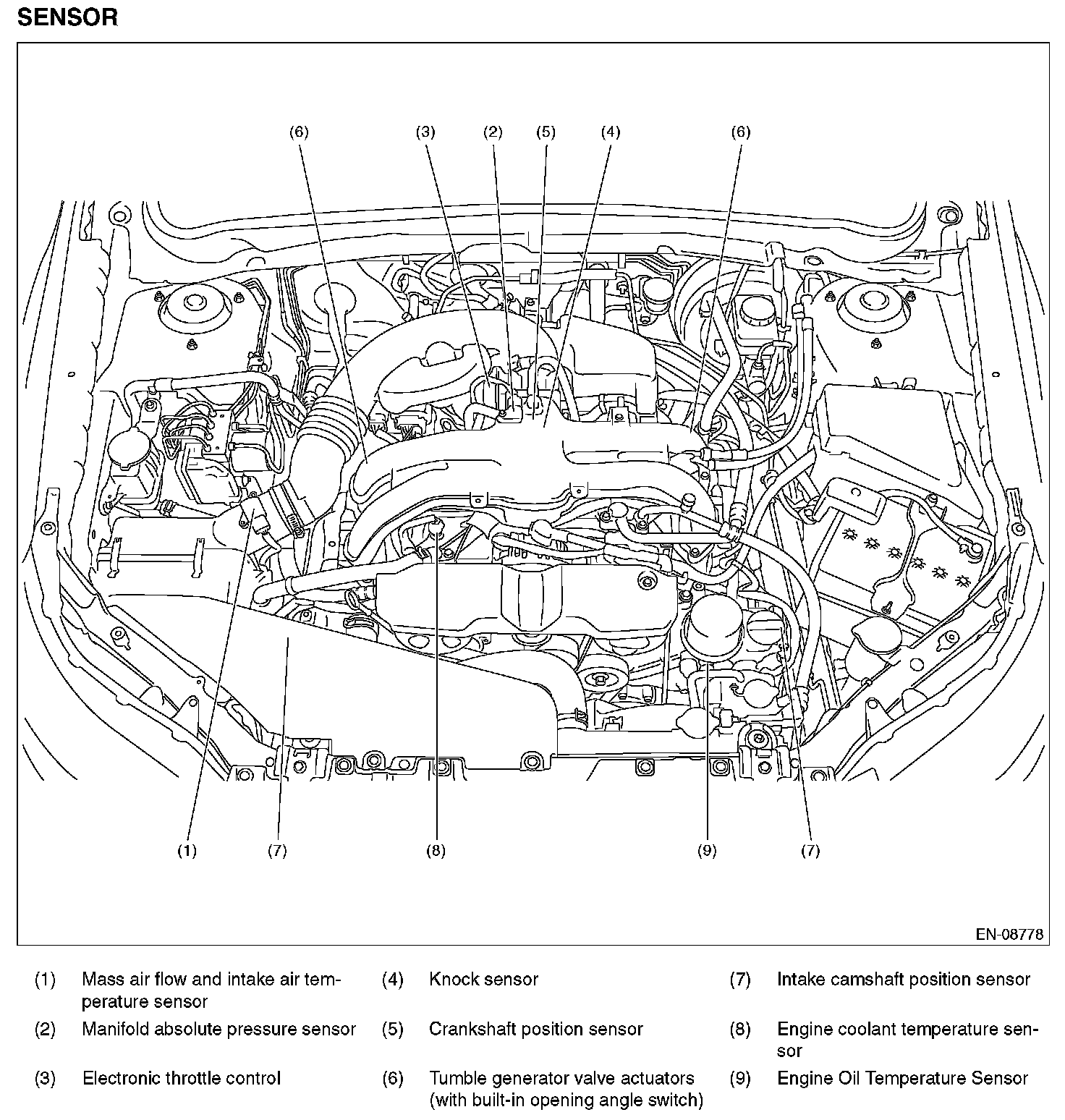

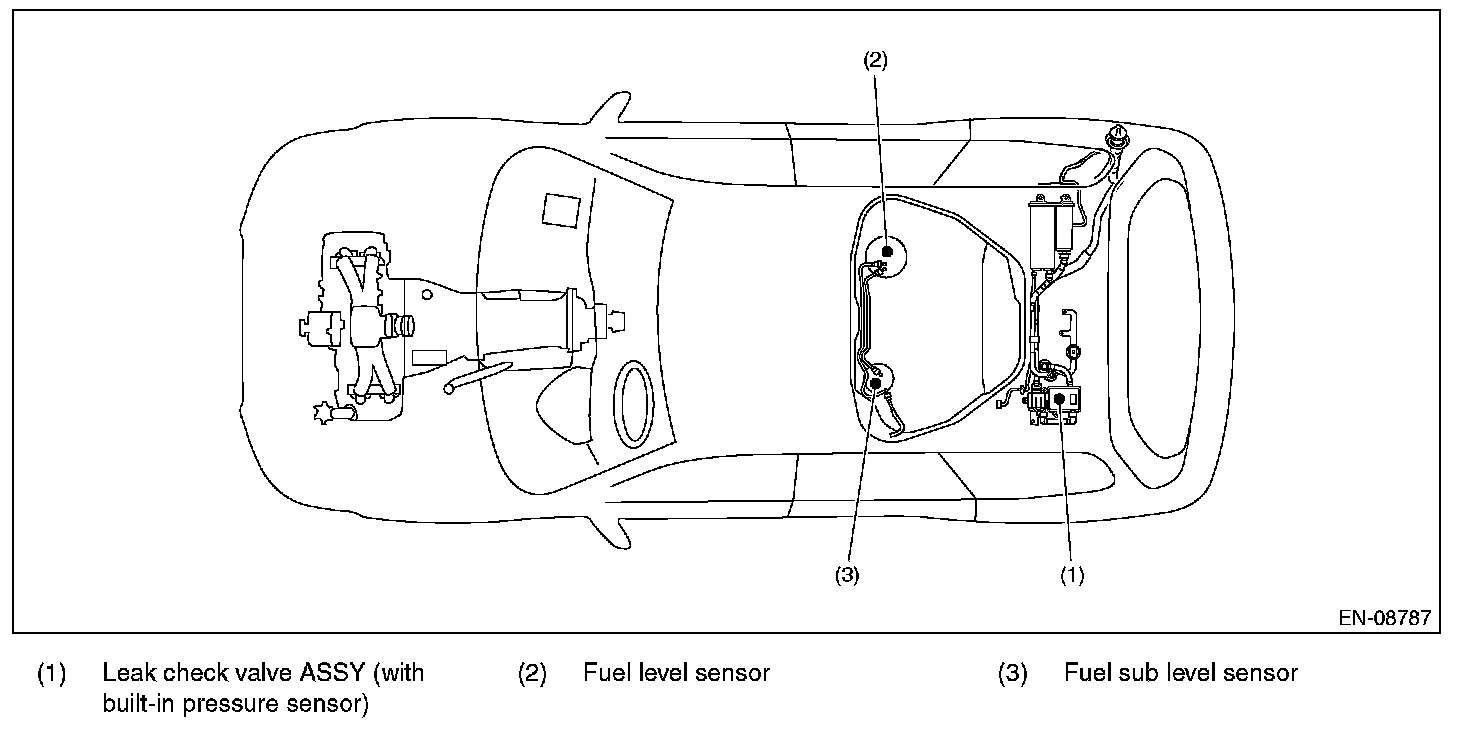

2. SENSOR

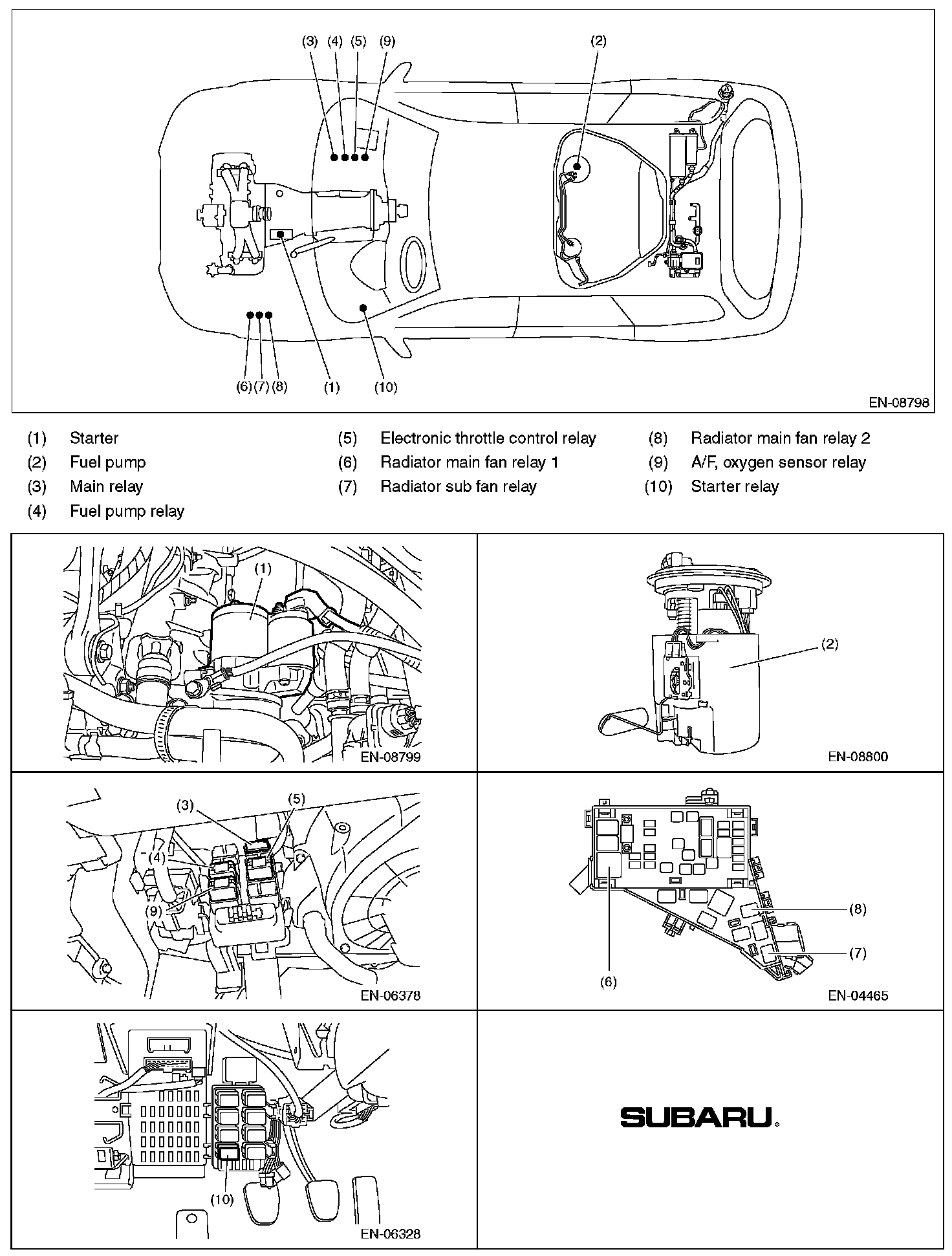

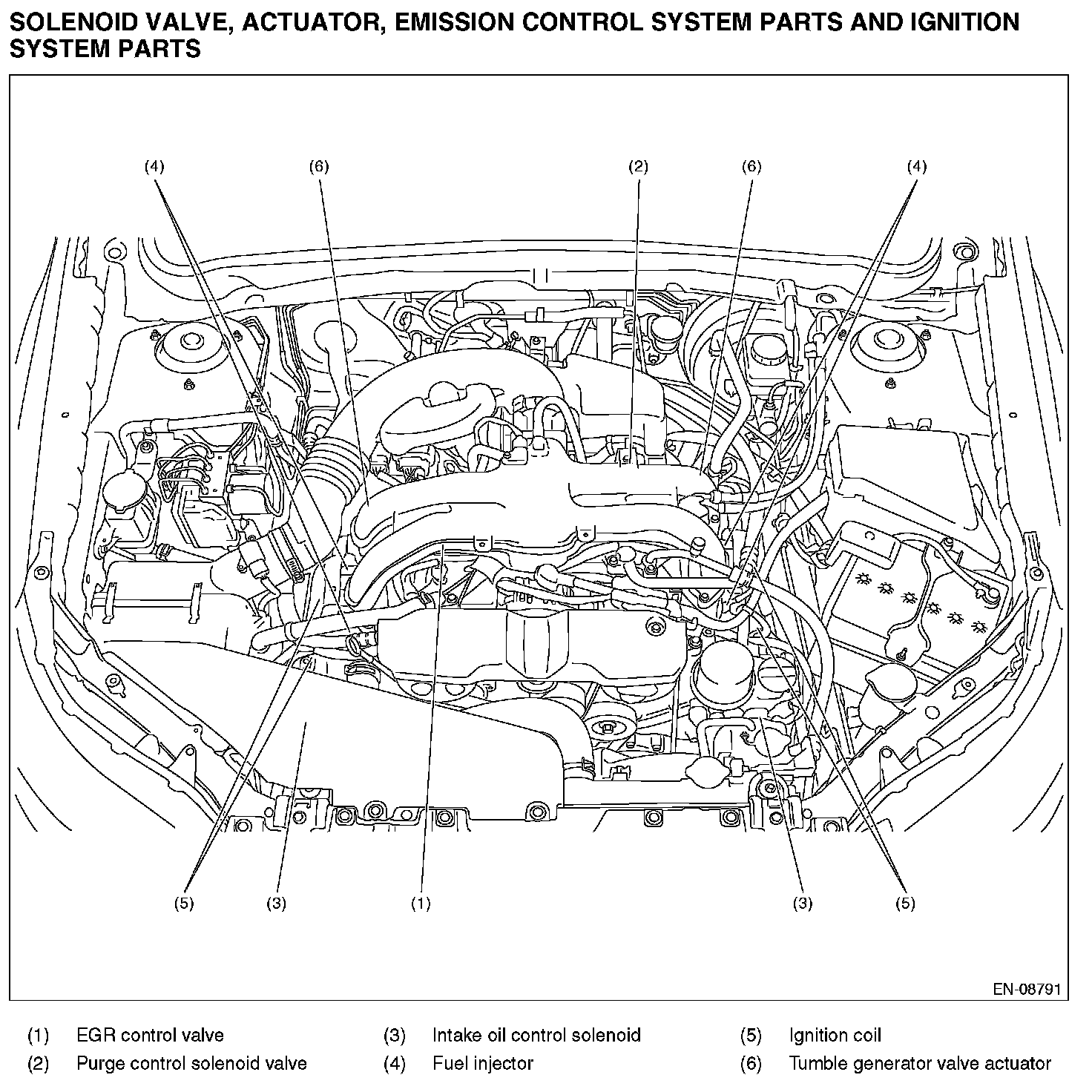

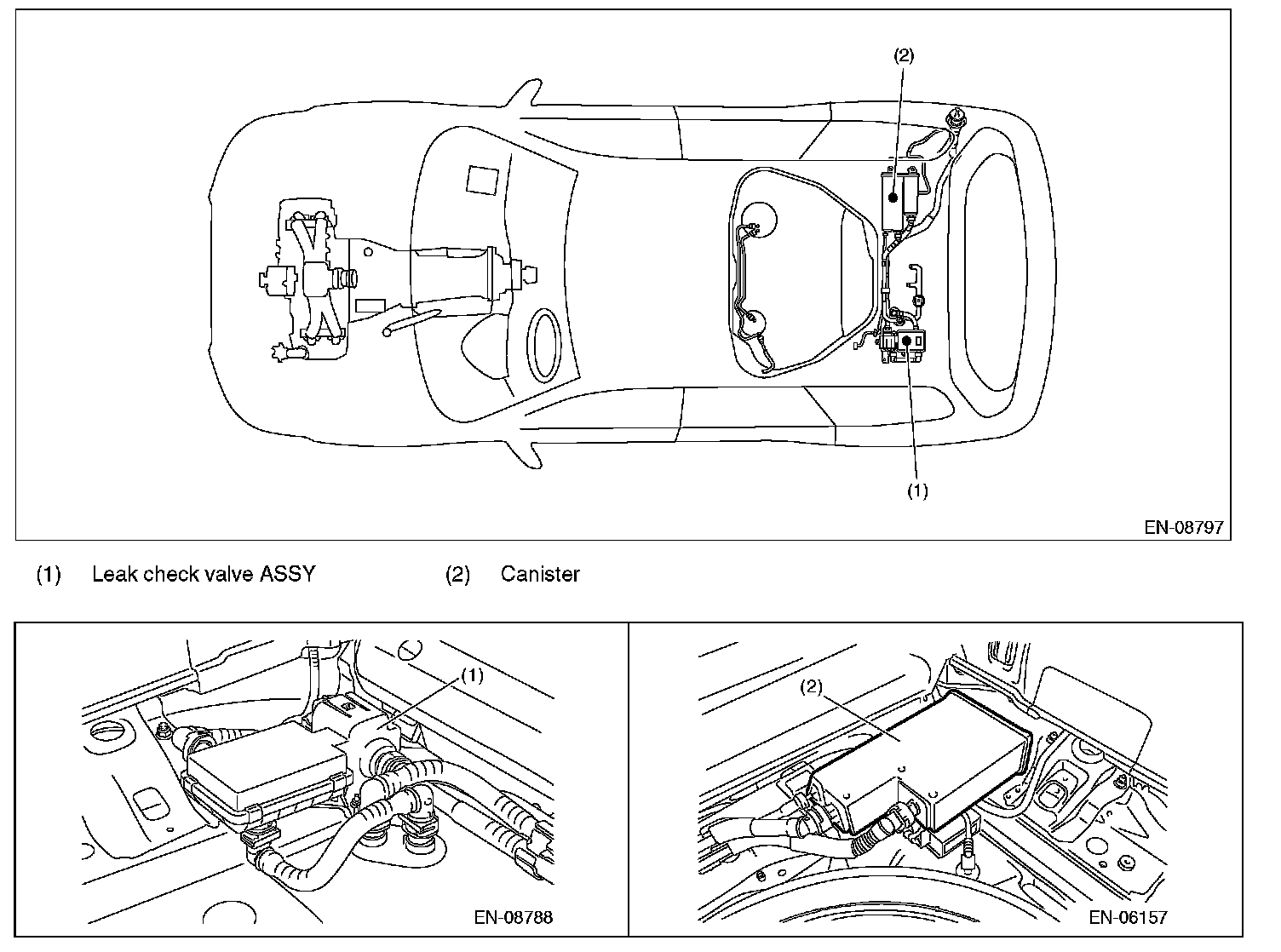

3. SOLENOID VALVE, ACTUATOR, EMISSION CONTROL SYSTEM PARTS AND IGNITION SYSTEM PARTS
