Wastegate Solenoid: Service and Repair

Wastegate Control Solenoid Valve

REMOVAL

1. Disconnect the ground cable from battery.






2. Remove the radiator sub fan motor assembly.

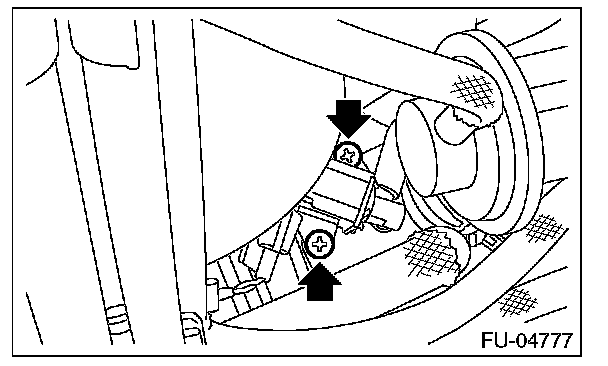

3. Remove the screws which hold the wastegate control solenoid valve to the intake duct.






4. Lift up the vehicle.
5. Remove the under cover.

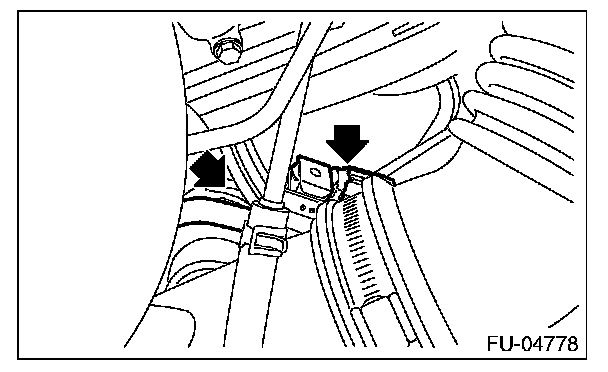

6. Disconnect the connector and air control hose from the wastegate control solenoid valve, and remove the wastegate control solenoid valve from the intake duct.






INSTALLATION

Install in the reverse order of removal.

NOTE:
- Use new O-rings.
- When tightening the boost control solenoid valve, check that it is securely seated.

Tightening torque: 4 N.m (0.4 kgf-m, 3.0 ft-lb)
