Transmission Case
Transmission CaseREMOVAL
1) Remove the transmission assembly from the vehicle.
2) Remove the air breather hose.
3) Remove the transmission harness.
4) Remove the secondary speed sensor.
5) Remove the inhibitor switch.
6) Remove the extension case.
7) Remove the rear drive shaft.
8) Remove the transfer clutch assembly.
9) Remove the transfer reduction driven gear assembly.
10) Remove the intermediate case.
11) Remove the forward clutch assembly.
12) Remove the reduction driven gear.
13) Remove the oil pan and control valve body.
NOTE:
When removing the control valve body, also remove the pressure pipe if it is attached on the case.

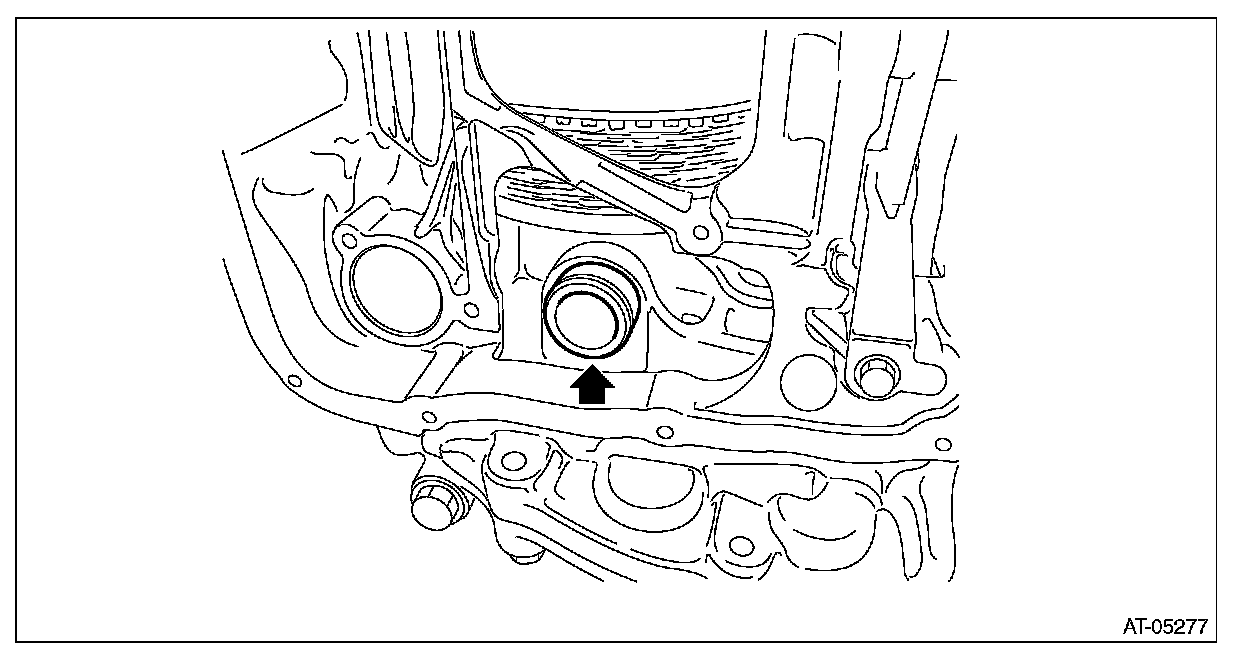

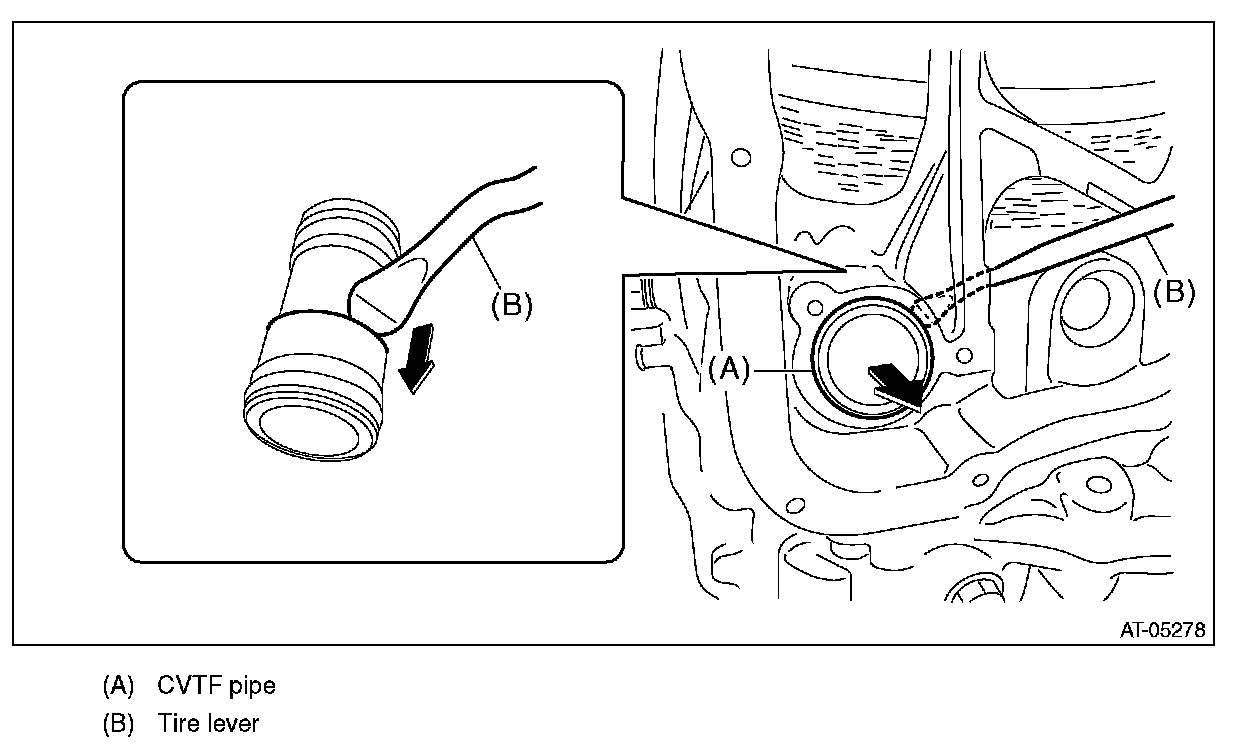

14) Remove the CVTF pipe using a tire lever etc.
NOTE:
Remove by hooking the stepped portion of CVTF pipe with a tire lever etc.

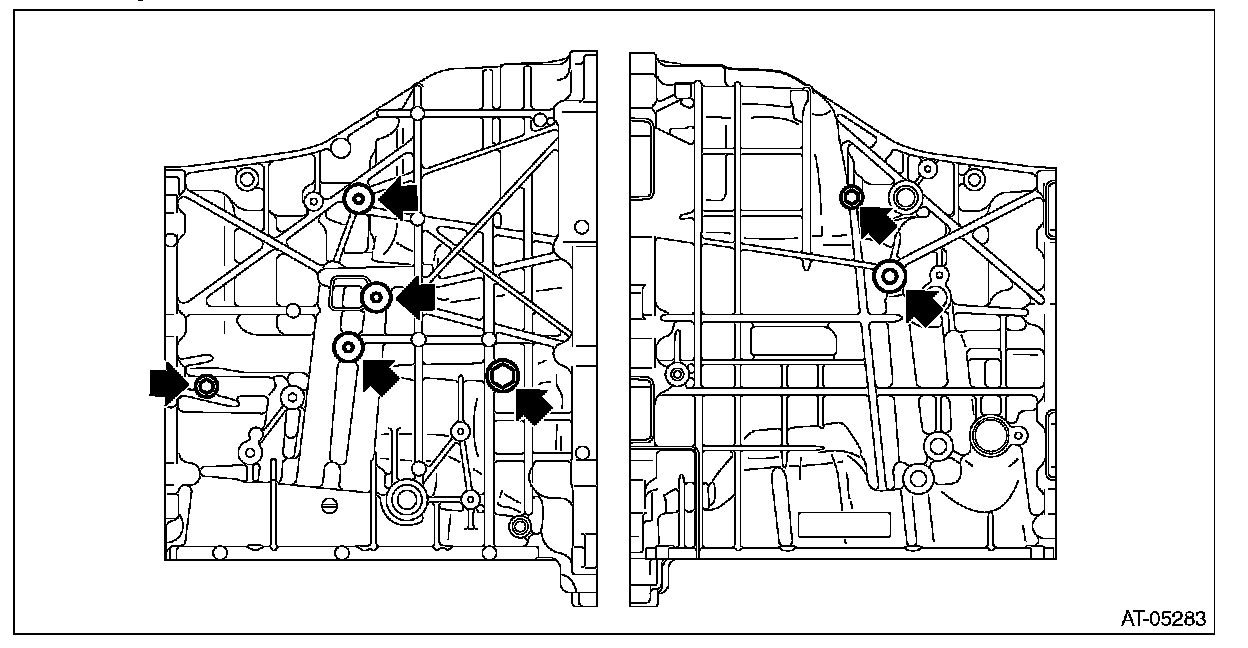

15) Remove the transmission case.
NOTE:
The total number of transmission case mounting bolts is 15.
16) Remove the O-ring of lubrication pipe.
17) Remove the control device system.
INSTALLATION
1) Clean the mating surface of transmission case and converter case.
2) Install the control device system.
3) Install the O-ring to the lubrication pipe.
NOTE:
^ Use new O-rings.
^ Apply CVTF to the O-ring.

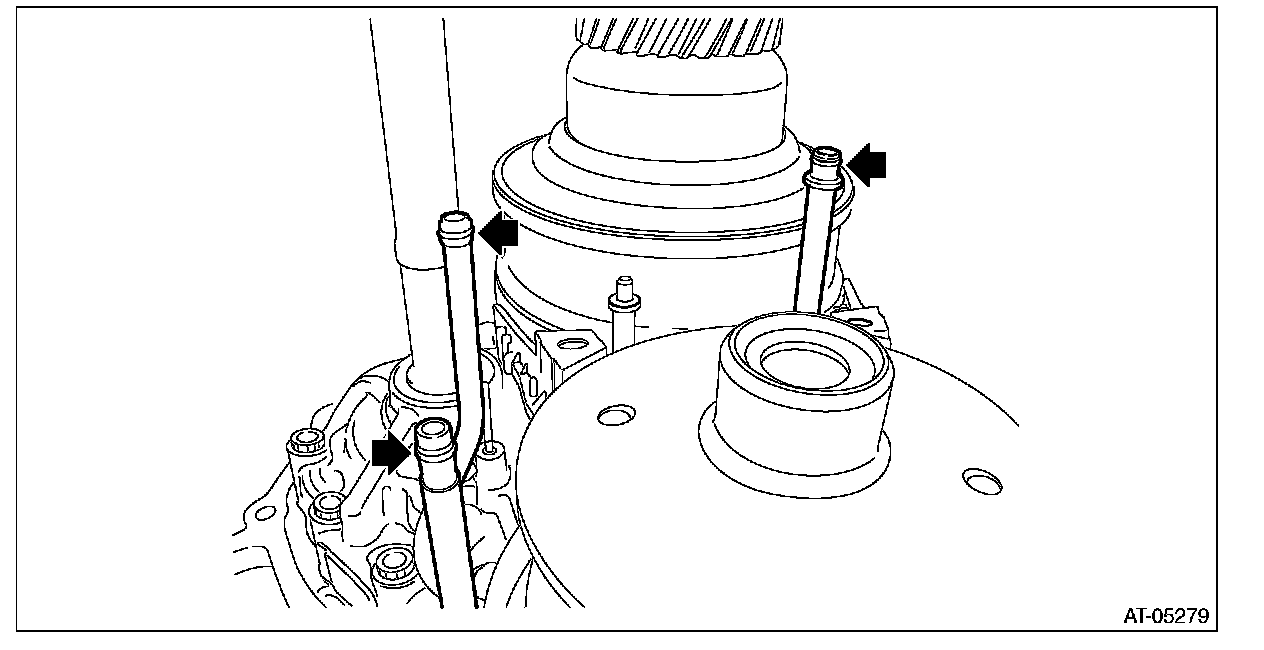

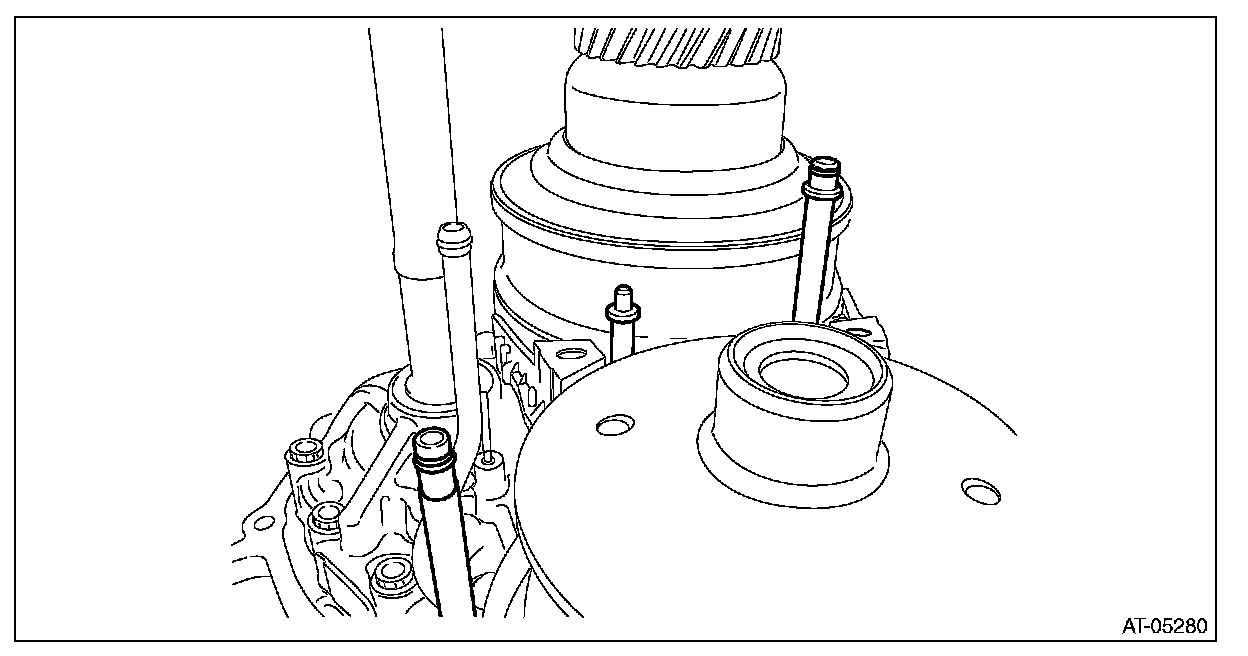

4) Make sure the lubrication pipe and support rod are in vertical position.
5) Apply liquid gasket seamlessly to the mating surface of transmission case.
Liquid gasket:
THREE BOND 1215 (Part No. 004403007) or equivalent
6) Install the transmission case.
CAUTION:
If the transmission case gets in contact with the lubrication pipe and support rod, do not install the transmission case forcibly.
NOTE:
^ Install while checking the lubrication pipe and support rod is being inserted properly into transmission case.
^ If installing the transmission is difficult, check if the lubrication pipe and support rod are bent.
^ The total number of transmission case mounting bolts is 15.
Tightening torque:
41 Nm (4.2 kgf-m, 30.2 ft-lb)
7) Install the O-ring to CVTF pipe.
NOTE:
^ Use new O-rings.
^ Apply CVTF to the O-ring.

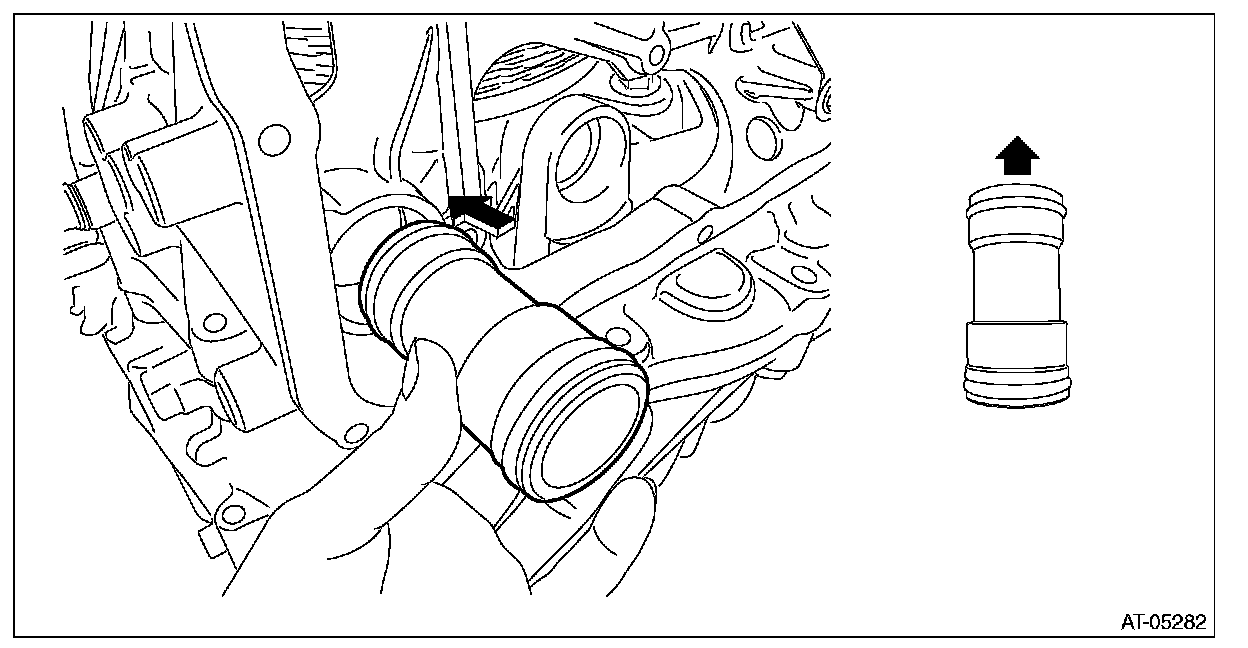

8) The smaller opening of CVTF pipe should be inserted to transmission.
NOTE:
After installing, make sure the CVTF pipe does not stick out of transmission case.
9) Install the reduction driven gear.
10) Install the forward clutch assembly.
11) Install the intermediate case.
12) Install the transfer reduction driven gear assembly.
13) Install the transfer clutch assembly.
14) Install the rear drive shaft.
15) Install the extension case.
16) Install the inhibitor switch.
17) Install the secondary speed sensor.
18) Install the transmission harness.
19) Install the control valve body and oil pan.
20) Install the air breather hose.
21) Install the transmission assembly to the vehicle.
DISASSEMBLY

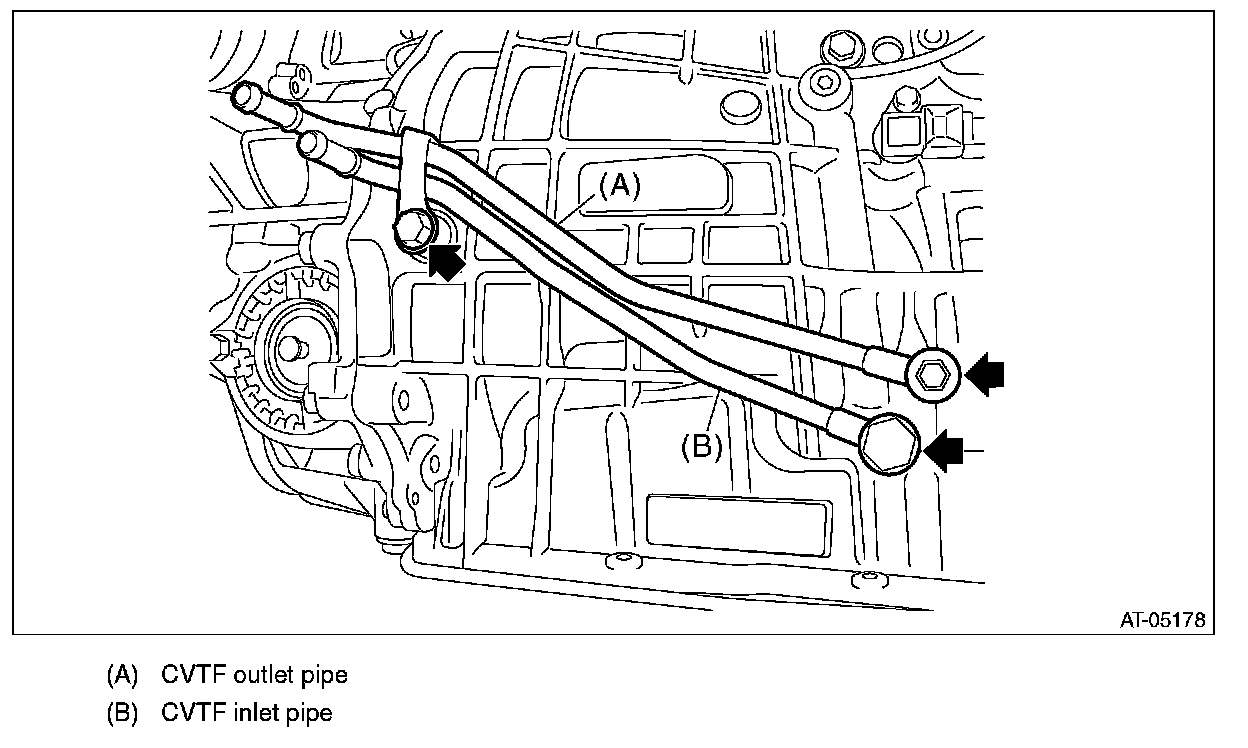

1) Remove the CVTF inlet pipe and CVTF outlet pipe.
2) Remove all plugs from the transmission case.

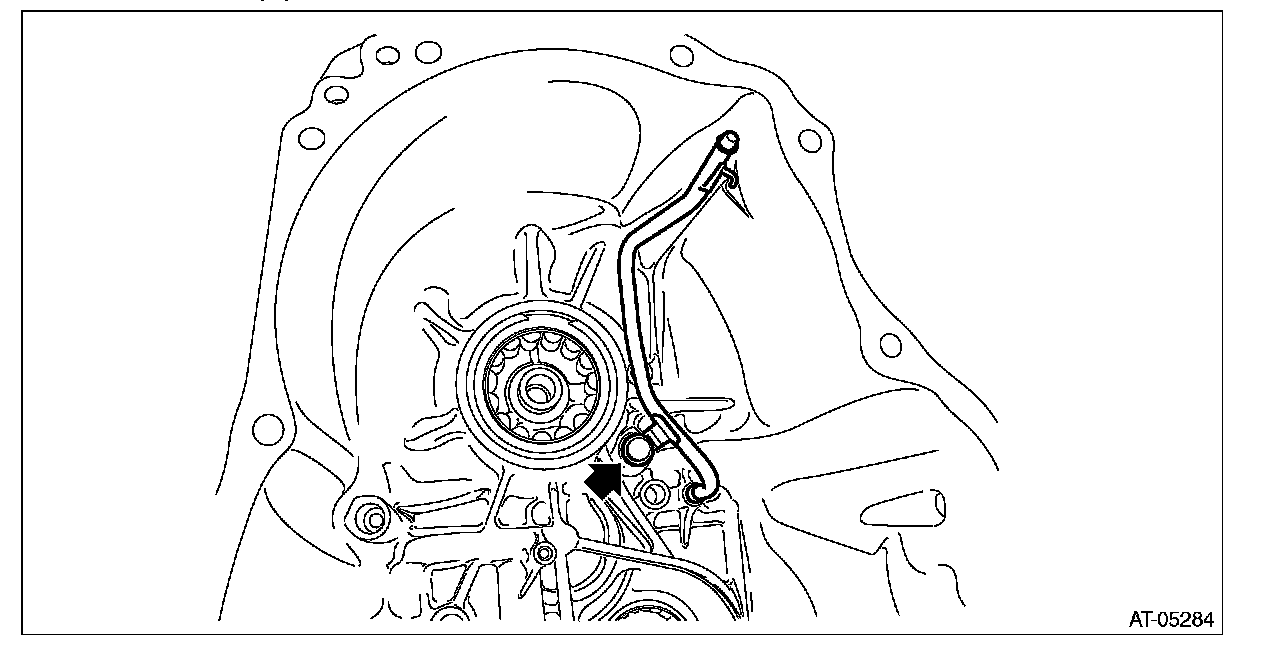

3) Remove the lubrication pipe.
4) Remove the oil seal using a screwdriver wrapped with cloth etc.

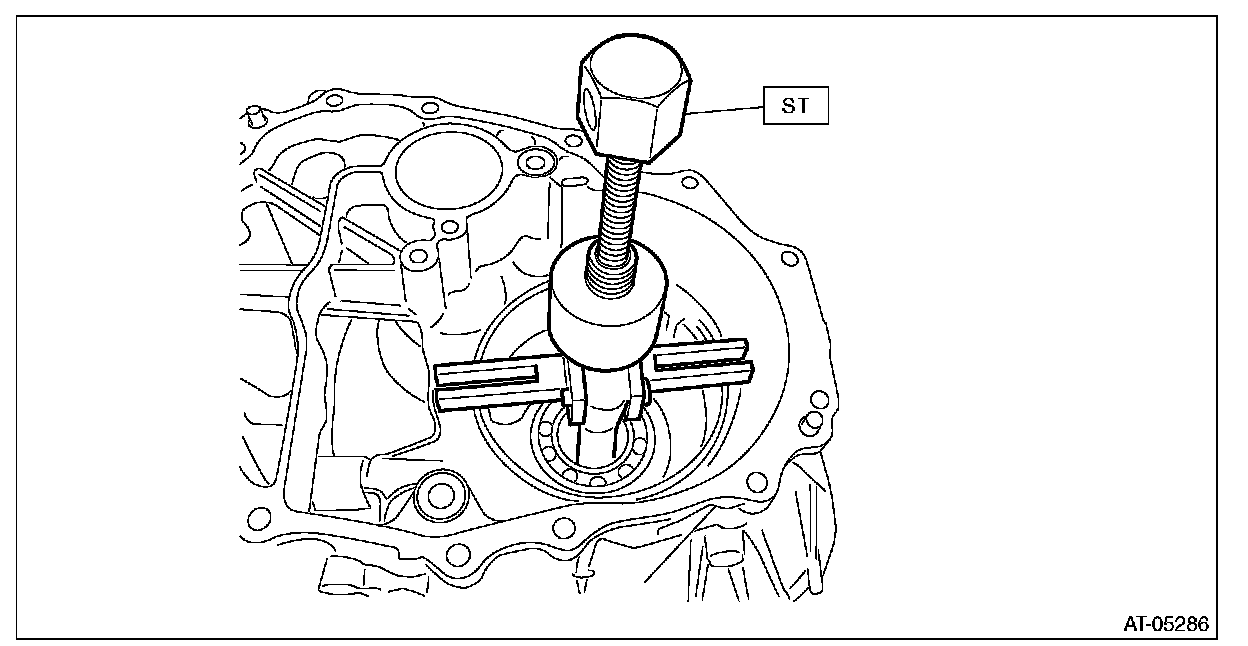

5) Remove the ball bearing from reduction driven gear using ST.
ST 398527700 PULLER ASSY

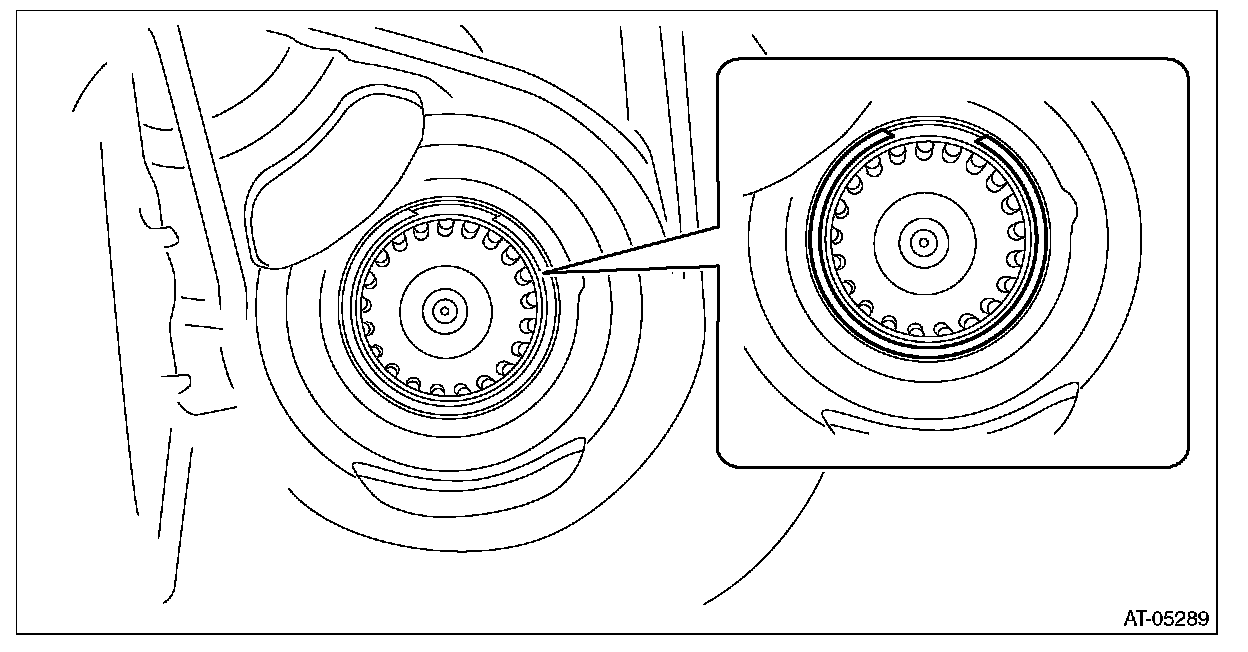

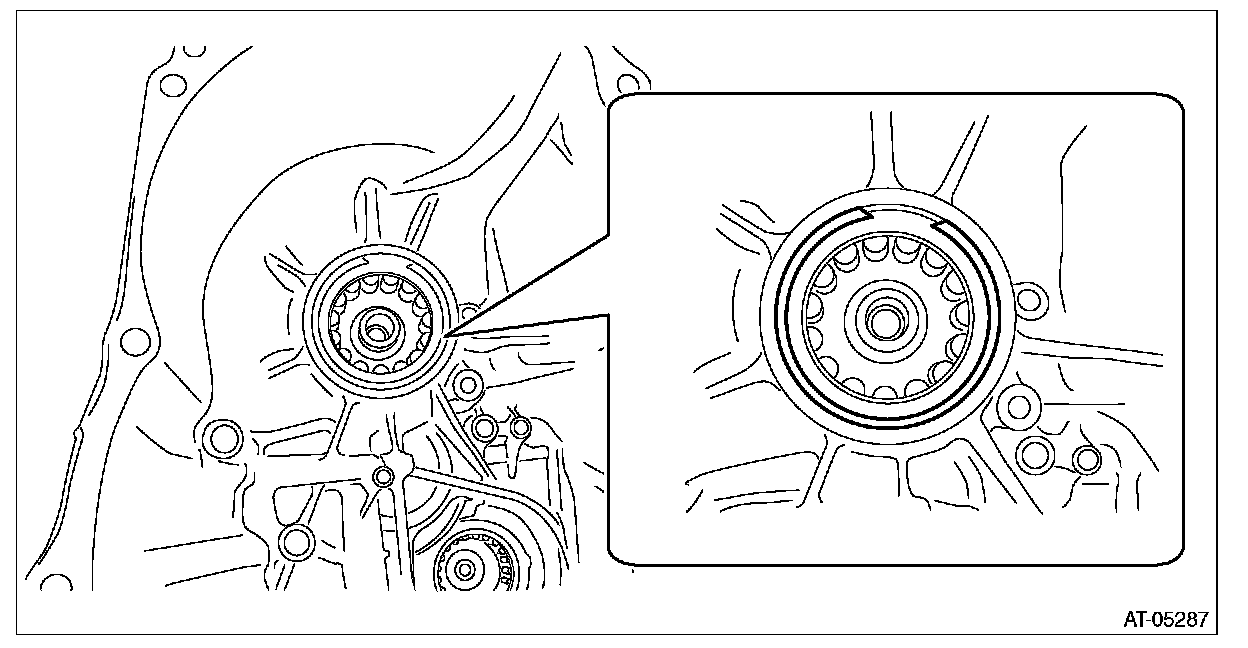

6) Remove the snap ring on primary pulley side.
7) Using the ST, remove the roller bearing on primary pulley side.
NOTE:
Warm up the bearing area of transmission case using a drier or heat gun.
ST 398527700 PULLER ASSY

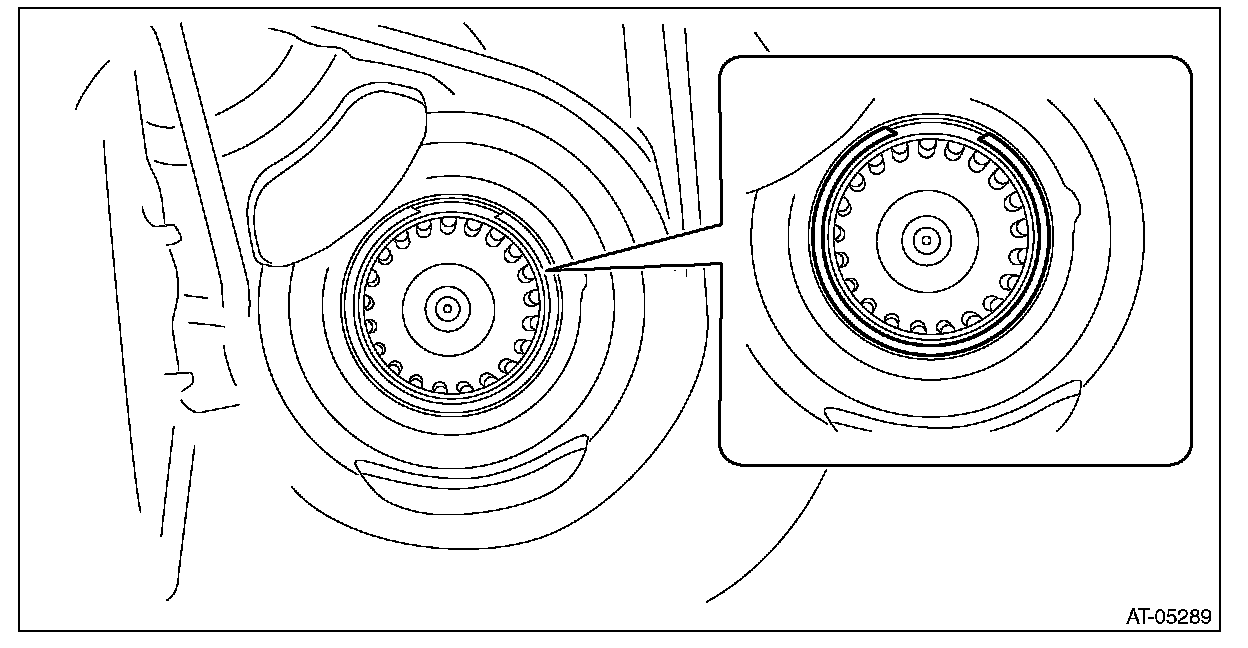

8) Remove the snap ring on secondary pulley side.
9) Using the ST, remove the roller bearing on secondary pulley side.
NOTE:
Warm up the bearing area of transmission case using a drier or heat gun.
ST 398527700 PULLER ASSY
ASSEMBLY

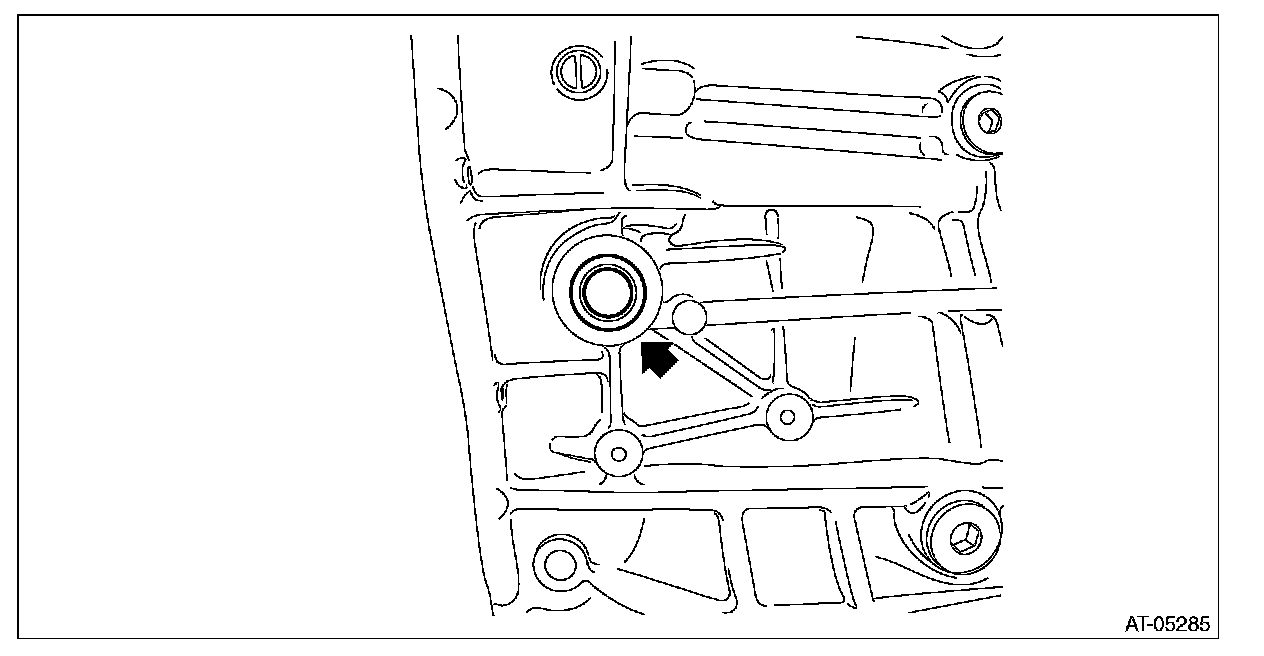

1) Using the ST, install the oil seal.
ST 18657AA000 INSTALLER

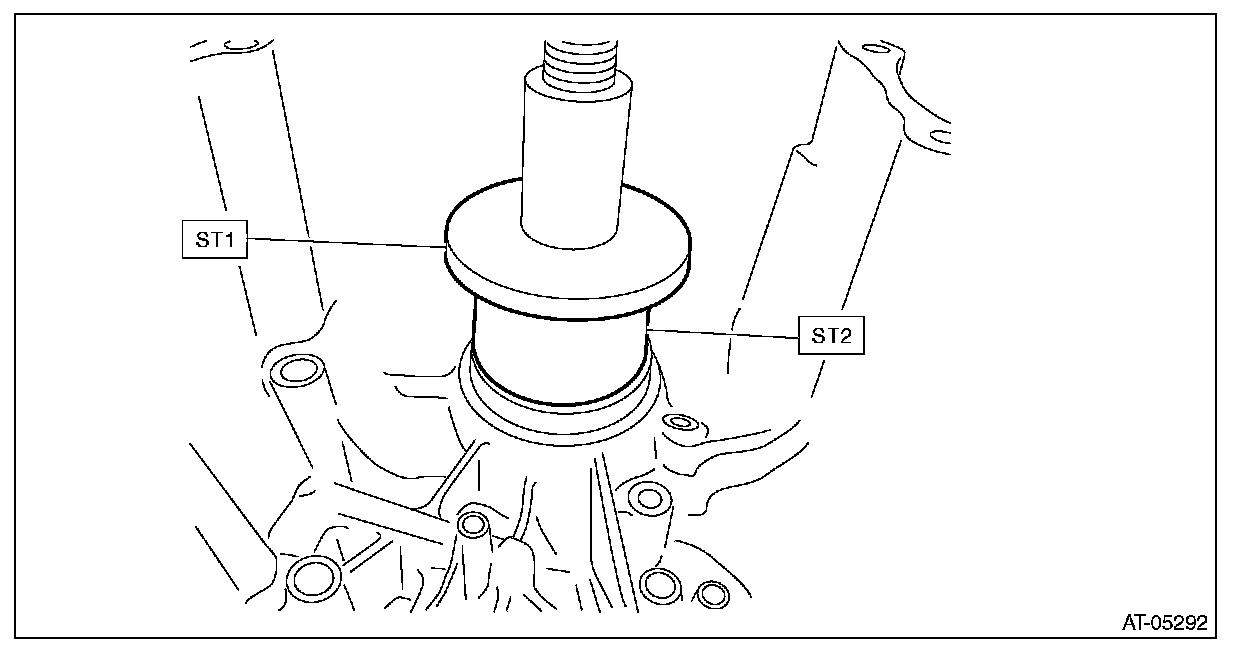

2) Using ST1 and ST2, install the ball bearing on the reduction gear side.
NOTE:
Use a new ball bearing.
ST1 398177700 INSTALLER
ST2 499755602 PRESS SNAP RING
3) Using ST1 and ST2, install the roller bearing on primary pulley side.
NOTE:
^ Use a new roller bearing.
^ Make adjustment so that PRESS gets in contact with the center of ST2.
ST1 398177700 INSTALLER
ST2 20299AG010 PRESS SNAP RING
4) Install the snap ring on primary pulley side.
NOTE:
Use new snap rings.

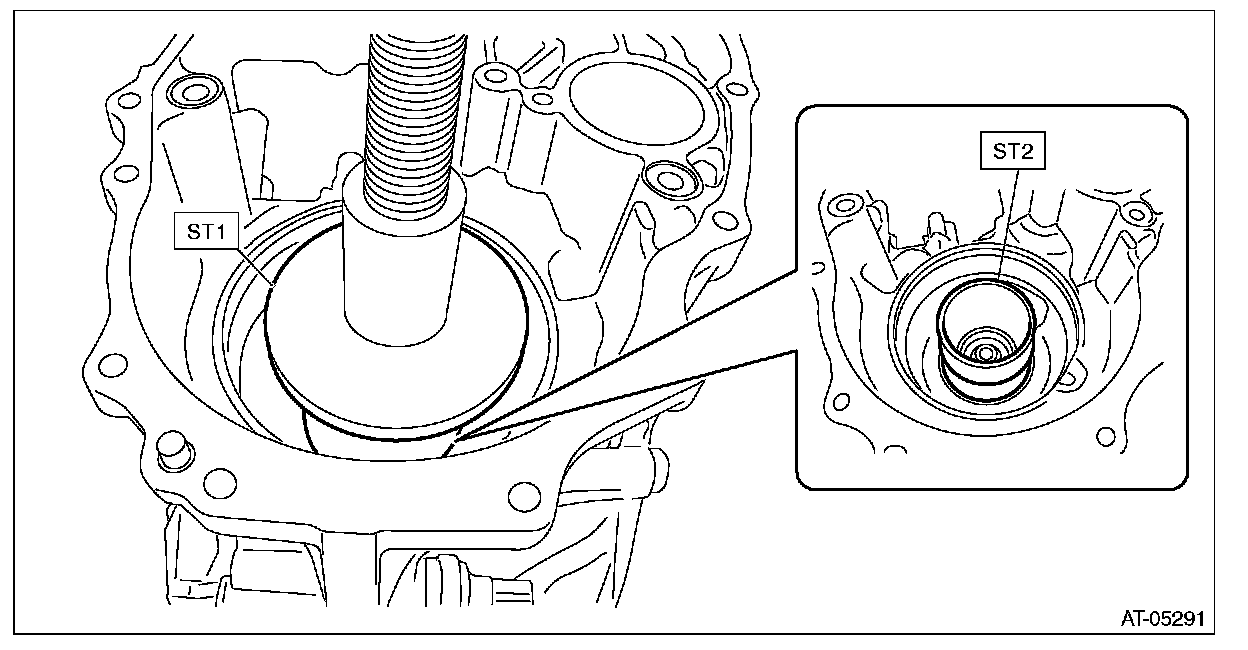

5) Using ST1 and ST2, install the roller bearing on secondary pulley side.
NOTE:
^ Use a new roller bearing.
^ Make adjustment so that PRESS gets in contact with the center of ST2.
ST1 398177700 INSTALLER
ST2 499755602 PRESS SNAP RING
6) Install the snap ring on secondary pulley side.
NOTE:
Use new snap rings.

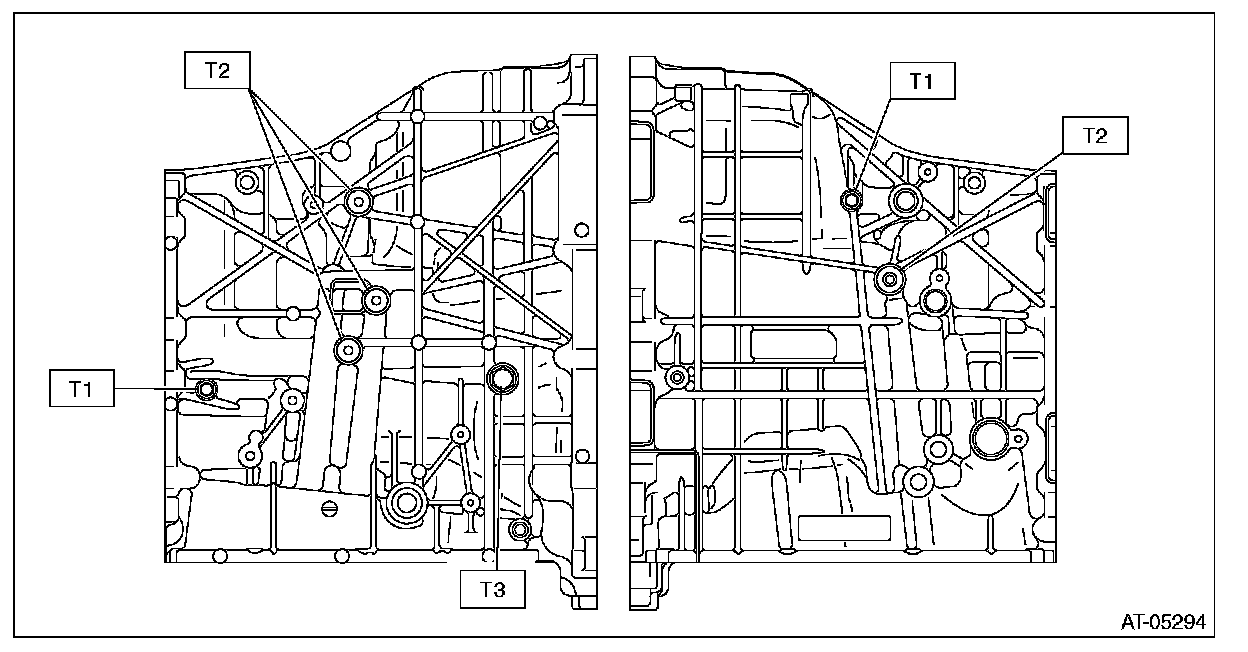

7) Install all plugs.
NOTE:
Use new gaskets and O-rings.
Tightening torque:
T1: 13 Nm (1.3 kgf-m, 9.6 ft-lb)
T2: 25 Nm (2.5 kgf-m, 18.4 ft-lb)
T3: 35 Nm (3.5 kgf-m, 25.8 ft-lb)

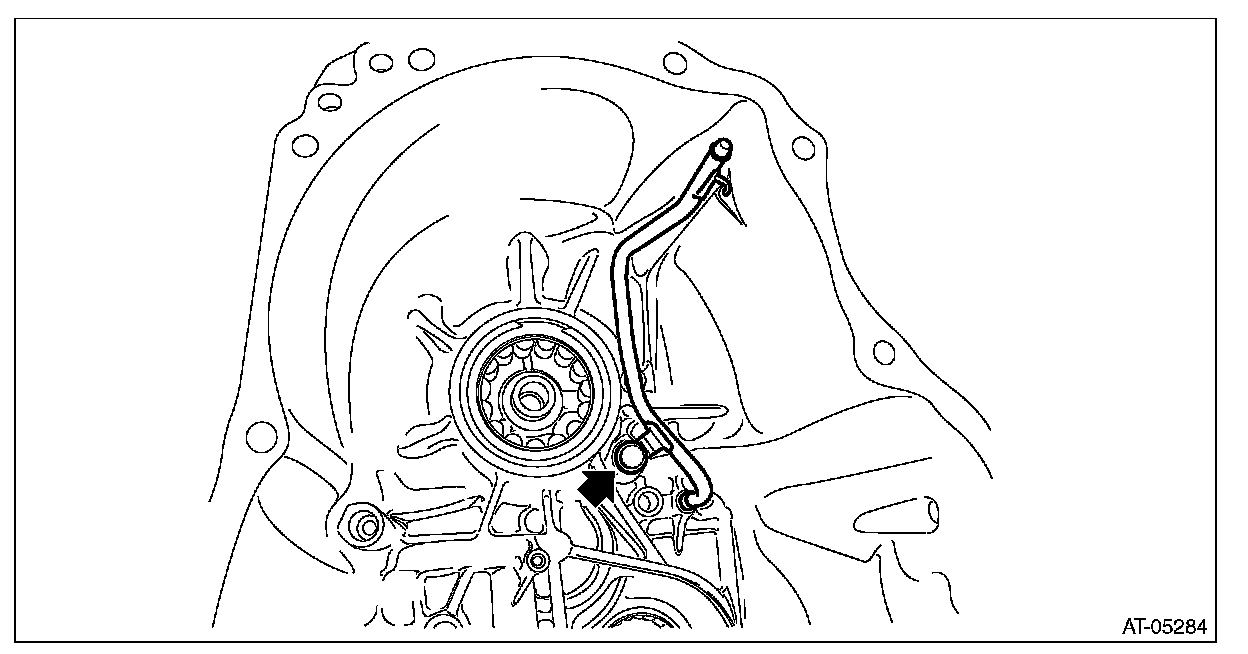

8) Install the lubrication pipe and O-ring.
NOTE:
^ Use new O-rings.
^ Apply CVTF to the O-ring.
Tightening torque:
16 Nm (1.6 kgf-m, 11.8 ft-lb)

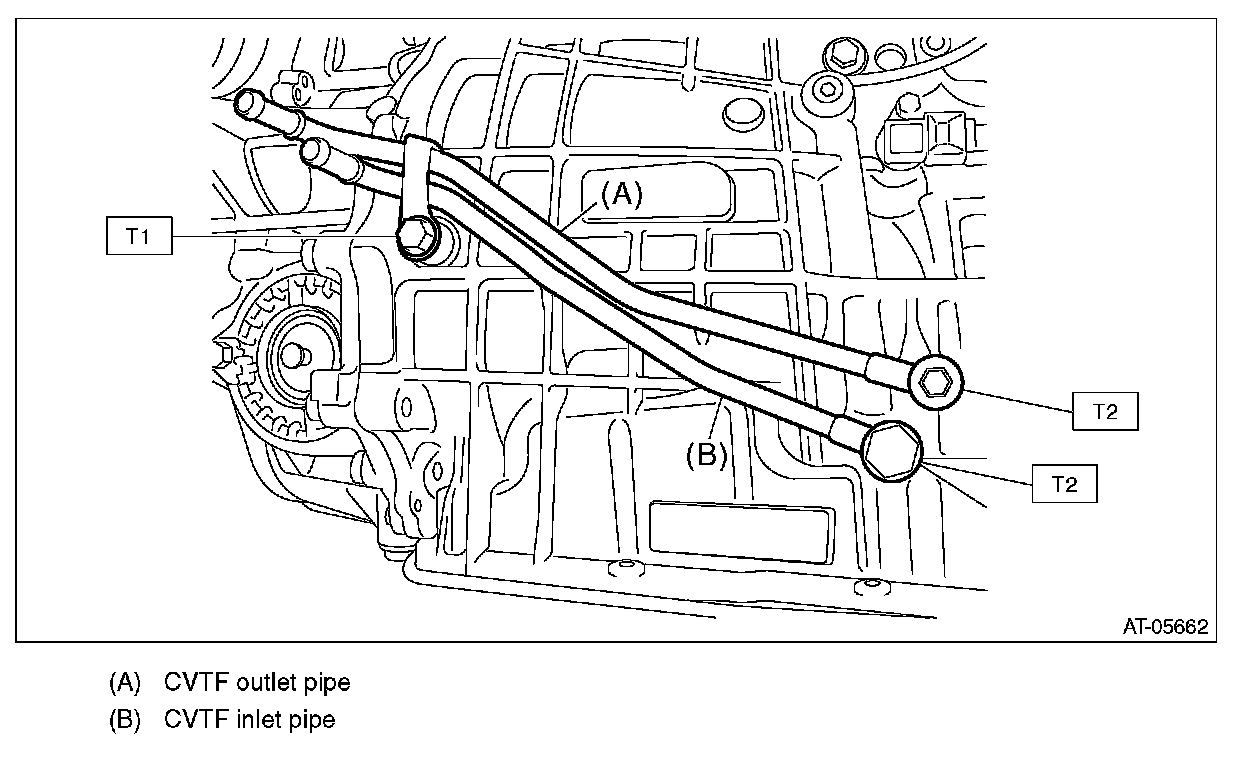

9) Install the CVTF inlet pipe and CVTF outlet pipe.
NOTE:
Use a new gasket.
Tightening torque:
T1: 16 Nm (1.6 kgf-m, 11.8 ft-lb)
T2: 40 Nm (4.1 kgf-m, 29.5 ft-lb)
INSPECTION
^ Check the transmission case for damage.
^ Check for leakage of CVTF from the connection between converter case and transmission case.
^ Check for leakage of CVTF from the connection between intermediate case and transmission case.
^ Check the lubrication pipe for bend or damage.
^ Check the bearing for smooth rotation.
^ Check the bearing for seizure or wear.
ADJUSTMENT
NOTE:
When replacing the transmission case with a new part, perform the following check and adjustment for the selection.
^ Select the thrust bearing for the forward clutch assembly.
^ Select the snap ring for the reduction gear.
