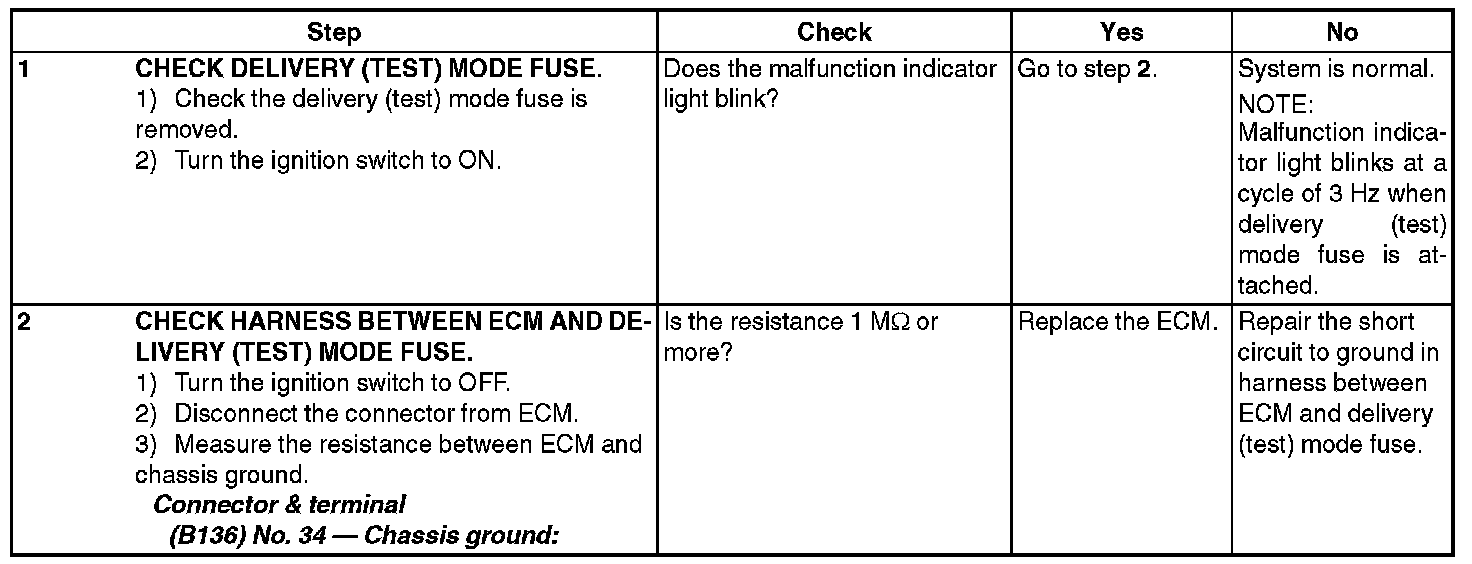

Malfunction Indicator Light Remains Blinking
MALFUNCTION INDICATOR LIGHT REMAINS BLINKINGDIAGNOSIS:The delivery (test) mode fuse circuit is short-circuited to ground.
TROUBLE SYMPTOM:Malfunction indicator light blinks when delivery (test) mode fuse is not connected.

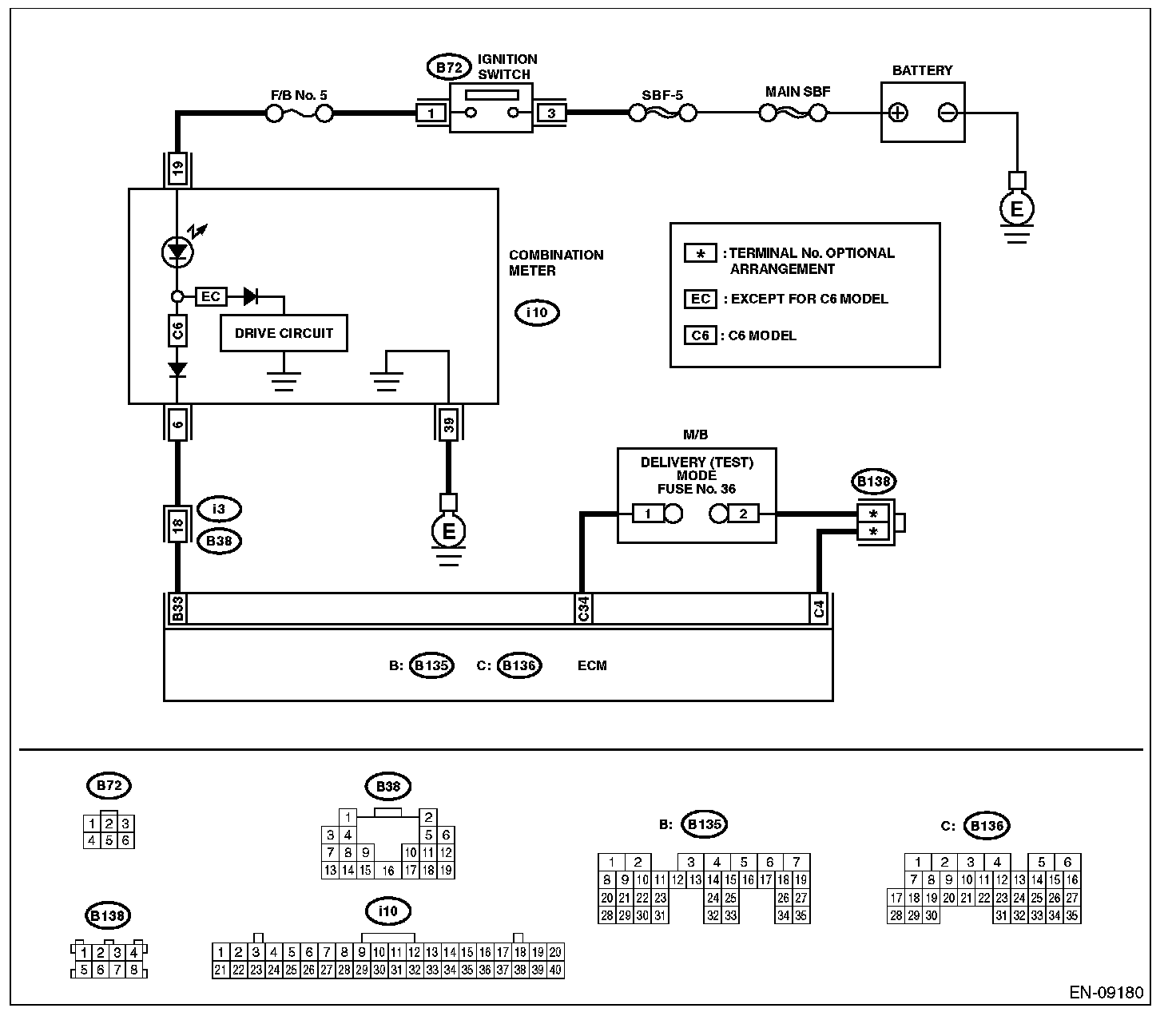

WIRING DIAGRAM:
