Fuel Injector: Service and Repair
Fuel InjectorREMOVAL
1. Release the fuel pressure.

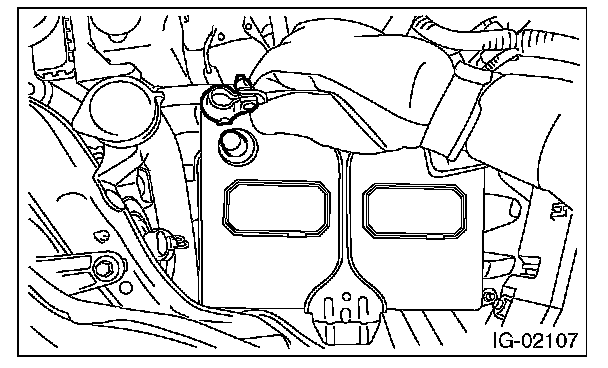

2. Disconnect the ground cable from battery.
3. Open the fuel filler lid and remove the fuel filler cap.
4. Remove the intake manifold.

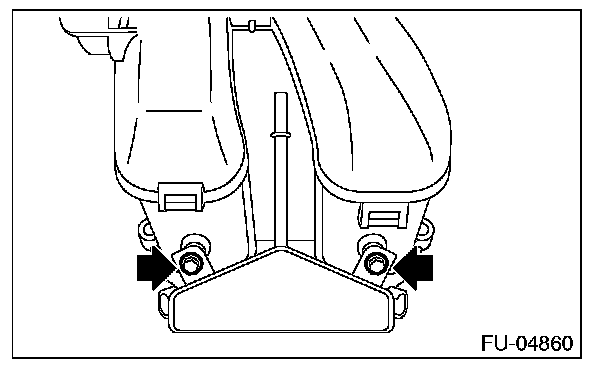

5. Remove the bolts securing the fuel gallery to intake manifold.

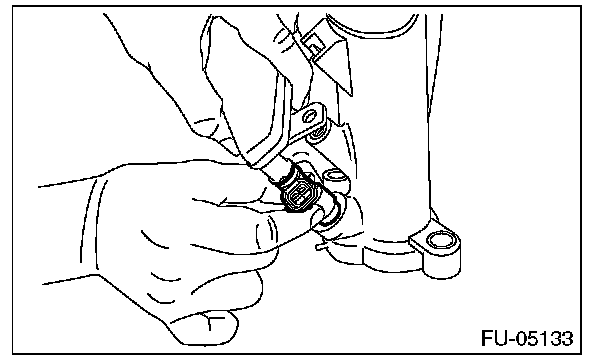

6. Remove the fuel injector while lifting up the fuel gallery.
INSTALLATION
Install in the reverse order of removal.
NOTE: Use new O-rings, rubbers and seal rings.
Tightening torque: 19 N.m (1.9 kgf-m, 14.0 ft-lb)
