Intake Air Plenum: Service and Repair

Air Intake Boot

REMOVAL

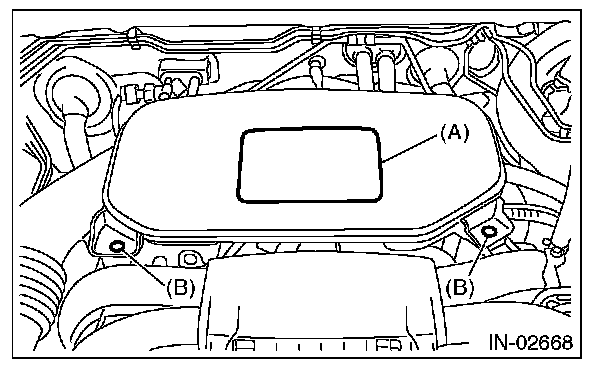

1. Remove the cover (A) and clip (B) from air intake boot assembly.

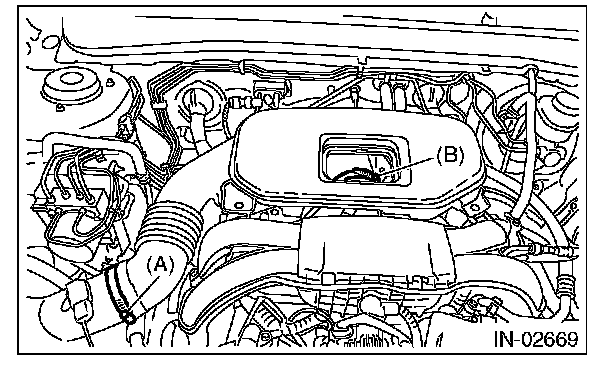

2. Loosen the clamp (A) which connects the air intake boot assembly and air cleaner case.
3. Loosen the clamp (B) which connects the air intake boot assembly and throttle body.






4. Disconnect the blow-by hose and remove the air intake boot assembly.

INSTALLATION

Install in the reverse order of removal.

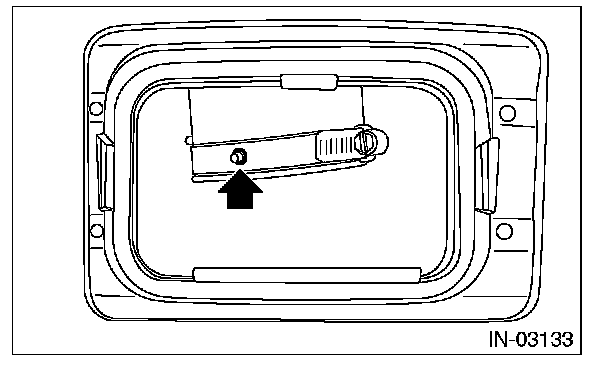

NOTE: Align the clamp hole with the protrusion of the air intake boot assembly.






Tightening torque: 3 N.m (0.3 kgf-m, 2.2 ft-lb)
