Disassembly
Steering ColumnDISASSEMBLY 1)
Remove the
steering column cover.
(1)
Lower the lever of the
steering column.
(2)

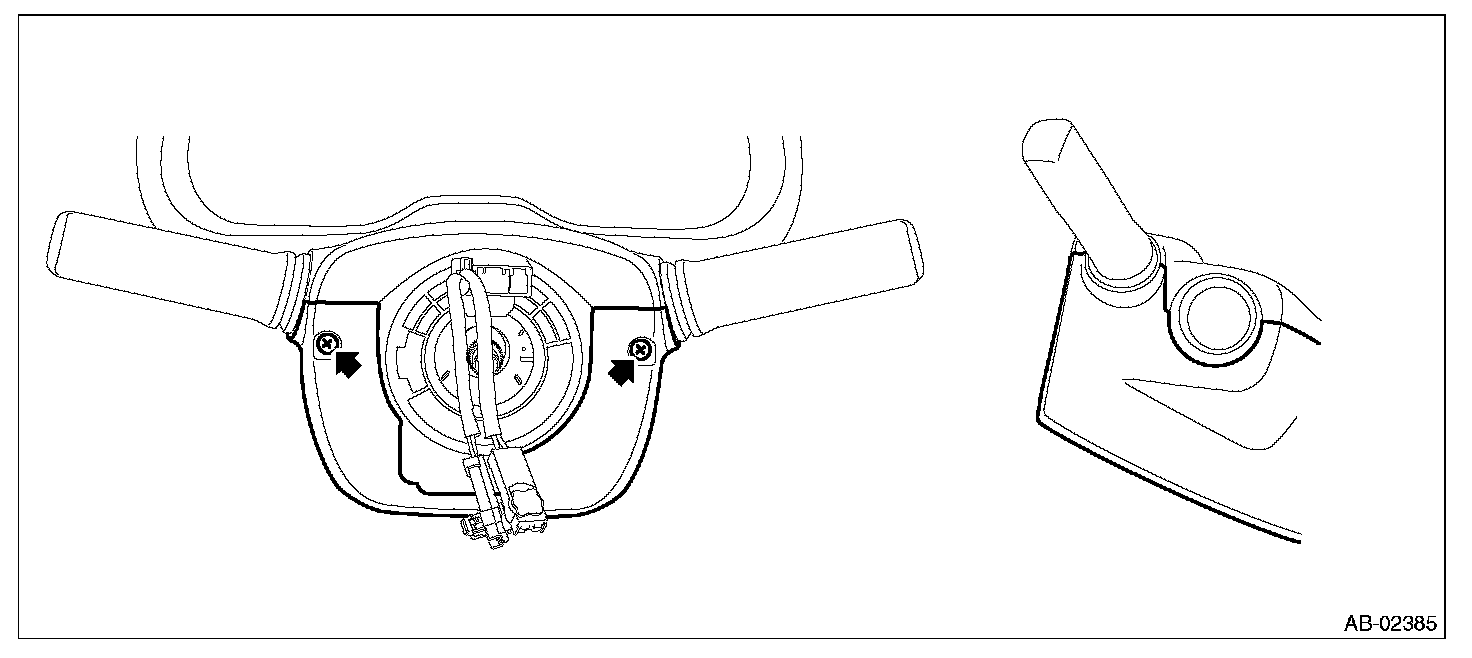

Release the claws and remove the screws, then detach the
steering column lower cover.
(3)

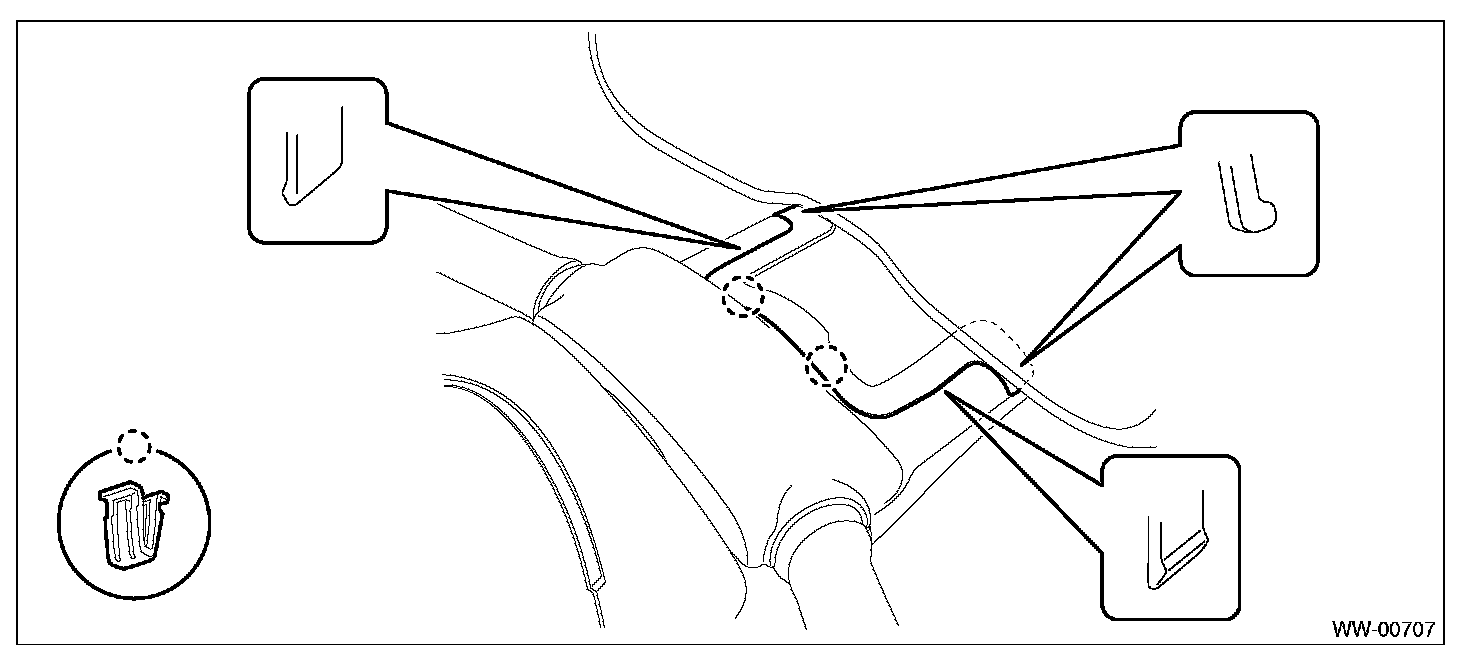

Separate the
steering column upper cover and
steering upper cover, and remove the steering column upper cover.
2)

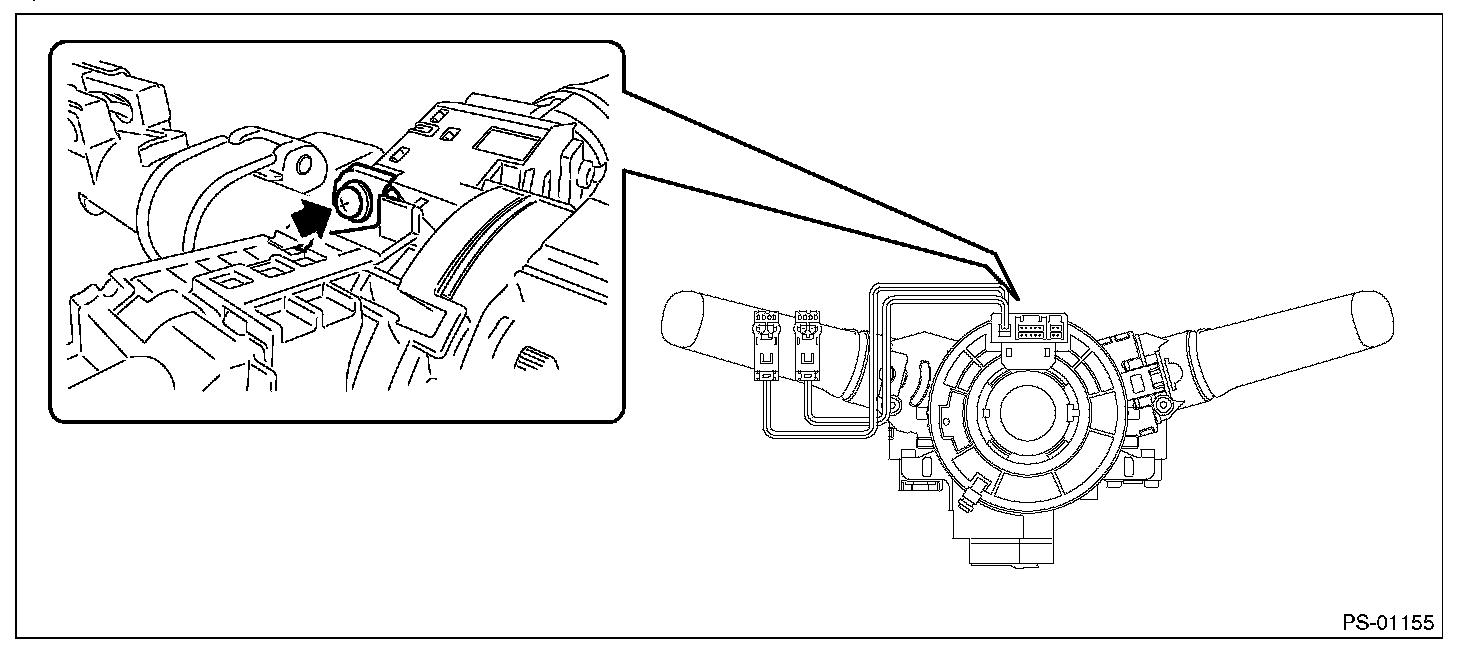

Remove the screw and remove the combination switch.
