Installation

Steering Wheel

INSTALLATION

WARNING:
Always refer to "Airbag System" before performing service on the airbag modules.

1) Align the center position of the roll connector.
2) Install each part in the reverse order of removal.

NOTE:
Align the alignment marks on the steering wheel and steering shaft.

Tightening torque:
Steering wheel: 39 Nm (4.0 kgf-m, 28.8 ft-lb)

Clearance:
Column cover to steering wheel: 2 - 4 mm (0.08 - 0.16 in)

DISASSEMBLY

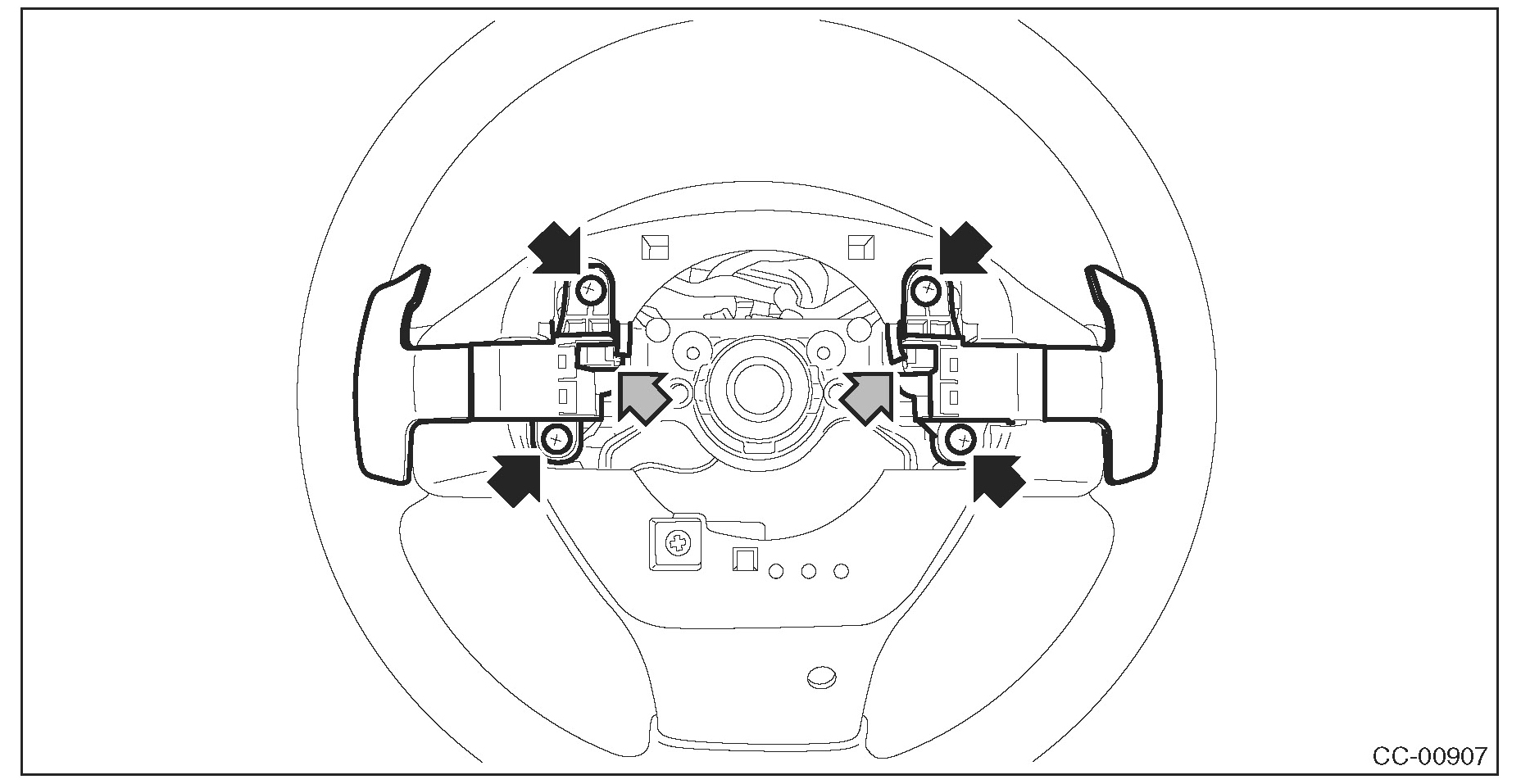

1) Remove the screw, disconnect the connector and remove the paddle shift switch. (Model with paddle shift)

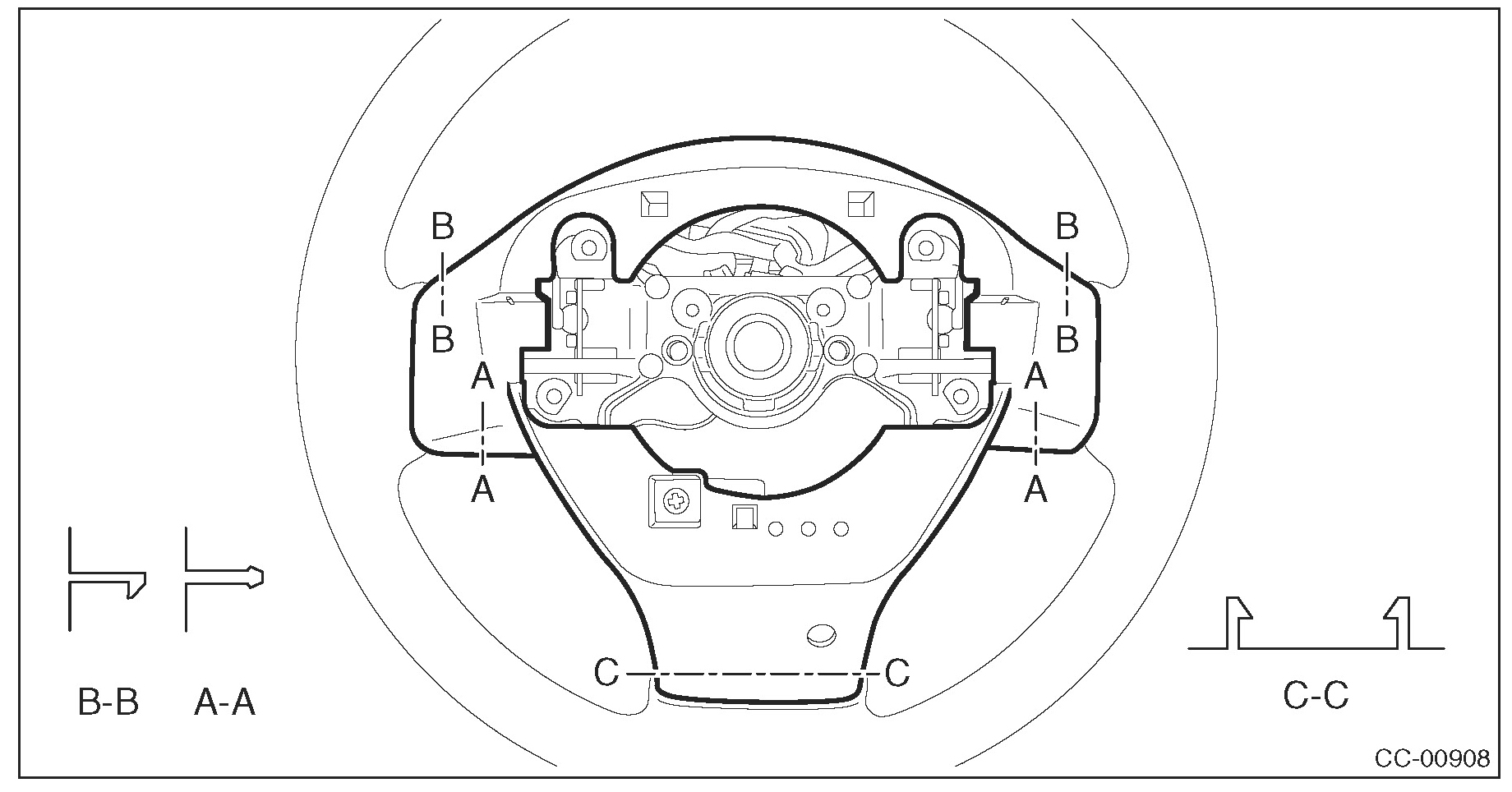

2) Disconnect the claws and then remove the lower cover.





3) Remove the screw to remove the cruise control command switch assembly.





ASSEMBLY

Assemble each part in the reverse order of disassembly.

Tightening torque:
Paddle shift: 1.7 Nm (0.17 kgf-m, 1.3 ft-lb)
