Courtesy Lamp: Service and Repair
Rear Gate LightREMOVAL 1.
Disconnect the ground cable from the battery.
2.

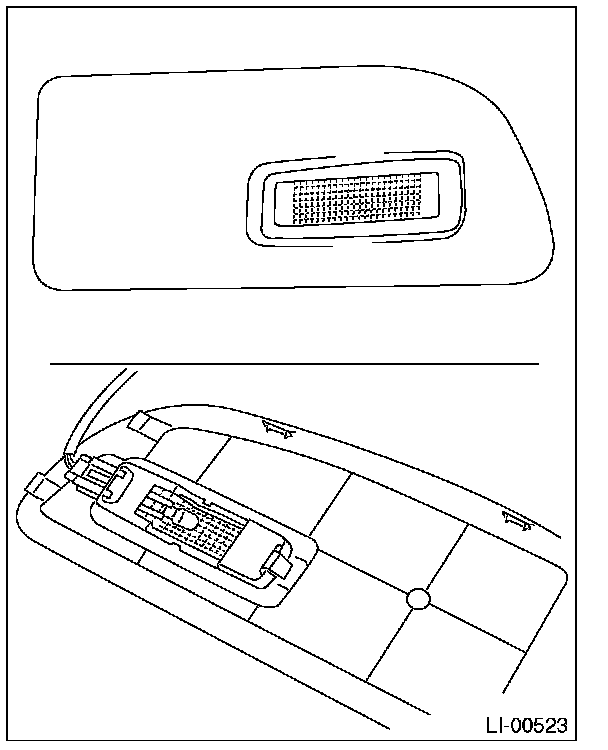

Remove the bulb inspection cover of rear gate trim, then disconnect the harness connectors.
3.

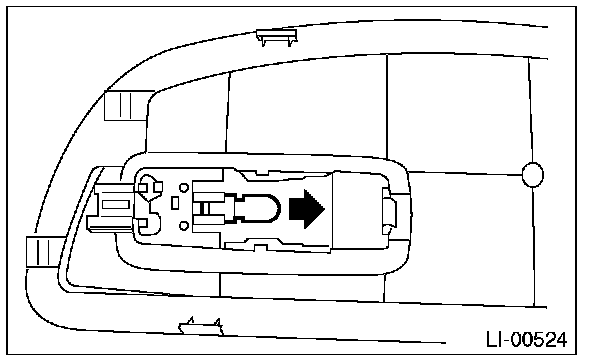

Remove the bulb.
INSTALLATIONInstall in the reverse order of removal.
