Dome Lamp: Service and Repair

Room Light

REMOVAL

1. MODEL WITHOUT REAR ENTERTAINMENT SYSTEM
1. Disconnect the ground cable from the battery.

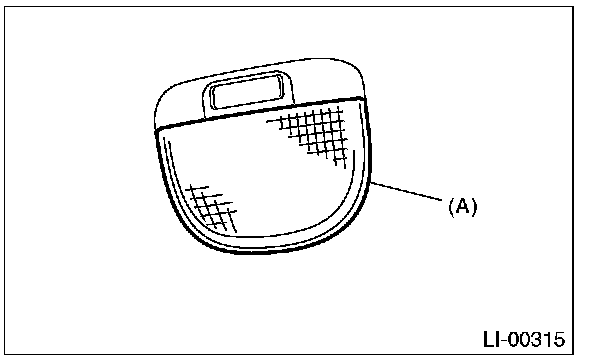

2. Remove the lens (A) and mounting screws (B).






3. Disconnect the harness connector and remove the room light.

2. MODEL WITH REAR ENTERTAINMENT SYSTEM
The room light bulb is integrated into the rear entertainment system as a single unit; therefore, refer to Rear Entertainment System for the removal procedure.

INSTALLATION
Install in the reverse order of removal.
